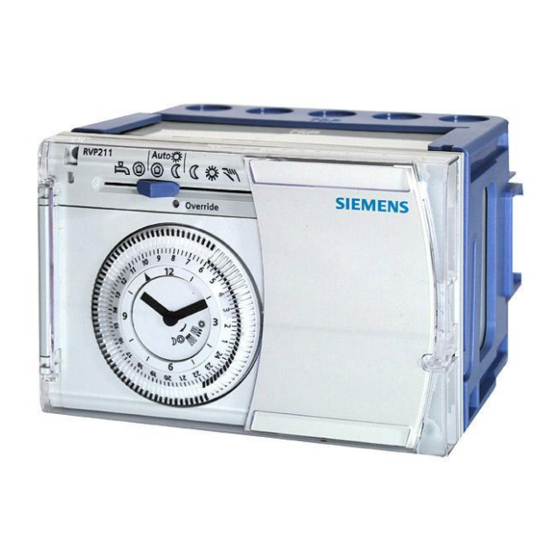

Siemens RVP201 Operating Instructions

Energy-efficient heating with
the RVP201/211 heating controller
Operating Instructions
You want to switch the heating on
1. Is the plant ready to operate? Check the mains
switch.
2. Check the time of day and – with the 7-day time
switch – the weekday. Make readjustments, if neces-
sary (refer to the following section).
3. Move the operating mode selector to the required
Auto mode.
You want to set the clock
The switching dial may only be turned clockwise, never
anti-clockwise!
1. First, make a coarse setting:
Turn the switching dial slowly in clockwise direction
until the current time of day reaches the time indicator
(with the 7-day dial, also observe the weekday).
2. Now make the correct setting:
Turn the large hand until the time of day is correct.
Tip: The change from wintertime to summertime, and vice
versa, must be made manually.
You want to heat in automatic mode
The controller has two Auto modes:
Automatic changeover between NORMAL tem-
perature and heating control OFF according to the
24-hour program.
Automatic changeover between NORMAL and
REDUCED temperature according to the 24-hour
program.
You want no heating for a certain
period of time
Move the operating mode selector to
switched off, but ready to operate.
Only with the RVP211: Select either
for control switched off, or
automatic d.h.w. heating, control switched off
Tip: Frost protection is ensured in all operating modes.
Meaning of LED "Override"
- "Override" flashes: A fault has occurred – refer to the
section covering operational faults
- "Override" steady on: Controller is controlled by the
room unit. The settings used are those made on the
room unit. There is no fault
You want to heat continuously
- No setback: Select operating mode
- Continuous setback: Select operating mode
Tip: Do not forget to reset the operating mode!
Your rooms are too cold or too warm
Especially in mild weather:
Readjust the room temperature with setting knob
point represents a room temperature change of 2 °C.
Especially in cold weather:
Readjust the slope of the heating curve with setting knob
- Room temperature too high: Reduce slope by about 0.2
- Room temperature too low: Raise slope by about 0.2
