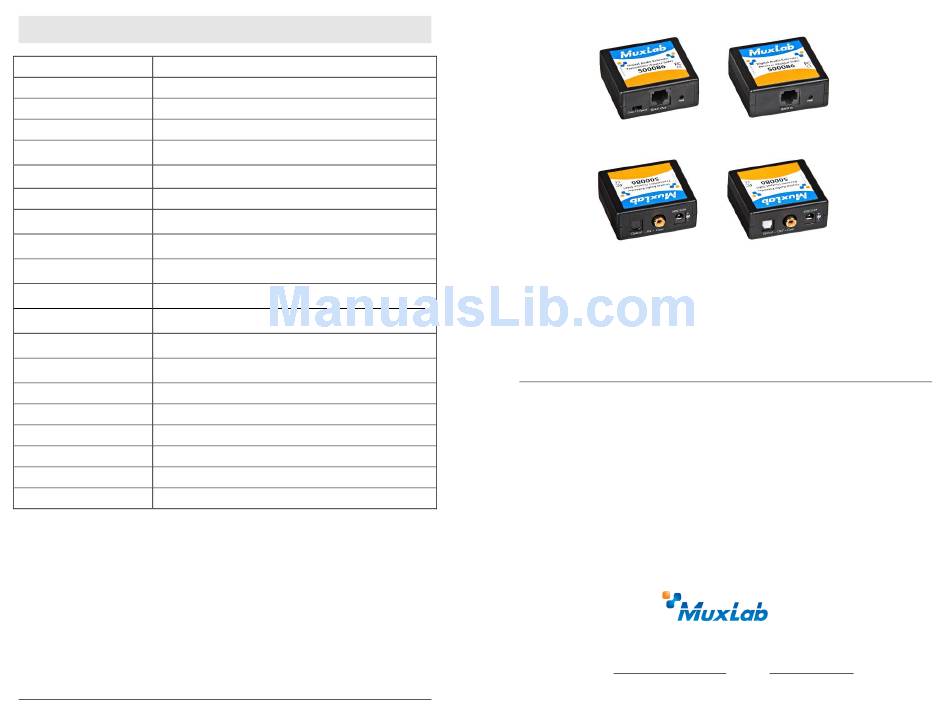

Specifications
Environment
Digital Audio
Standard Supported
LPCM, Dolby Digital® 5.1, DTS, and Dolby® True HD
Input / Output signal
S/PDIF coax cable or TOSLINK optic cable, input selectable.
Sampling rate
Up to 96kHz/24bits
Maximum distance between
500 ft. (150m)
unit
RCA, TOSLINK, POWER, RJ45 on each unit.
Connectors
Power requirement
1W max, 5V DC
S/PDIF spec
Coax 75 ohm with RCA connector,
level: 500mVp-p into 75 ohm
TOSLINK spec
Plastic optic cable with EIAJ/JEITA RC-5720C connector,
Wavelength: red 660nm, level: -15dBm max.
Cabling Requirement
Any 4-pair straight cable CAT5/5E/6 with RJ-45 connector.
Coax and second Optic Cable.
(not supplied)
Included in this kit
1 x TX unit, 1 x RX unit, 1 x 5V Power supply,
1 x Optic Cable 3ft (1m) and 1 x Installation guide.
RJ45 Pin Configuration
Pair 4+5 (data), 1+2+7(+5V), 3+6+8(0V)
Compatible mounting
500902, 500900, 500910, 500915
hardware
Temperature
Operating: -40° to 85°C (-40° to 185°F)
Storage: -40° to 85°C (-40° to 185°F)
Humidity
Maximum 95% (non-condensing)
Enclosure
ABS UL94HB fire retardant plastic
2.25" x 2.25" x 1.0" (6 x 6 x 2.5 cm) each box.
Dimensions
Shipping Weight
1 lb. (450g)
Warranty
2 Years
Order Information
500086 Digital Audio Extender
© MuxLab Inc.
94-000795-A

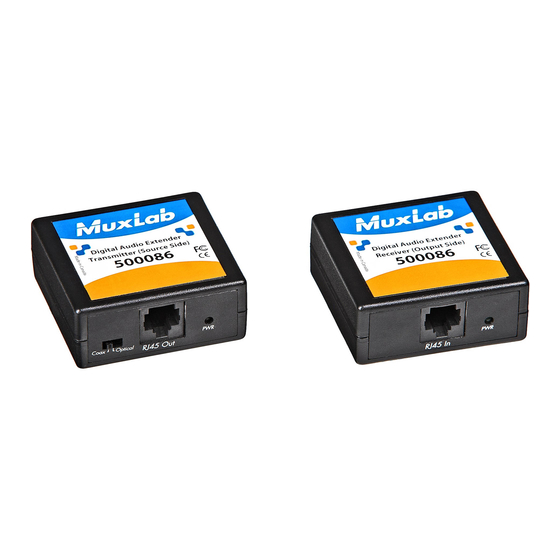

DIGITAL AUDIO EXTENDER KIT
500086
Quick Installation Guide
Overview
The Digital Audio Extender allows one (1) source of digital audio signal: coax (S/PDIF)
or optic (TOSLINK) to be connected to a receiver: coax or optic to up to 500 ft. (150m)
in a point-to-point configuration. The Extender supports most standards to transmit two
channels of uncompressed lossless PCM audio or compressed 5.1/7.1 surround sound,
such as Dolby Digital Plus or DTS-HD High Resolution Audio (multichannel digital
audio Dolby Digital® 5.1, DTS, and Dolby® True HD).
Applications
Transmission of Digital Audio Signal
8495 Dalton Rd, Montreal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
Fax: (514) 905-0589
URL: www.muxlab.com
