SMART-AVI KLX-500 Quick Start Manual

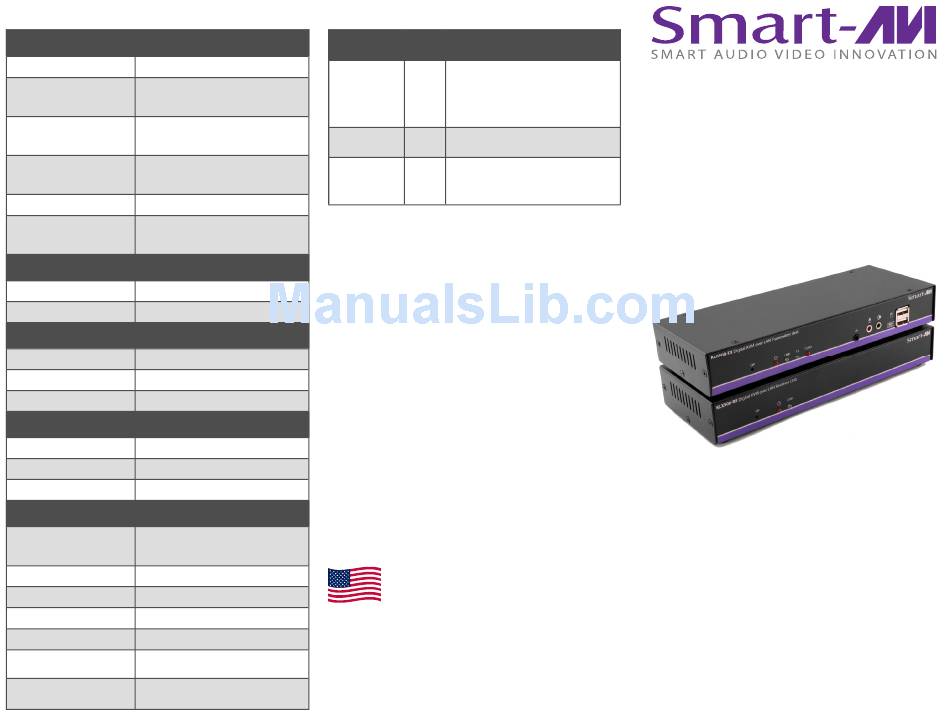

TECHNICAL SPECIFICATIONS

VIDEO
Format DVI-D
Up to 1080p (1920x1080 @
Resolutions
60Hz)
DVI-D, (2) USB Type A Female, (1)
Input Interface (TX)
USB Type B
Output Interference
DVI-D, (2) USB Type A Female
(RX)
Input Cable Length (TX) Up to 40 ft.
Output Cable Length
Up to 40 ft.
(RX)
AUDIO
Input Interface 3.5 mm Jack Socket (Female)
Output Interface 3.5 mm Jack Socket (Female)
SYSTEM
Interface RJ-45
Cable Requirements CAT5e/6
Max. Length 500 ft.
SYSTEM
Interface RJ-45
Cable Requirements CAT5e/6
Max. Length 500 ft.
OTHER
External 100-240 VAC/5VDC2A
Power
@10W
Dimensions (Each) 8.75"W x 1.5"H x 3.5"D
Weight (Both) 1.1 lbs.
Approvals UL, CE, ROHS Compliant
Operating Temp. 32 to 131°F (0 to 55°C )
Storage Temp. -4 to 185 °F (-20 to 85 °C)
Operating Humidity Up to 80% (No Condensation)
WHAT'S IN THE BOX
PART NO. QTY DESCRIPTION
DVI-D KVM, Stereo Audio Ex-
KLX-500-S 1 tender. [Includes KLX-500-TX,
KLX-500-RX]
PS5VD2A 2 Power Adapter
Quick Start
1 Installation Setup/Part listing
Guide
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI
makes no warranty of any kind with regard to this
material, including but not limited to, implied war-
ranties of merchantability and fitness for particu-
lar purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages
in connection with the furnishing, performance or
use of this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI Tech-
nologies, Inc.
20161212
Designed and Manufactured in the USA
800.AVI.2131
Tel: (818) 503-6200 Fax: (818) 503-6208
11651 Vanowen St. North Hollywood, CA 91605
SmartAVI.com

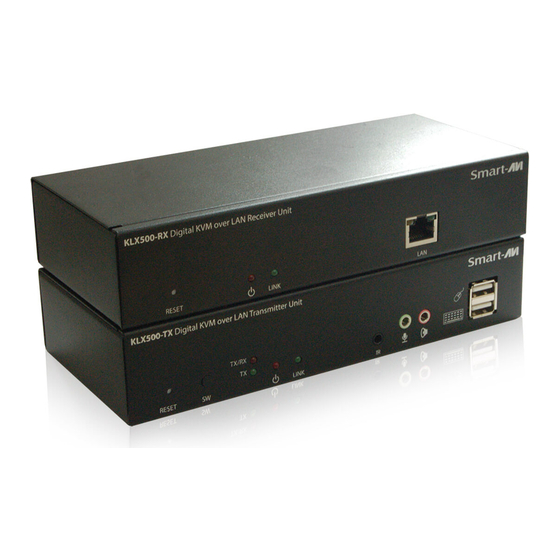

KLX‐500
DVI & KVM
Extender via LAN
Extend DVI, KVM and IR control
signals over IP using CAT5e/6
cables

Quick Start Guide
