1. MOUNTING THE UNIT

Mounting

The antenna cable is available in lengths of 15 m, 30 m, 50 m and 100 m (see table below).
Cable length
15 m (no armor)
30 m (no armor)
30 m (w/armor)
50 m (w/armor)
100 m (w/armor)
To mount the antenna unit, an exclusive pipe is necessary.
Note 1: Do not shorten these cables. Interference can result, affecting performance.
Note 2: To mount the antenna unit with the optional antenna mounting kit (Type:
CP16-03701, Code No.: 004-555-000), see page D-4.

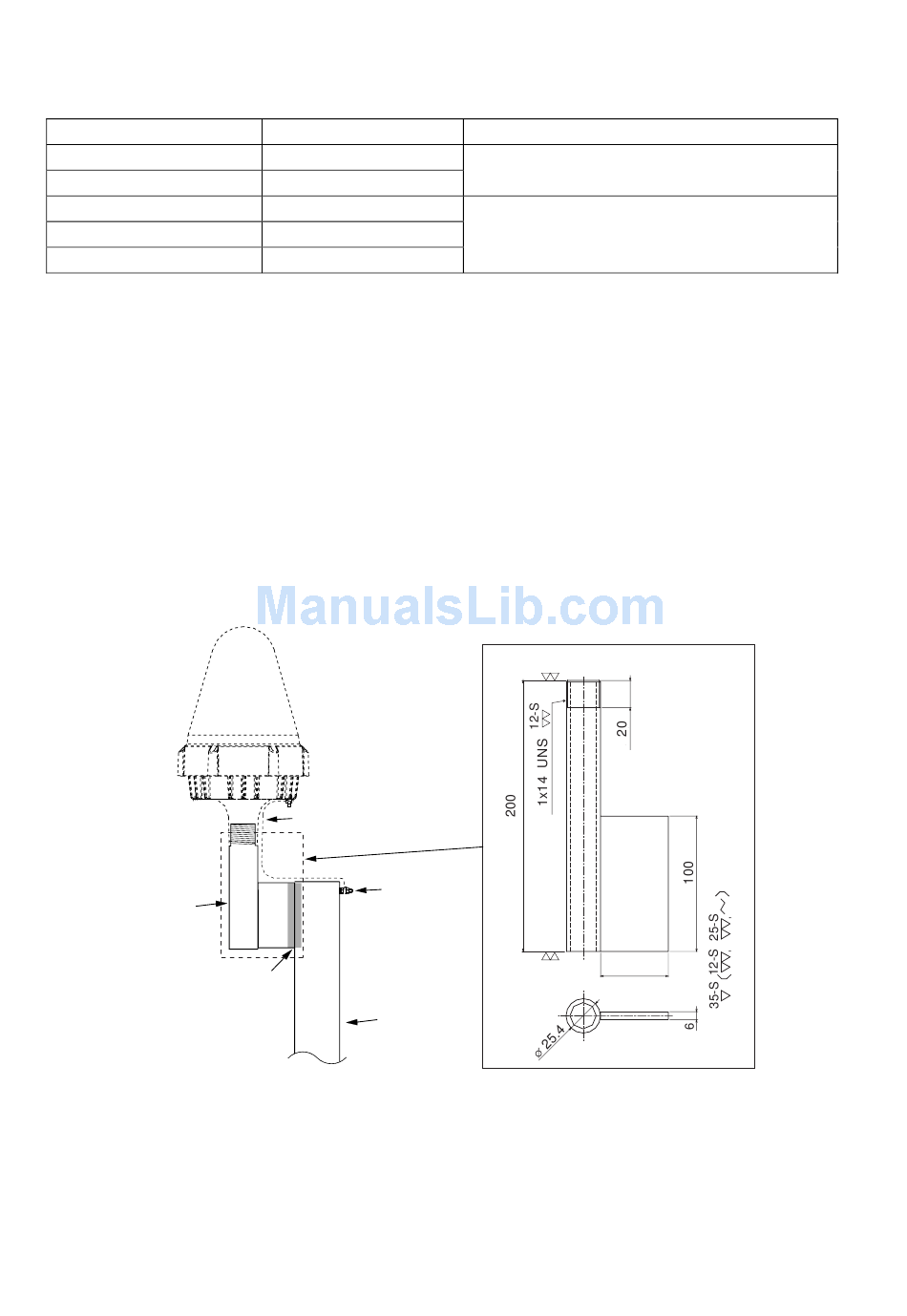

Locally prepare an antenna mast with a ground stud (M6 stainless steel bolt welded to
antenna mast) and mounting pipe with threads and plate (See the outline drawing of the
mounting plate shown below.) Weld the mounting pipe to the antenna mast.
The distance between the stud and the earth terminal on the antenna unit should be within
340 mm, which also is the length of the supplied ground wire.
Note: Use of the mounting pipe (FURUNO supply or the equivalent) is mandatory in case of
FFA version. See the equipment list at the beginning of this manual for information.
Mounting
pipe
(FURUNO
supplied or
equivalent)
For how to wire the antenna cable, see "Installation and Replacement of Antenna Unit",
included with the antenna unit.
Type
TP58A15W-RG58A/U
TP5FBAW-5DFB
5D-FB-CV-NP
8D-FB-CV
12D-SFA-LITE-CV
Ground wire (340 mm)
Ground stud
Welding
Antenna mast

Mounting pipe and antenna mast

TNC connector at both ends
N connector on one end (antenna side)
2
Remarks
50
