Redring Expressions 520M/520TS Installation Instructions Manual page 3

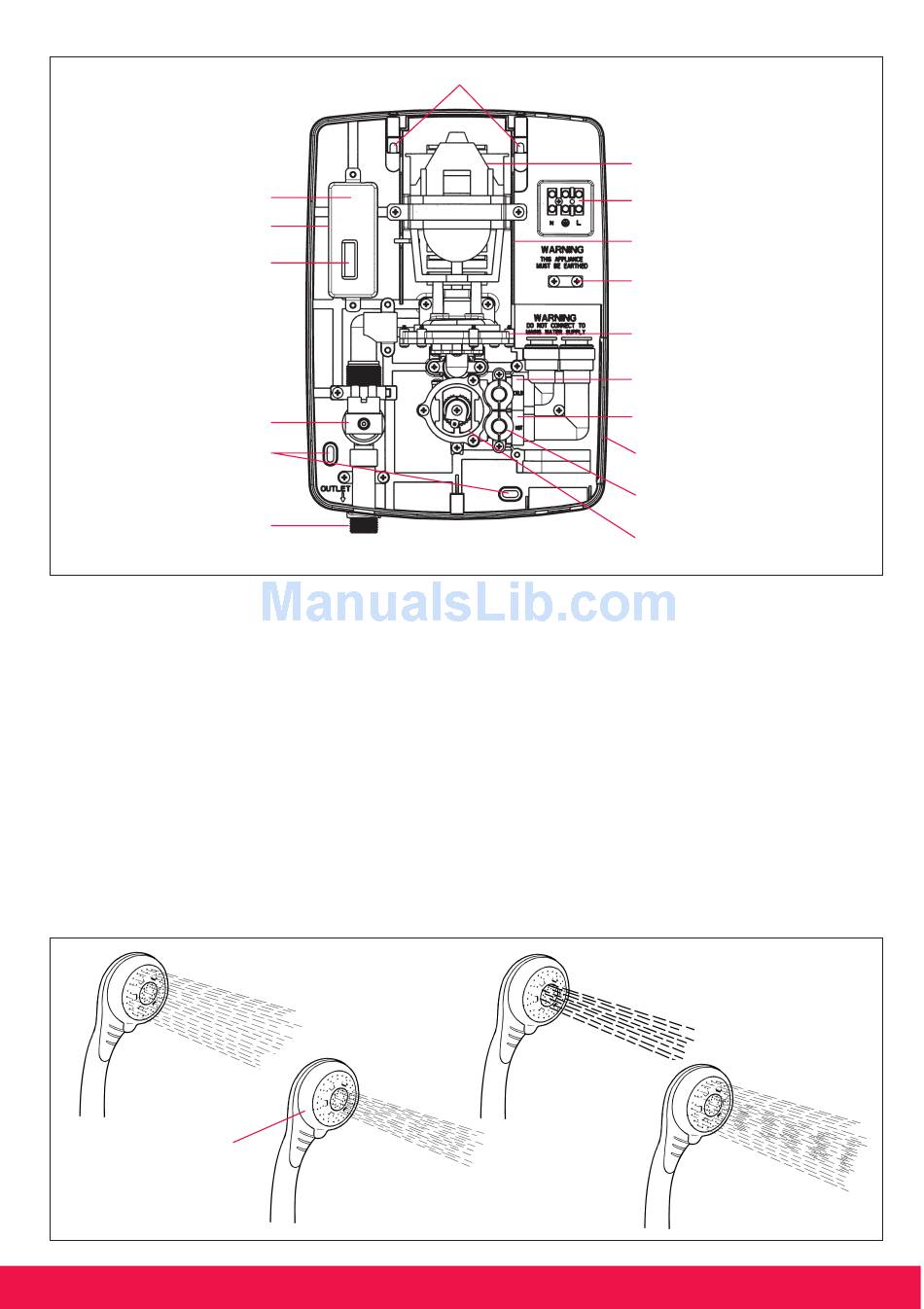

Diagram 2
PCB Enclosure
Commissioning
Solenoid
Bottom Fixing
Holes
Outlet
The limiter is factory set but can be adjusted
to suit on site conditions. If the position of the
limiter requires adjustment please refer to the
section in the commissioning procedure
(page 9).
8. To override the stop position of the limiter,
press the button on Knob 'B' and continue
turning Knob 'B' anti-clockwise to a higher
number on the temperature scale until the
desired temperature is reached.
9. If the temperature limiter has been overridden,
knob 'B' MUST always be returned to the
normal temperature range when the shower is
a)
Ring
Diagram 3
Top Fixing Holes
Link
b)
Motor
Terminal
Block
Rating Plate
Position
Cable
Clamp
Pump Assy
Cold Inlet
Port
Hot Inlet
Port
Side Section
Filter
Housing
Mixer
Chamber
switched off. To do this, simply turn knob 'B'
clockwise past the limiter position. The button
does not need to be depressed when
returning to the normal temperature range.
10. There are 4 defined spray settings provided by
the handset (See diagram 3).
The ring can be turned in either direction to
change the spray pattern.
a) Spray: Powerful fine jets.
b) Massage: Sparkling pulsating massage.
c) Champagne: Soft, aerated, relaxing spray.
d) Pulse Mix: Massage/Spray Combination.
c)
d)
3
