5. Activate Spy Mode
00 01 30
00272
:
:
2008 02 25
16 32 18
.
.
:
:
(A) Screen-off Disguise Display
00 01 30
00272
:
:
2008 02 25
.
.
16 32 18
:
:
(B) Cellphone Power-on Disguise Display
1. There are two different covert display originally designed to apply
on this model (A) Screen-off (B) Cellphone power-on
2. Both can be accessed by pressing instant key.
3. To activate instant key access. Press Power button.
4. Go to Main Menu > Settings > Spy Mode > On
5. Spy Mode needs to select On. Spy Mode is activated.
6. Press Menu + * button to change to screen-off display.
7. Press Menu + # button to change to Cellphone power-on display.
8. Note that use the navigation key to change the setting. UP/DOWN
/RIGHT/LEFT to change cursor direction. Push in to SET the
selection.
6. Taking Snapshot
00 01 30
00272
00 01 30
:
:
00272
:
:
Captured
2008 02 25
.
.
16 32 18
2008 02 25
.
.
16 32 18
:
:
:
:
1. Record directly without disguise, go to Main Menu > Record >
Preview. Captured images will be shown on screen.
2. Press 3 button to take snapshot.
(4)
PV-900HD
Cellphone Design Portable DVR
Quick Guide
Law Enforcement Products Manufacturer
LawMate
7. File Retreival
1. USB Cable Connection:
(A) Connects Micro USB Cable Hub to DVR.
(B) Connects Mini USB cable to Micro USB Cable Hub to computer.
(C) DVR is read as External Storage from computer.
(D) Access the external storage, find the folder named Record.
(E) Operates file applications in this folder.
2. Card Reader:
(A) Remove MicroSD card from card slot.
(B) Connects card reader to computer.
(C) Insert MicroSD card into card reader.
(D) Access the card reader folder.
(E) Operates file applications in this folder.
8. File Playback
1. Video File Playback:
(A) Go to Main Menu > Video
(B) Press Navigation Button to access record folder
(C) Press Navigation Button to playback video.
(D) Move Navigation Button to right to fast forward.
(E) Move Navigation Button to left to play backward.
(F) Press ESC button to move to previous directory.
2. Image File Playback:
(A) Go to Main Menu > Images
(B) Pres Navigation Button to zoom in and zoom out.
(C) Move Navigation Button up or down to view other files.
(D) Press Menu Button to edit Slideshow option.
9. Changing Video System
1. Go to directory: Main Menu > Setting > Digital Cam NTSC/PAL
2. Press Navigation Button to access selection.
3. Move Navigation Button UP and Down to change setting.
4. Move Navigation Button to left to exit setting edit.
5. Press ESC Button to exit Setting Menu page.
(5)
4
5

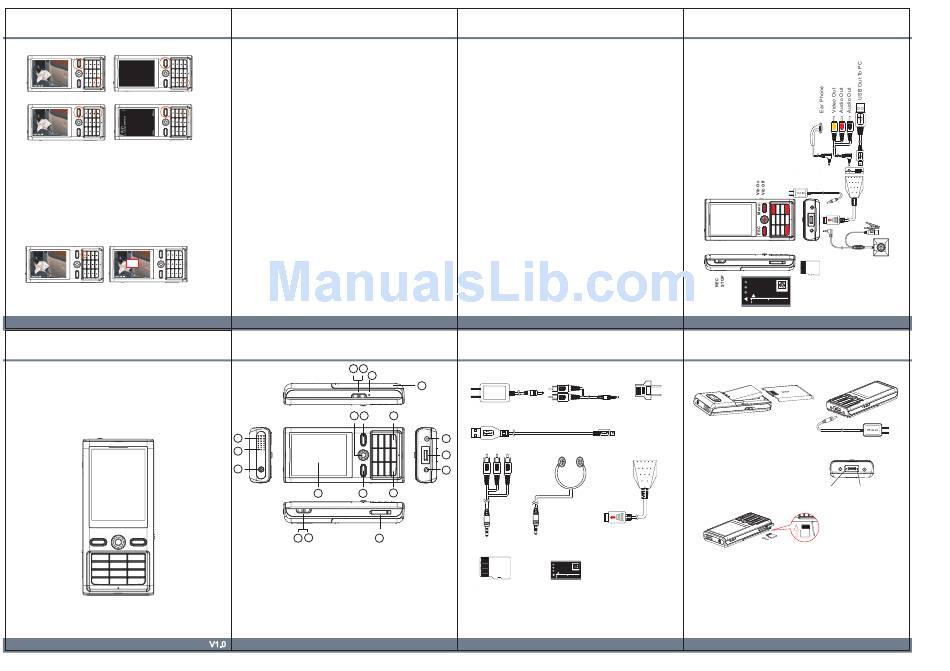

1. Name and Parts
6
9
10
1
2
3
8
11
17 18
19
1. Camera Lens
11. Escape Button
2. Microphone
12. Volume Up Button
3. Power Button
13. Volume Down Button
4. Vibration On Switch
14. DC Power Adapter Socket
5. Vibration Off Switch
15. Micro USB Port
6. Reset Button
16. AV Input Socket
7. Battery Tray
17. Stop Recording Switch
8. 2.46" LCD Display
18. Recording Switch
9. Navigation Key
19. Micro SD Card Slot
10. Menu Button
(1)
V1.0
10. Continuous Recording
1. Go to directory: Main Menu > Record > Preview
2. Captured images will show on screen display.
3. Switch to REC position to start recording.
4. Device will start recording continuously when REC is switched.
5. Switch to STOP position to stop recording.
11. Pre-event Recording
1. Go to directory: Main Menu > Record > Pre-event
2. Captured images will show on screen display.
3. Switch to REC position to start recording.
4. Device will automatically start recording 30 seconds ago before REC
is switched.
5. Switch to STOP position to stop recording.
12. Motion Detect Recording
1. Go to directory: Main Menu > Settings > Motion Detection
2. Make changes on MMotion Detect Level, Motion Detect Duration,
Motion Detect Zone, and Overwrite settings.
3. Go to directory: Main Menu > Settings > Recording Mode.
4. Select Motion Detect as default recording mode.
5. Switch to REC position to start recording.
6. Switch to Stop position and press ESC button three second long to stop.
13. Password Protection
1. Power On Password:
(A) Go to directory: Main Menu > Setting > Set Power On Password
(B) Use Navigation Button to change password character.
(C) Go to directory: Main Menu > Setting > Power On Password > On
2. USB Connection Password:
(A) Go to directory:
Main Menu > Setting > Set USB Connection Password
(B) Use Navigation Button to change password character.
(C) Go to directory:
Main Menu > Setting > USB Connection Password > On
(6)
2. Package Content
7
DC 5V 2A
5V DC Adapter
A/V Out Cable (2 prong)
12
14
USB Cable
15
16
13
A/V Out Cable
Earphone
(3 prong)
3.7V Li-ion BATTERY
for FUJI
NP120ID-L17
!
CAUTION
DON'T DISASSEMBLE.
DON'T DISPOSE OF IN FIRE
DON'T STORE IN TEMPERATURE OVER 60
CHARGE ONLY WITH SPECIFIED CHARGER.
MicroSD Card
Li-ion Battery
(2)
14. Timer Recording
1. Go to directory:
Main Menu > Setting > Timer Recording
2. Select any icon and edit timer settings.
3. Move to the end of the menu page.
4. Change Setting to On.
5. Turn the DVR power off.
6. DVR will start recording in respond
to timer setting.
15. Illustration
3.7V Li-ion BATTERY
for FUJI
DON'T DISASSEMBLE.
DON'T STORE IN TEMPERATURE OVER 60
CHARGE ONLY WITH SPECIFIED CHARGER.
3. Charging Battery
1. Remove the battery cover from back.
2. Slide in the battery into battery tray.
3. Close the battery tray with battery cover.
4. Plug in the power adapter into DC power
adapter socket of DVR.
5. Plug in the power adapter into wall outlet.
6. Leave the scanner charging for
12 hours straight without
disconnection at first time charging.
4. Insert MicroSD Card
USB and AV Out
Connection Cable
1. Please insert the MicroSD card into card slot before start to use
DVR.
2. Slide in the the MicroSD card into card slot with metal contacting
Li-ion
strip facing upward.
C.
0
3. Push the card in and wait for click to firmly place the card in position.
4. Close the card slot with the attached lit.
5. All recorded file will be stored in the memory card.
6. File directory to playback recorded file:
Video file: Main Menu > Video
Picture file: Main Menu > Images
NP120ID-L17
Li-ion
!
CAUTION
DON'T DISPOSE OF IN FIRE
C.
0
(7)
Recording LED (Red)
Charging LED(RED)
Power-on LED (Blue)
(3)
