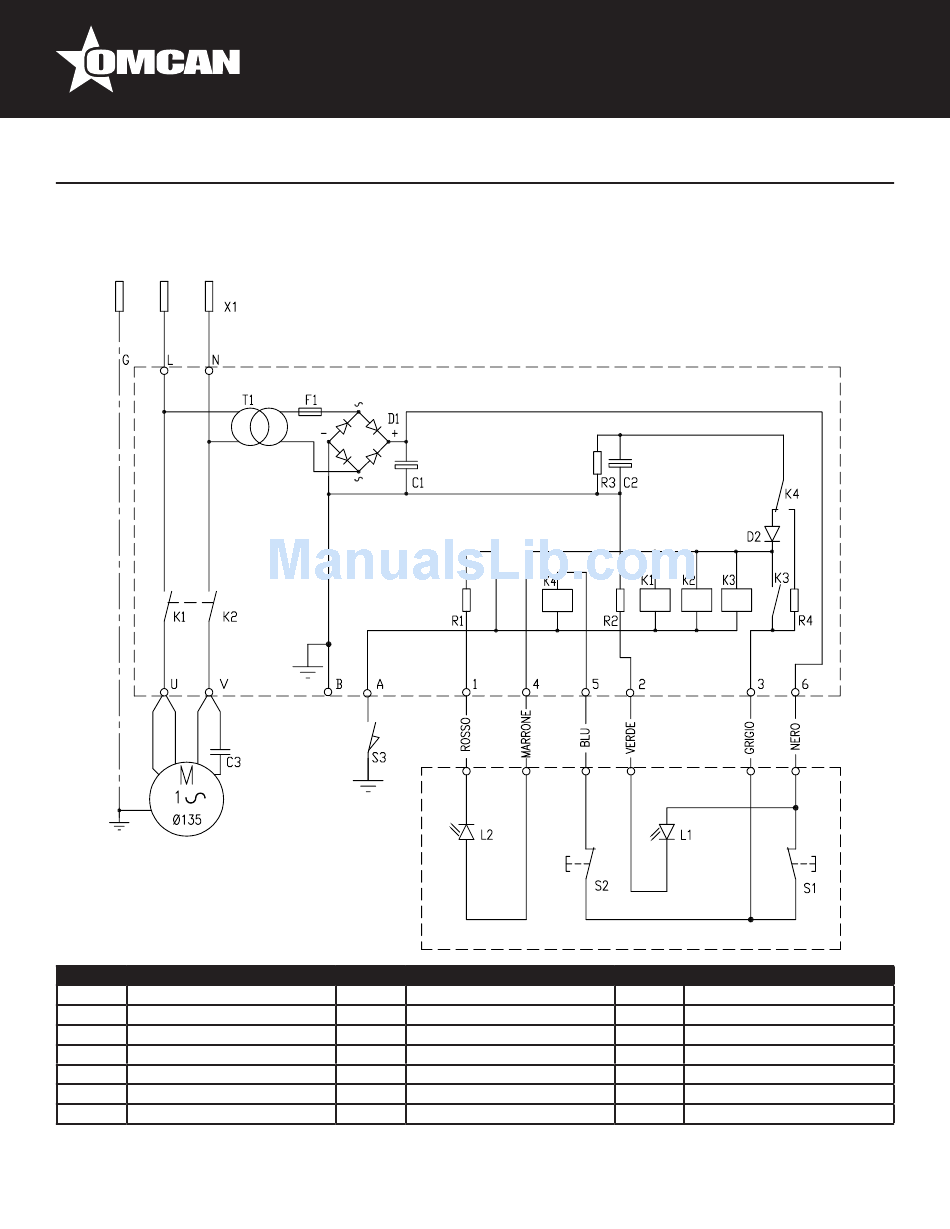

Electrical Schematics - Omcan MS-IT-0370-H Instruction Manual

Model MS-IT-0370-H
Position Description
X1 Spina
T1 Transformer
F1 Fuse 500mA
D1 Straightener 1A
D2 Protective Diode
L1 LED Orange Line
L2 LED Green March

Electrical Schematics

38915
Position Description
C1 Capacitor 220uF
C2 Capacitor 100uF
C3 Capacitor 20uF
R1 Resistance 1k
R2 Resistance 1k
R3 Resistance 10k
R4 Resistance 47 Hom
23
Position Description
K1 Power Relay
K2 Power Relay
K3 Command Relay
K4 Command Relay
S1 Stop Button
S2 Start Button
S3 Blade Guard Disc Protection
