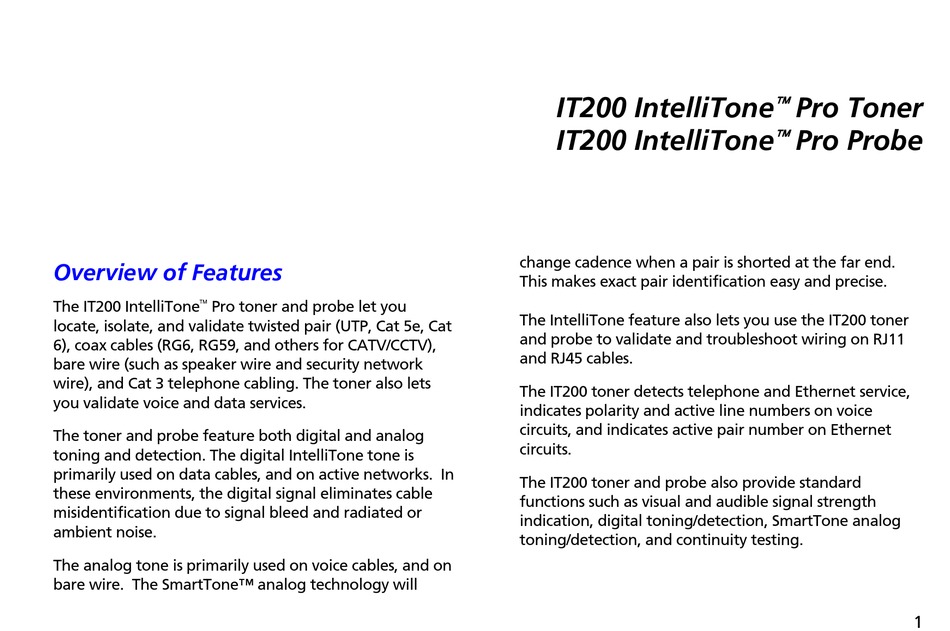

Overview of Features


The IT200 IntelliTone Pro toner and probe let you
locate, isolate, and validate twisted pair (UTP, Cat 5e, Cat
6), coax cables (RG6, RG59, and others for CATV/CCTV),
bare wire (such as speaker wire and security network
wire), and Cat 3 telephone cabling. The toner also lets
you validate voice and data services.
The toner and probe feature both digital and analog
toning and detection. The digital IntelliTone tone is
primarily used on data cables, and on active networks. In
these environments, the digital signal eliminates cable
misidentification due to signal bleed and radiated or
ambient noise.
The analog tone is primarily used on voice cables, and on
bare wire. The SmartTone™ analog technology will
IT200 IntelliTone
IT200 IntelliTone
change cadence when a pair is shorted at the far end.
This makes exact pair identification easy and precise.
The IntelliTone feature also lets you use the IT200 toner
and probe to validate and troubleshoot wiring on RJ11
and RJ45 cables.
The IT200 toner detects telephone and Ethernet service,
indicates polarity and active line numbers on voice
circuits, and indicates active pair number on Ethernet
circuits.
The IT200 toner and probe also provide standard
functions such as visual and audible signal strength
indication, digital toning/detection, SmartTone analog
toning/detection, and continuity testing.

Pro Toner

Pro Probe
