IT200
Users Manual

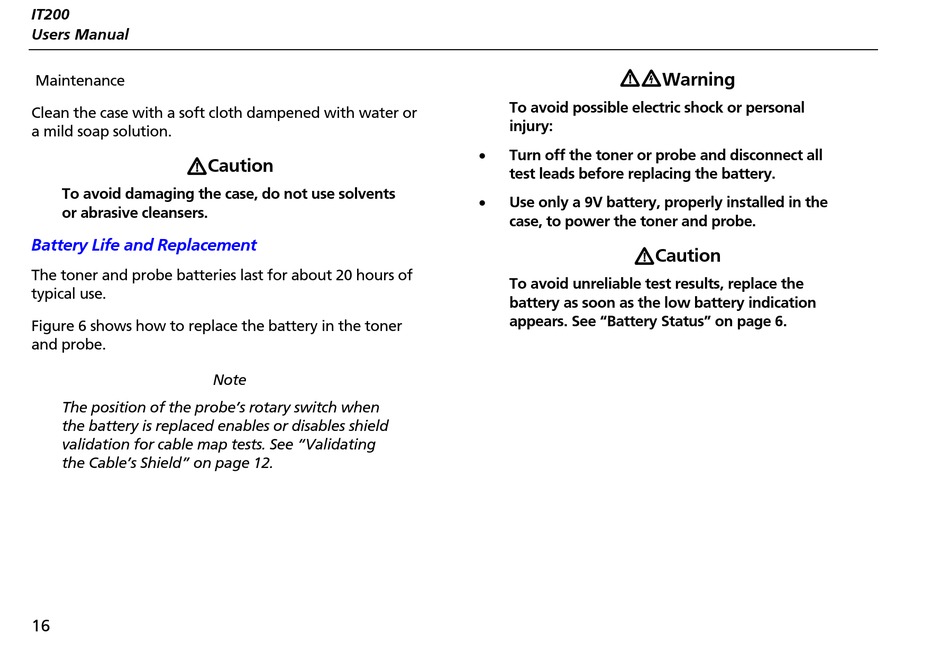

Maintenance
Clean the case with a soft cloth dampened with water or
a mild soap solution.
WCaution
To avoid damaging the case, do not use solvents
or abrasive cleansers.

Battery Life and Replacement

The toner and probe batteries last for about 20 hours of
typical use.
Figure 6 shows how to replace the battery in the toner
and probe.
The position of the probe's rotary switch when
the battery is replaced enables or disables shield
validation for cable map tests. See "Validating
the Cable's Shield" on page 12.
16
Note
WX Warning
To avoid possible electric shock or personal
injury:
•
Turn off the toner or probe and disconnect all
test leads before replacing the battery.
•
Use only a 9V battery, properly installed in the
case, to power the toner and probe.
WCaution
To avoid unreliable test results, replace the
battery as soon as the low battery indication
appears. See "Battery Status" on page 6.
