3600 SERIES USER MANUAL
2. Arrangement of the Keyboard
In general, the keyboard will perform the
function of the black words 1st. But in the 2nd
mode, it will perform the function of the words
in blue.

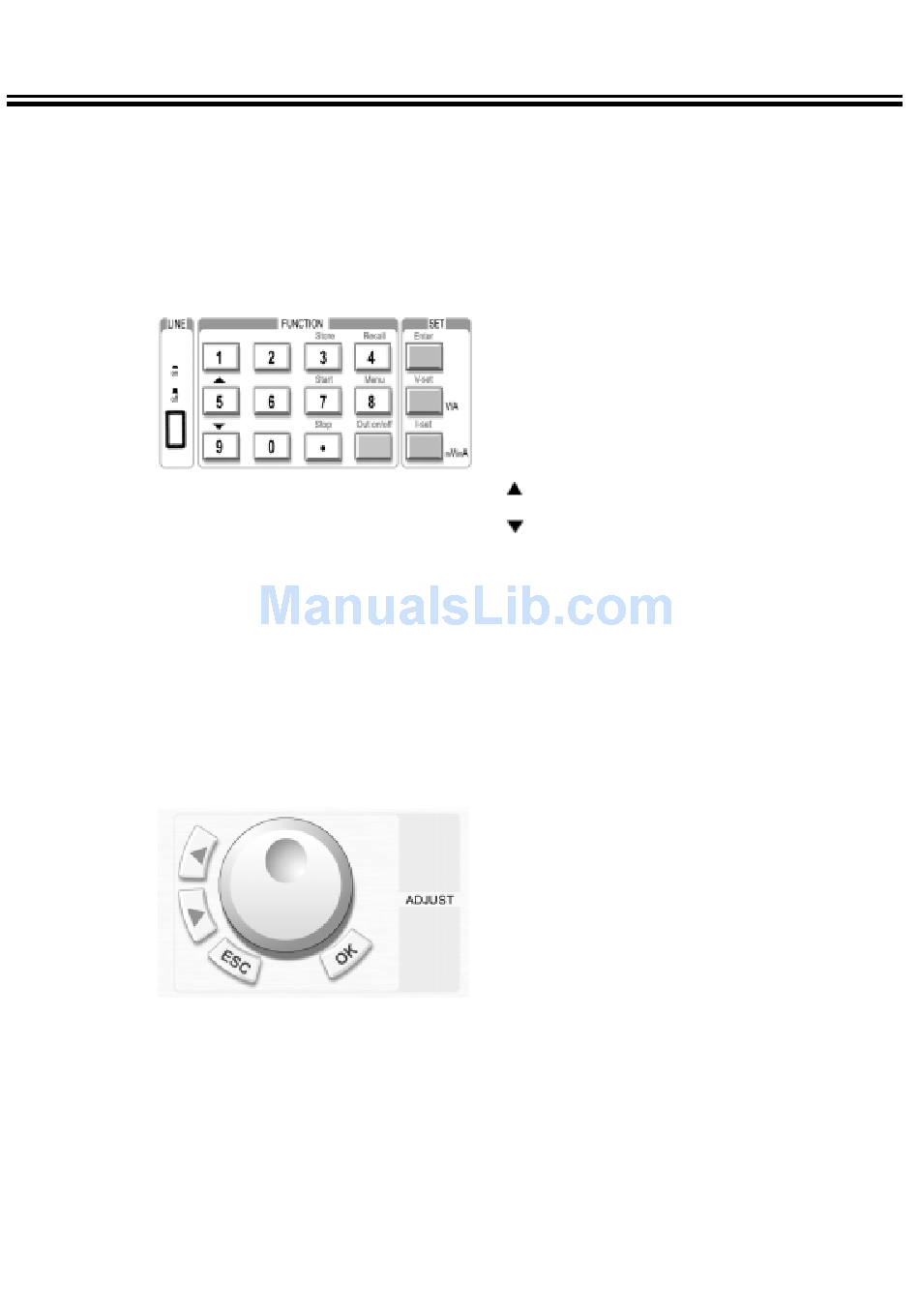

Fig. 1- 4 Keyboard of 3600 Series DC power s u p p l y
3. Rotary knob and function keys
Fig. 1- 5 Rotary knob and function keys
4
0~9: The number keys
Store: Store the current setting value
Recall: Recall the saved setting value
Menu: The menu operation
Out on/off: Enable/disable the output
Enter: The confirmation key
V-set: Setting voltage value
I-set: Setting current value
V/A: Set the voltage as V
mV/mA: Set the voltage as mV
Left Operation: The left moving key
Right Operation: The right moving key
ESC: Escape key
OK: Confirmation key
Rotary knob: The rotary dial
3600 Series Programmable DC Power Supply
VERSION 2.10 2006.03
: The up moving key
: The down moving key
Set the current as A
Set the current as mA
