1.4 Dimensions and Structure

1.4.1 Dimensions

1.4.2 Structure

1.4.2.1 Front view

Front panel is for users to operate, and
there is one LCD display, one number
keypad and one rotary knob. Please
see the following pictures.
1. LCD display
Fig. 1-3 LCD Display of 3600 Series power supply
3600 Series Programmable DC Power Supply
VERSION 2.10 2006.03

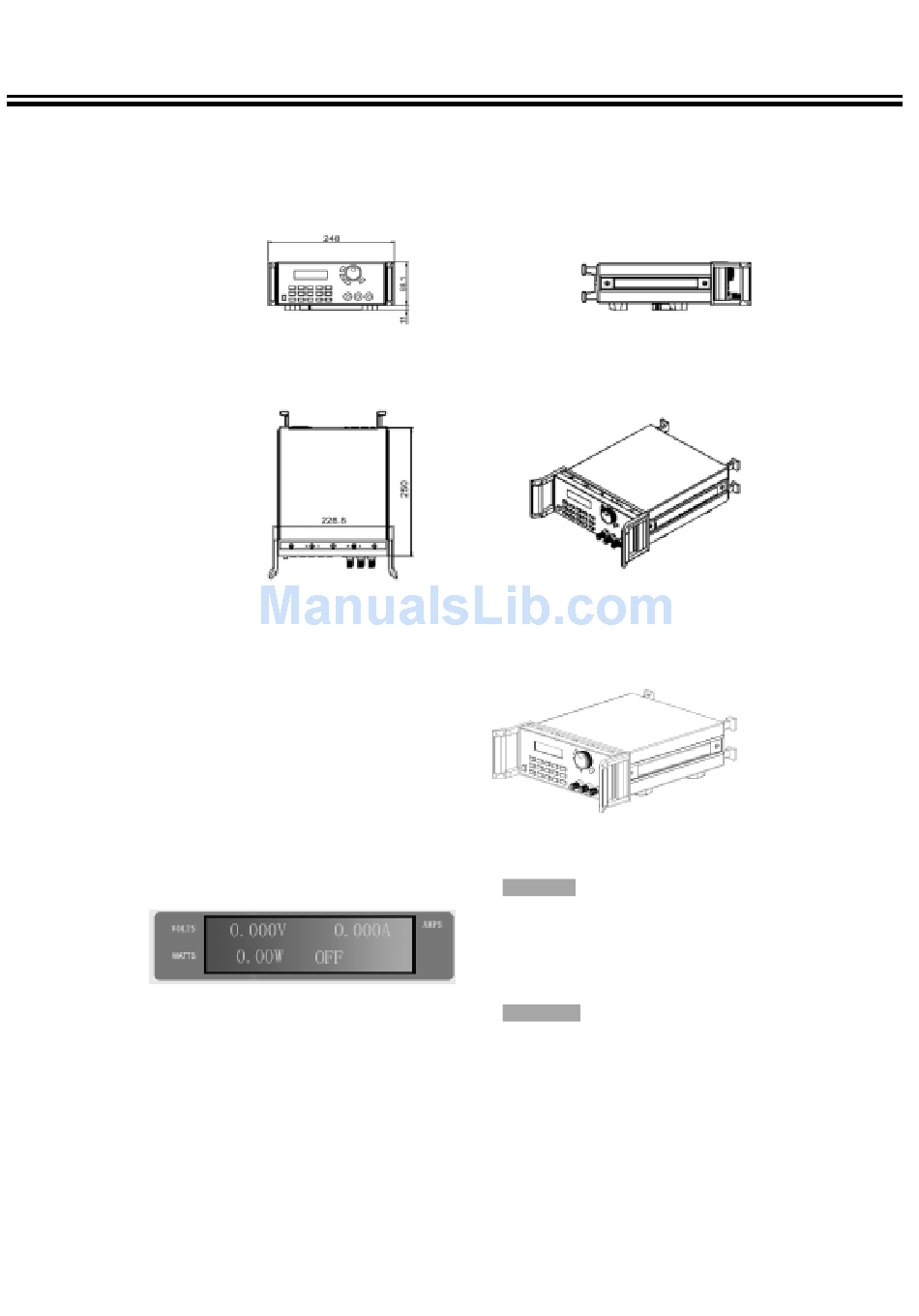

Fig. 1-1 Dimensions of 3600 Series Programmable DC Power Supply
3600 SERIES USER MANUAL
Fig. 1-2 Front view of 3600 Series DC Power Supply
The 1st line:
Left: The voltage value. When output is off, this value is
the set value, when output is on, this is the actual output
voltage value
Right: The actual output current value.
The 2nd line:
Left: The output power value. (Flashing power value
means the over power.)
Middle: ON / (OFF), the output state of the power
supply.
Right: PC, represents the Power Supply is controlled by
the computer.
