Levelflex M FMP45 4 to 20 mA HART

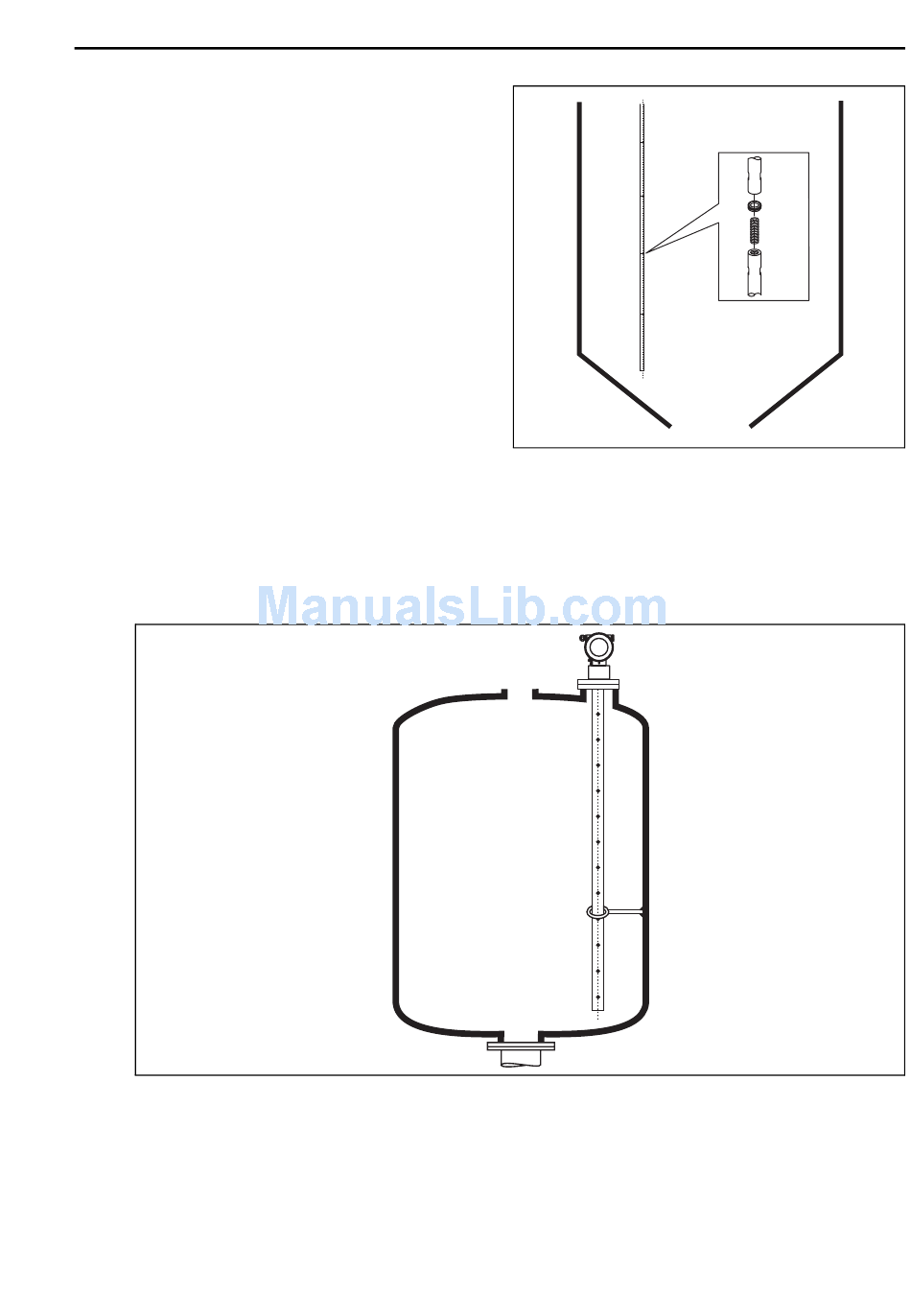

Separable probes
If there is little mounting space (distance to
the ceiling), it is advisable to use separable
rod probes (∅16 mm).
• max. probe length 10 m (394 in)
• max. sideways capacity 20 Nm
• probes are separable several times with
the lengths:
– 500 mm (19.68 in)
– 1000 mm (39.37 in)
• torque: 15 Nm
2.3.3 Supporting probes against warping
For GL/ABS approval:
A support is required for probe lengths ≤ 3m (see drawing).
