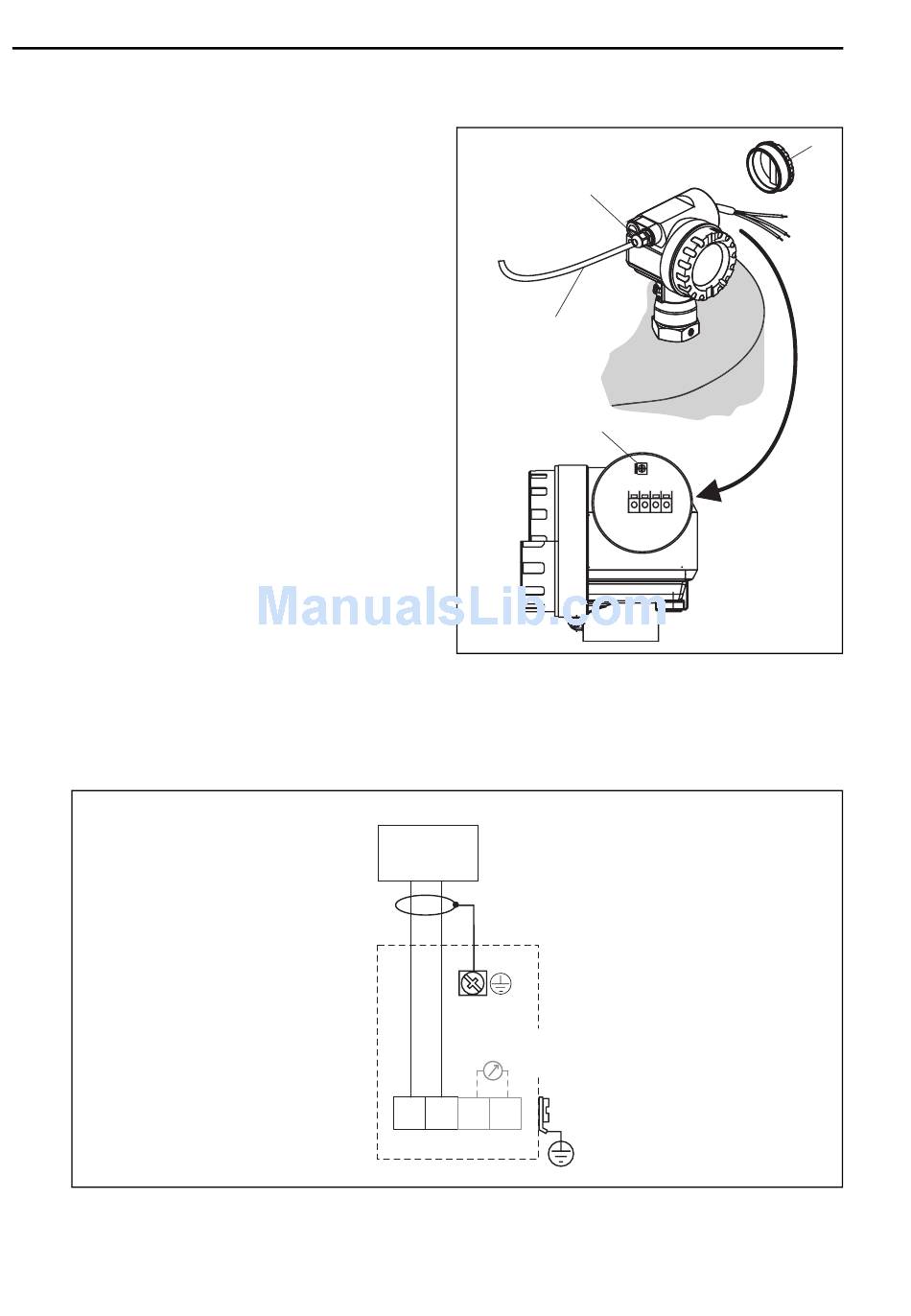

Wiring
3.2

Wiring in T12 housing

1. Unscrew housing cover (1).
2. Insert cable (2) through gland (3).
3. Connect cable screen to the grounding
terminal (4) within the terminal
compartment.
4. Make connection (see terminal
assignment).
5. Tighten cable gland (6).
Max. torque 10 to 12 Nm!
6. Screw on housing cover (1).
7. Switch on power supply.
3.3

Terminal assignment

12
2
2-wire-version
power
test sockets
(output current)
1 2 3 4
L- L+ I+ I-
Levelflex M FMP45 4 to 20 mA HART
3
4
1 2 3 4
L00-FMP40xxx-04-00-00-xx-002
plant ground
L00-FMP4xxxx-04-00-00-en-009
