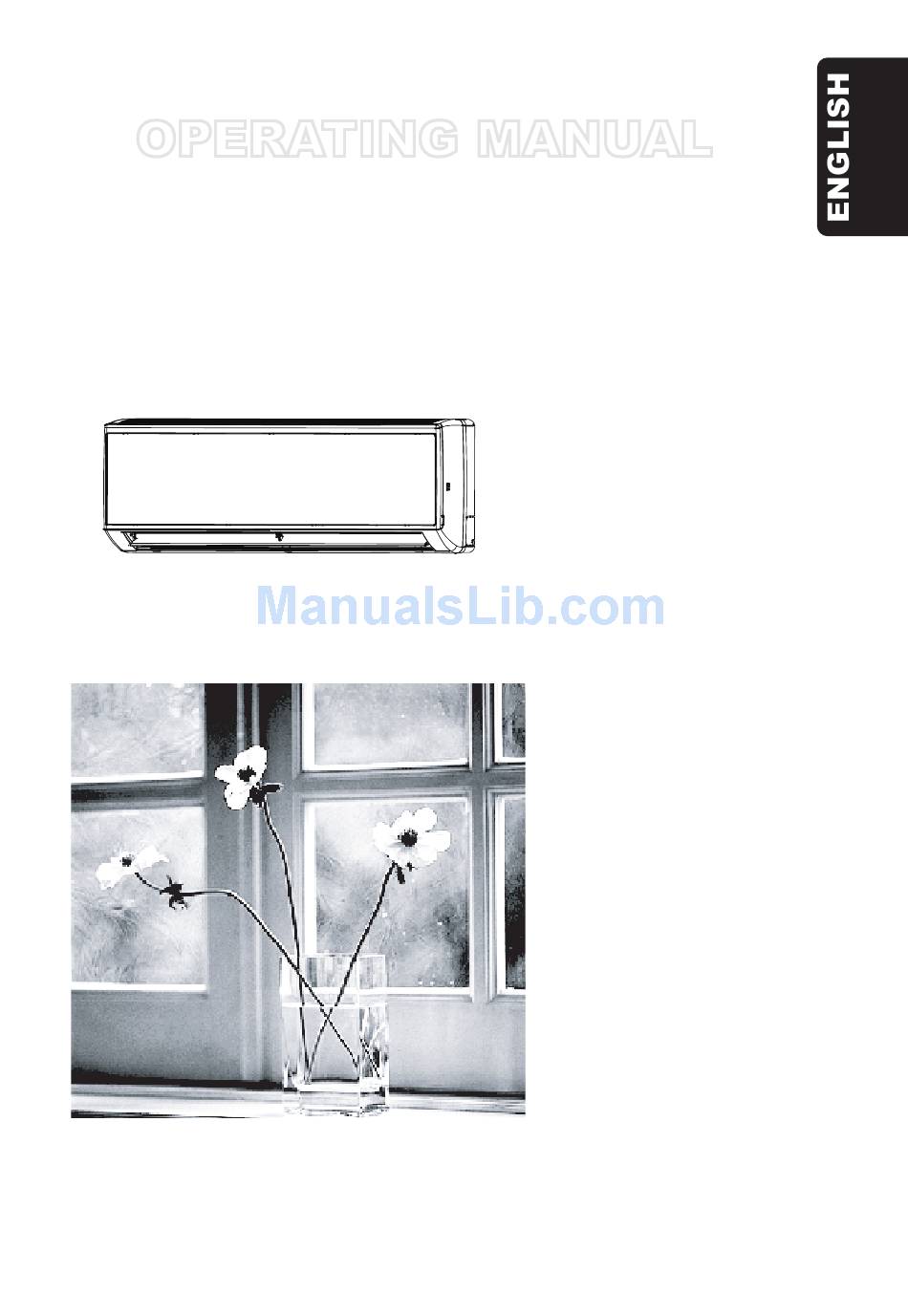

OPERATING MANUAL
HAD/JAD/DHA Wall Mounted Range
DC INVERTER
R410A
Before using your air-conditioner,please
read this operating instruction carefully and
keep it for future reference.
CONTENT
FEATURESAND FUNCTIONS .........1
PRECAUTIONS ................................2
NAME OF EACH PART ....................3-4
OPERATION .....................................5
PROTECTION MODES ....................6
CARE AND MAINTENANCE ............7-8
TROUBLESHOOTING .....................9
EXCEPTION FOR MULTI
SPLITTYPE ......................................10
Thank you for
purchasing our
Room Air Conditioner.
Part No. 468100332/01
OM HAD/JAD/DHA 1-N.1 GB
Advertisement
Table of Contents
Related Manuals for Airwell HAD series
Summary of Contents for Airwell HAD series
-
Page 1: Table Of Contents
OPERATING MANUAL HAD/JAD/DHA Wall Mounted Range DC INVERTER R410A CONTENT FEATURESAND FUNCTIONS ..1 PRECAUTIONS ........2 NAME OF EACH PART ....3-4 OPERATION ........5 PROTECTION MODES ....6 CARE AND MAINTENANCE ....7-8 TROUBLESHOOTING .....9 EXCEPTION FOR MULTI SPLITTYPE ........10 Thank you for purchasing our Room Air Conditioner. -
Page 2: Featuresand Functions
FEATURES AND FUNCTIONS VERTICAL AIR SWING AUTO CHANGE OVER Automatic swing of supply air in vertical The operation mode (cooling, dry, heating) direction. The flap moves automatically in is switched automatically to maintain the upward and downward direction to spread set temperature, and the set temperature is the conditioned air evenly throughout the kept constant at all times. -
Page 3: Precautions
PRECAUTIONS g Danger g Danger This sign warns of death or serious injury. This sign warns of damage to property. ● Do not attempt to install this air ● Provide occasional ventilation during use. conditioner by yourself. ● Do not direct air flow at fireplaces or ●... -
Page 4: Name Of Each Part
NAME OF EACH PART INDOOR UNIT Air intake grill Air filter Supply air flap (louver) Horizontal air flow deflecting louvers Air outlet Unit’s indicatiors and on unit control Ionizer (optional) Power cord (optional) Part names and function is set to "COOL", "DRY" or "AUTO". After around 15 seconds, the icon will be A Ionizer deemed. - Page 5 NAME OF EACH PART Mode Function: This LED will light up when the unit is on Standby. It will turn off when unit is in Every short pressing , the next operation operation. mode is selected, in this order: SB → Cool Mode →...
-
Page 6: Operation
OPERATION TIPS ● Set a suitable room temperature; excessively low room temperature is not good for your health and wastes electricity. Avoid frequent setting of the temperature. ● During cooling, avoid direct sun. Keep curtains and blinds closed. Close doors and windows to keep the cool air in the room. -
Page 7: Protection Modes
PROTECTION MODES (optional) Your air-conditioner includes several automatic protection modes which enables you to use it virtually at any time and in any season regardless of the outdoor temperature. Some of the protection modes are listed below: Mode Operations Protection Controlled remedy conditions from... -
Page 8: Care And Maintenance
CARE AND MAINTENANCE CARE AND MAINTENANCE CARE AND MAINTENANCE Before performing any maintenance procedure, make sure to disconnect the air conditioner from the power. HOW TO CLEAN THE FLAT PANEL The flat panel must be cleaned by soft cloth with water or mild cleanser. - Page 9 CARE AND MAINTENANCE CARE AND MAINTENANCE CARE AND MAINTENANCE CLEANING THE AIR CONDITIONER ● Wipe the unit with a soft dry cloth or clean it using a vacuum cleaner. ● Do not use hot water or volatile materials which could damage the surface of the air conditioner.
-
Page 10: Troubleshooting
TROUBLESHOOTING Before calling for service, please check the following common malfunctions and correct it as needed. Problem Cause Remedy ● Unit does not ● Unit not connected to ● Plug in the power cord operate. Stand-by power indicator does not ●... -
Page 11: Exception For Multi Split Type
EXCEPTION FOR MULTI SPLIT TYPE ln multi split applications where more than a single indoor unit is connected to the same outdoor unit, it may happen that the requested operation mode can not be operated. The reason for that is that the system is currently operating in a different mode. The system operation mode can be either cooling or heating and is set by the outdoor unit controls, based on indoor and outdoor unit settings.
