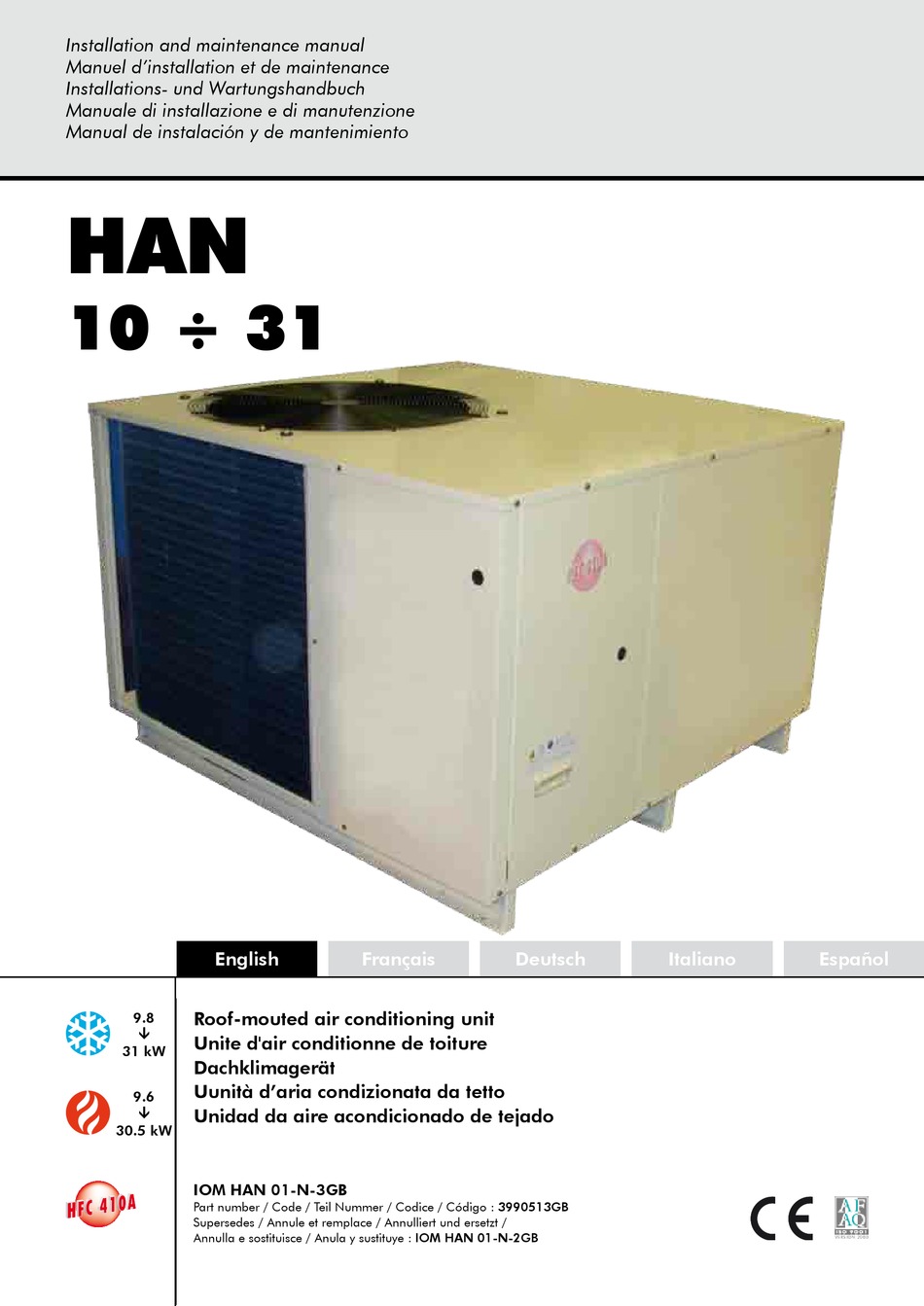

Page 1 Installation and maintenance manual Manuel d’installation et de maintenance Installations- und Wartungshandbuch Manuale di installazione e di manutenzione Manual de instalación y de mantenimiento 10 ÷ 31 English Français Deutsch Italiano Español Roof-mouted air conditioning unit Ü Unite d'air conditionne de toiture 31 kW Dachklimagerät Uunità...
Page 3 INSTALLATION INSTRUCTION NOTICE D’INSTALLATION INSTALLATIONSHANDBUCH ISTRUZIONI INSTALLAZIONE INSTRUCCIONES DE INSTALACIÓN...
Page 4: Table Of Contents
CONTENTS GENERAL RECOMMENDATIONS .......................3 SAFETY DIRECTIONS ................................3 WARNING ....................................3 EqUIpmENT SAFETY DATA ............................... 4 INSpECTION AND STORAGE ........................5 WARRANTY ...............................5 CONTENTS OF pACKAGE ..........................5 pRESENTATION ............................5 DIMENSIONS ............................6 HANDLING ...............................6 NET WEIGHT ................................... 6 TECHNICAL SpECIFICATIONS ........................7 REFIGERATION SpECIFICATIONS .............................. 7 ELECTRICAL SpECIFICATIONS ..............................
Page 5: General Recommendations
pOWER SUppLY MUST BE SWITCHED OFF BEFORE STARTING TO WORK IN THE ELECTRIC CONTROL BOX GENERAL RECOMMENDATIONS please read the following safety precautions very carefully before installing the unit. SAFETY DIRECTIONS Follow the safety rules in forces when you are working on your appliance. The installation, commissioning and maintenance of these units should be performed by qualified personnel having a good knowledge of standards and local regulations, as well as experience of this type of equipment.
Page 6: Equipment Safety Data
EqUIpMENT SAFETY DATA Safety Data R410A Toxicity In contact with skin Skin contact with the rapidly evaporating liquid may cause tissue chilblains. In case of skin contact with the liquid, warm the frozen tissue with water and call a doctor. Remove contaminated clothing and footwear.
Page 7: Inspection And Storage
INSpECTION AND STORAGE At the time of receiving the equipment carefully cross check all the elements against the shipping documents in order to ensure that all the crates and boxes have been received. Confirmation of the type of unit ordered can be obtained by reading the maker’s plate.
Page 8: Dimensions
DIMENSIONS SEE AppENDIX HANDLING 13-15-17-19 25-31 The unit can also be lifted by using slings. A spreader must be used to avoid damaging the casing of the machine. NET WEIGHT Weight...
Page 9: Technical Specifications
TECHNICAL SpECIFICATIONS REFIGERATION SpECIFICATIONS Compressor type Scroll Scroll Scroll Scroll Scroll Scroll Scroll Compressor quantity Number of circuit Refrigerant HFC R410A Charge of circuit SEE NAmE pLATE Units are supplied pre-charged with refrigerant fluid. This equipment contains fluorinated gas with greenhouse gas effects covered by the Kyoto agreement. ELECTRICAL SpECIFICATIONS power supply 3+N /400 /50Hz...
Page 10: Operating Limits
OpERATING LIMITS Cooling mode Outside temperature m i n . f o r s t a n d a r d °C version Outside temperature min. with all seasons °C Inside temperature °C 21 / 15 21 / 15 21 / 15 21 / 15 21 / 15 21 / 15...
Page 11: Installation
INSTALLATION The unit is not designed to withstand weights or stresses from adjacent equipment, pipe work or constructions. Any foreign weight or stress on the unit structure could lead to a malfunction or a collapse with dangerous consequences for personnel and property. In such an event, the warranty shall be null and avoid.
Page 12: Condensate Drain Pain
CONDENSATE DRAIN pAIN Ø1" (25.4 mm) Syphon to be supplied by the installer The installer must imperatively initiate thte syphon action. 13-15-17-19 25-31 CAUTION For Heatpump models, where the outdoor temperature is likely to fall below +1°C, provide a system to prevent the syphon from freezing (e.g.
Page 13: Air Flow / Pression Adjustment
The HAN roof-mounted units are designed for ducted applications. In the event of an application without a duct network on the blowing side ("free" blowing) it is necessary to create an artificial pressure loss on the blowing side to avoid damage to the fan motor due to an abnormally high current draw. This pressure loss can be created for example by adding a perforated plate that will also have the effect of improving blown air distribution.
Page 14: Wiring Diagram And Legend
WIRING DIAGRAM AND LEGEND WIRING DIAGRAM SEE AppENDIX LEGEND N771 SE 3676 HAN 10/13 400V/230V +/- 10% 50Hz SE 3678 HAN 15/17/19 400V/230V +/- 10% 50Hz SE 3679 HAN 25/31 400V/230V +/- 10% 50Hz pOWER SUppLY This supply is protected upstream by an FFG general supply fuse holder, to be provided by the installer, in accordance with "ELECTRICAL SpECIFICATIONS".
Page 15: Control And Regulation
CONTROL AND REGULATION RT : Ambient temperature probe (option) ICT : Indoor exchanger temperature probe OCT : Outdoor exchanger temperature probe SM1 : Remote ON/OFF switch (not supplied) (remove the "SHm" shunt on the circuit board) ELECTRIC HEATING KIT K5/6 : Heating elements power contactors FM5/6 : Heating manual reset safety thermostat FA5/6 : Heating automatic reset safety thermostat...
Page 16: Electrical Connections
ELECTRICAL CONNECTIONS WARNING BEFORE CARRYING OUT ANY WORK ON THE EqUIpMENT, MAKE SURE THAT THE ELECTRICAL pOWER SUppLY IS DISCONNECTED AND THAT THERE IS NO pOSSIBILITY OF THE UNIT BEING STARTED INADvERTENTLY. NON-COMpLIANCE WITH THE ABOvE INSTRUCTIONS CAN LEAD TO INJURY OR DEATH BY ELECTROCUTION. The electrical installation must be performed by a fully qualified electrician, and in accordance with local electrical standards and the wiring diagram corresponding to the unit model.
Page 17: Connection Of Rcw2 And Remote Room Temperature
These units are equipped with a local switch used as general terminal board. The proximity switch can be mounted at two different locations: The switch can be padlocked. A circuit breaker or fuse holder ( not supplied ) must be installed on the main power supply of the unit in accordance with the circuit diagram;...
Page 18: Commissioning
COMMISSIONING pRE-START CHECK LIST ELECTRICAL CHECK 1. Electrical installation has been carried out according to unit wiring diagram and the Supply Authority Regulations. 2. size fuses or circuit breaker has been installed at the main switchboard. 3. Supply voltages as specified on unit wiring diagram. 4.
Page 19: Operating Check List
OpERATING CHECK LIST GENERAL Cheek for any unusual noises or vibration in the running components, particularly at the main blower. pHASE ROTATION pROTECTION If the phase at the power supply are not correct, the phase rotation protection device will prevent the machine from starting.
Page 20: Final Tasks
FINAL TASKS Operate the air conditioner in the presence of the user and explain all functions. As required, demonstrate filter removal, cleaning and replacement. IN CASE OF WARRANTY - MATERIAL RETURN pROCEDURE material must not be returned without permission of our After Sales Department. To return the material, contact your nearest sales office and ask for a "return form".
Page 21: General Inspection
GENERAL INSpECTION Carry out a visual inspection of the complete installation in service. Check the general cleanness of the installation, and check if the condensate evacuations is not blocked, specialy on the indoor coil, before the cooling season. Check the condition of the condesate tray by pulling it out of the casing. OpENING OF ACCESS pANELS All access panels are removable by unscrewing the self tapping retaining screws.
Page 22: Trouble Shooting
TROUBLE SHOOTING problem probable cause Solution Unit operates Insufficient refrigerant charge. Top up the refrigerant fluid charge. continuously but Reduced output Check the 4 way valve on the compressor and replace the without performing valve if necessary. Frozen suction line The overheating setting on the thermostatic Increase the setting.
Page 23 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO APPENDIX ANNEXE ANLAGE ALLEGATO ANEXO...
Page 24 APPENDIX DImENSIONS ..........III WIRING DIAGRAm ........VII HAN 10 ...............III HAN 10 / 13 .............VIII HAN 13 / 15 / 17 / 19 ..........IV HAN 15 / 17 / 19 ............IX HAN 25 / 31 ............... V HAN 25 / 31 ..............X REFRIGERANT CIRCUIT DIAGRAm ....VI...
Page 25 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO DImENSIONS DImENSIONS AbmESSUNGEN DImENSIONI DImENSIONES HAN 10 4 x Ø 12 1115 1115...
Page 26 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO HAN 13 / 15 / 17 / 19 6 x Ø 12 1345 1345...
Page 27 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO HAN 25 / 31 6 x Ø 12 1420 1420...
Page 28 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO REFRIGERANT CIRCUIT DIAGRAm SCHEmA DU CIRCUIT FRIGORIFIQUE KÄLTEKREISLAUFDIAGRAmm SCHEmA DEL CIRCUITO REFRIGERANTE ESQUEmA DEL CIRCUITO FRIGORIFÍCO : Compressor : Compresseur : Condenser : Condenseur : Evaporator : Evaporateur : Centrifugal fan : Ventilateur centrifuge : propellor fan : Ventilateur hélicoïde...
Page 29 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO WIRING DIAGRAm SCHEmAS ELECTRIQUES STROmLAUFPLANS SCHEmA ELETRICO ESQUEmA ELECTRICO TAKE CARE! These wiring diagrams are correct at the time of publication. manufacturing changes can lead to modifications. Always refer to the diagram supplied with the product. ATTENTION Ces schémas sont corrects au moment de la publication.
Page 30 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO HAN 10 / 13 > > T1PRI T1SEC < > VIII...
Page 31 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO HAN 15 / 17 / 19 > > > > T1PRI T1SEC < >...
Page 32 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO HAN 25 / 31 > > > > T1PRI T1SEC < >...
Page 33 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO AERAULIC ADJUSTmENT CARACTERITIQUES AERAULIQUES REGELUNG DES LÜFTERSYSTEmS REGOLAZIONE DEL SISTEmA DI TRATTAmENTO DELL'ARIA AJUSTE DEL ISTEmA AEROLICO HAN 10 WITHOUT AIR FILTER SANS FILTRE à AIR OHNE LUFTFILTER SENZA FILTRO AD ARIA SIN FILTRO A AIRE...
Page 34 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO HAN 13 WITHOUT AIR FILTER SANS FILTRE à AIR OHNE LUFTFILTER SENZA FILTRO AD ARIA SIN FILTRO A AIRE 2100 2200 2300 2400 2500 2600 2700 2800 2900 2640 WITH AIR FILTER AVEC FILTRE à...
Page 35 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO HAN 15 WITHOUT AIR FILTER SANS FILTRE à AIR OHNE LUFTFILTER SENZA FILTRO AD ARIA SIN FILTRO A AIRE Closed pulley Open pulley of 3 turns 2350 2450 2550 2650 2750 2850 2950 3050...
Page 36 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO HAN 17 WITHOUT AIR FILTER SANS FILTRE à AIR OHNE LUFTFILTER SENZA FILTRO AD ARIA SIN FILTRO A AIRE Closed pulley Open pulley of 3 turns 2550 2650 2750 2850 2950 3050 3150 3250...
Page 37 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO HAN 19 WITHOUT AIR FILTER SANS FILTRE à AIR OHNE LUFTFILTER SENZA FILTRO AD ARIA SIN FILTRO A AIRE Closed pulley Open pulley of 3 turns 3100 3200 3300 3400 3500 3600 3700 3800 3900 4000 4100 4200 3860 WITH AIR FILTER AVEC FILTRE à...
Page 38 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO HAN 25 WITHOUT AIR FILTER SANS FILTRE à AIR OHNE LUFTFILTER SENZA FILTRO AD ARIA SIN FILTRO A AIRE Closed pulley Open pulley of 3 turns 3850 39504050 4150 4250 43504450 4550 46504750 4850 4950 50505150 5250 4780 WITH AIR FILTER AVEC FILTRE à...
Page 39 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO HAN 31 WITHOUT AIR FILTER SANS FILTRE à AIR OHNE LUFTFILTER SENZA FILTRO AD ARIA SIN FILTRO A AIRE Closed pulley Open pulley of 3 turns 4450 4600 4750 4900 5050 5200 5350 5500 5650 5800 5950 6100 5530 WITH AIR FILTER AVEC FILTRE à...
Page 40 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO XVIII...
Page 41 RICHTLINIE ELEKTROMAGNETISHE vERTRÄGLICHKEIT 2004 / 108 / EG RICHTLINIE FüR AUSRüSTUNGEN UNTER DRUCK (DESp) 97 / 23 / EG UNTER MODUL A, KATEGORIE I : HAN 10 - 13 - 15 - 17 - 19 UNTER MODUL A1, KATEGORIE II : HAN 25 - 31 MIT KONTROLLE DURCH DEN TUv RHEINLAND 6, RUE HALévY –...
Page 42 AIRWELL I ndustrIe rance Route de Verneuil 27570 Tillières-sur-Avre FRANCE : +33 (0)2 32 60 61 00 & : +33 (0)2 32 32 55 13 As part of our ongoing product improvement programme, our products are subject to change without prior notice. Non contractual photos.
