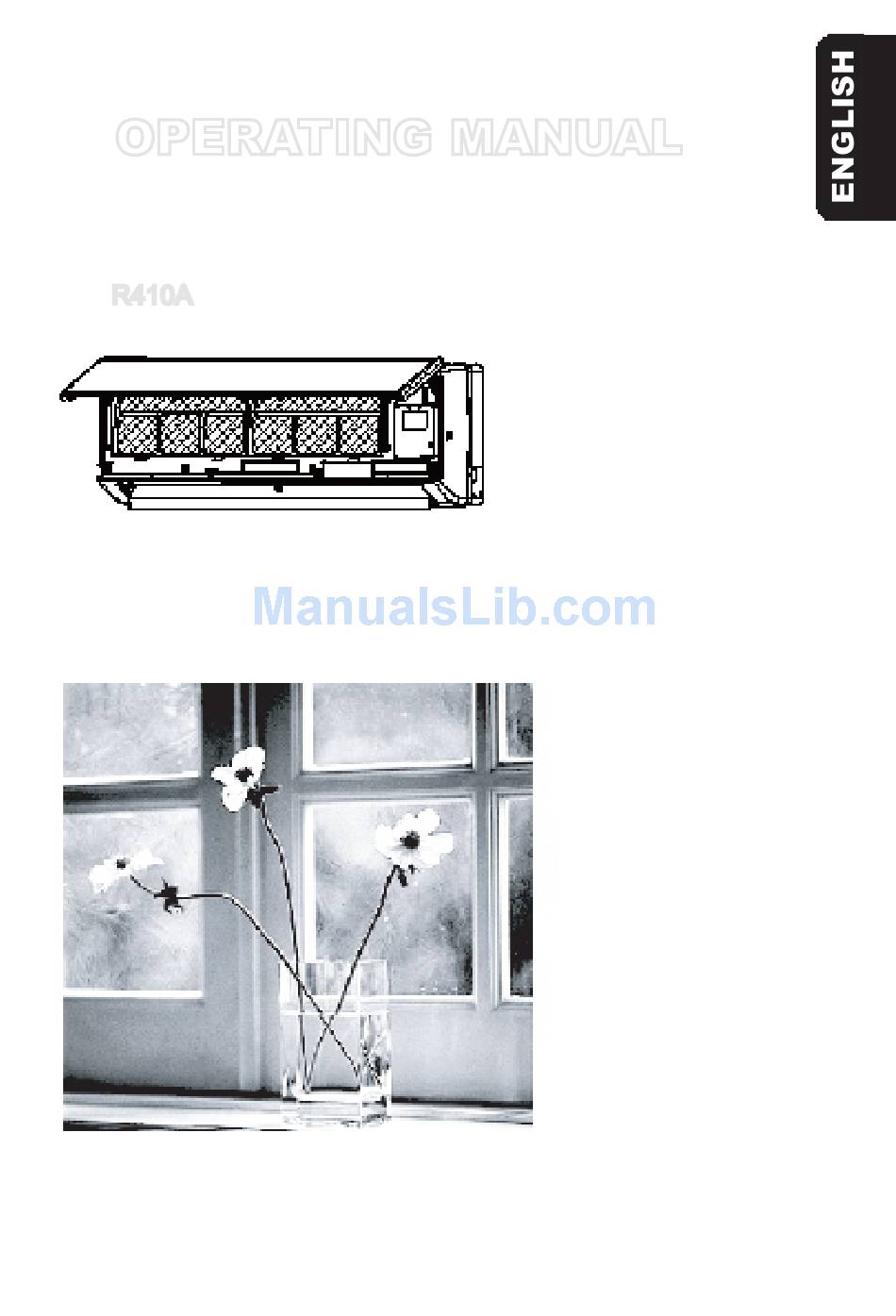

OPERATING MANUAL

HAF/JAF/FHA Wall Mounted Range
HAF/JAF/FHA Wall Mounted Range
R410A
R410A
Before using your air-conditioner,please read
this operating instruction carefully and keep it
for future reference.
CONTENT
PRECAUTIONS .............................. 2
NAME 0F EACH PART ................ 3-4
OPERATION TIPS .......................... 5
PROTECTION MODES .................. 6
TROUBLESHOOTING ................... 9
Thank you for
purchasing our

Room Air Conditioner.

Part No.468100399/01
Part No.468100399/01
OM HAF/JAF/FHA 1-N.1 GB
OM HAF/JAF/FHA 1-N.1 GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HAF Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Airwell HAF Series

  • Page 1: Table Of Contents

    OPERATING MANUAL HAF/JAF/FHA Wall Mounted Range HAF/JAF/FHA Wall Mounted Range R410A R410A CONTENT FEATURES AND FUNTIONS ..1 PRECAUTIONS ......2 NAME 0F EACH PART ....3-4 OPERATION TIPS ......5 PROTECTION MODES ....6 CARE AND MAINTENANCE ..7-8 TROUBLESHOOTING ....
  • Page 2: Features And Functions

    FEATURES AND FUNCTIONS VERTICAL AIR SWING AUTO CHANGE OVER Automatic swing of supply air in vertical The operation mode (cooling, dry, heating) direction. The flap moves automatically in is switched automatically to maintain the upward and downward direction to spread set temperature, and the set temperature is the conditioned air evenly throughout the kept constant at all times.
  • Page 3: Precautions

    PRECAUTIONS g Danger g Danger This sign warns of death or serious injury. This sign warns of damage to property. ● Do not attempt to install this air ● Provide occasional ventilation during use. conditioner by yourself. ● Do not direct air flow at fireplaces or ●...
  • Page 4: Name Of Each Part

    NAME OF EACH PART INDOOR UNIT INDOOR UNIT ❶ Air intake grill q Air intake grill ❷ Air filter w Air filter ❸ Supply air flap (louver) e Supply air flap (louver) ❹ Horizontal air flow deflecting r Horizontal air flow deflecting louvers louvers ❺ Air outlet...
  • Page 5 NAME OF EACH PART Note: If there are some functions your unit does not have, pls disregard the relevant instructions. If the air-conditioner can not be operated by the Remote Control unit, it can be turned on for cooling or heating, or completely turned off, by pressing MODE button on the air-conditioner The MODE button will change the operating status of the unit between- COOLING-HEAT-ING-STAND BY in turn, going with the indicator light revelant changing.
  • Page 6: Operation Tips

    OPERATION TIPS ● Set a suitable room temperature; excessively low room temperature is not good for your health and wastes electricity. Avoid frequent setting of the temperature. ● During cooling, avoid direct sun. Keep curtains and blinds closed. Close doors and windows to keep the cool air in the room.
  • Page 7: Protection Modes

    PROTECTION MODES (optional) Your air-conditioner includes several automatic protection modes which enables you to use it virtually at any time and in any season regardless of the outdoor temperature. Some of the protection modes are listed below: Mode Operations Protection Controlled remedy conditions from...
  • Page 8: Care And Maintenance

    CARE AND MAINTENANCE CARE AND MAINTENANCE CARE AND MAINTENANCE CARE AND MAINTENANCE CARE AND MAINTENANCE Before performing any maintenance procedure, make Before performing any maintenance procedure, make Before performing any maintenance procedure, make sure to disconnectthe air conditionerfrom the power. sure to disconnectthe air conditionerfrom the power.
  • Page 9 CARE AND MAINTENANCE CARE AND MAINTENANCE CARE AND MAINTENANCE CLEANING THE AIR CONDITIONER ● Wipe the unit with a soft dry cloth or clean it using a vacuum cleaner. ● Do not use hot water or volatile materials which could damage the surface of the air conditioner.
  • Page 10: Troubleshooting

    TROUBLESHOOTING Before calling for service, please check the following common malfunctions and correct it as needed. Problem Cause Remedy ● Unit does not ● Unit not connected to ● Plug in the power cord operate. Stand-by power indicator does not ●...
