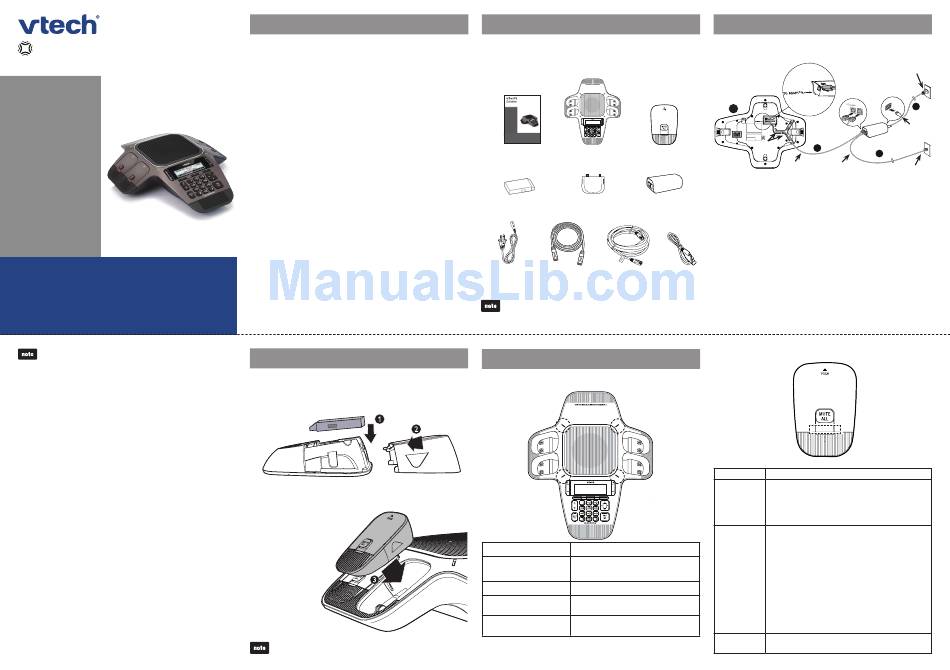

VTech ErisStation VCS754A Quick Start Manual

ErisStation
®
TM
SIP Conference Phone with Four Wireless Mics Wireless Conference System
Quick Start Guide
Model: VCS754A
Introduction
• The ErisStation SIP Conference Phone with Four Wireless Mics
requires connection to AC power to operate.
• The supplied power adapter is designed for use with only the
ErisStation SIP Conference Phone with Four Wireless Mics. It is
not PoE compatible and is not designed to power any network
devices. Do not connect the supplied power adapter to any other
network devices through the supplied DC power cable or any
other Cat5e ethernet cable.
• The ErisStation SIP Conference Phone with Four Wireless
Mics requires a network connection to an IP PBX to operate.
This quick start guide assumes that your network infrastructure
is established and that your IP PBX phone service has been
ordered and configured for your location. For more information
about installation options and phone setup, see the VCS754A
User's manual and the VCS754A Administrator and Provisioning
Manual.
• When the base unit is powered up, the status indicators turn
green for about two seconds.
• The AC power cord is intended for a vertical or floor mount
position. The prongs are not designed to hold the plug in place if it
is plugged into a ceiling or cabinet outlet.
Introduction
This quick start guide provides you with the basic installation,
setup, and operation instructions. A limited set of features are
described in abbreviated form.
You may refer to the user's manual for complete installation
and operation instructions for this innovative and feature-rich
VTech product.
ErisStation is a registered trademark of VTech Communications, Inc.
®
Orbitlink Wireless Technology TM is a trademark of VTech Communications, Inc.
Install the wireless mic battery
1. Place the battery (with the label THIS SIDE UP facing up)
into the battery compartment.
2. Slide the battery door until it clicks into place.
3. Place the wireless mics into the charging cradles until they
are flush.
The status indicator on the wireless mic turns orange when charging,
and turns off when the wireless mic is fully charged.
Parts checklist
Your VCS754A SIP Conference Phone with Four Wireless Mics
package contains the following items. Save your sales receipt and
original packaging in the event warranty service is necessary.
SIP Conference Phone with Four Wireless Mics
Quick Start Guide
Model: VCS754A
Base unit
Quick start guide
Battery ×4 Battery door ×4
Li-ion Polymer batteries.
(x4) (x4)
(x4) (x4)
Quick start guide
Quick start guide
Phone line cord connector cable
AC power cord (plug DC power cable Ethernet cable
shown may differ
depending on your
territory)
For customer service or warranty service, please contact our regional
offices or distributors in the country or region where you purchased
your product.
Status indicators overview
Status indicators on the base unit
Power up • Green for about two seconds.
On a call • Green during a call.
• Red when the call is muted.
Incoming call • Flashes green for incoming calls.
New message • Orange
(or missed call*)
Network failure or • Flashes orange
unregistered account
*Depending on your configuration.
Connect base unit
Connect the base unit as shown below.
4
Slots
Wireless mic ×4
DC power cable
1. Plug one end of the DC power cable into the power jack of
the base unit, and plug the other end into the VCS754A jack
Power adapter
of the power adapter. Route the cord through the slots.
2. Plug one end of the Ethernet cable into the LAN jack of the
power adapter, and plug the other end into a network switch
or router.
3. Plug the small end of the AC power cord into the power jack
of the adapter, and plug the large end into a wall outlet not
controlled by a switch.
Power Line
Adapter Connection box
USB cable
4. Optional: Plug the mini-USB end of the USB cable to the
base unit. Connect the other end of the USB cable to a PC
(to use PC speakerphone mode).
Status indicator on the wireless mic
Power up • Orange for about two seconds.
On the cradle • Orange when charging in the cradle except
during registration.
• Flash red and green alternately when the
non-registered wireless mic is charging on the
cradle.
Off the cradle • Green during a call.
• Red when the call is muted.
• Off when the wireless mic is in idle mode or
without a battery.
• Flashes orange when the wireless mic's battery
is low.
• Flashes green when there is an incoming call.
• Flashes red slowly when the wireless mic is:
• out of range; or
• not registered; or
• off cradle during paging (with a paging tone).
During • Flashes red and green alternately.
registration
Wall outlet
3
VCS 754
LAN
AC power cord
1
2
Ethernet cable
Network switch
or router
