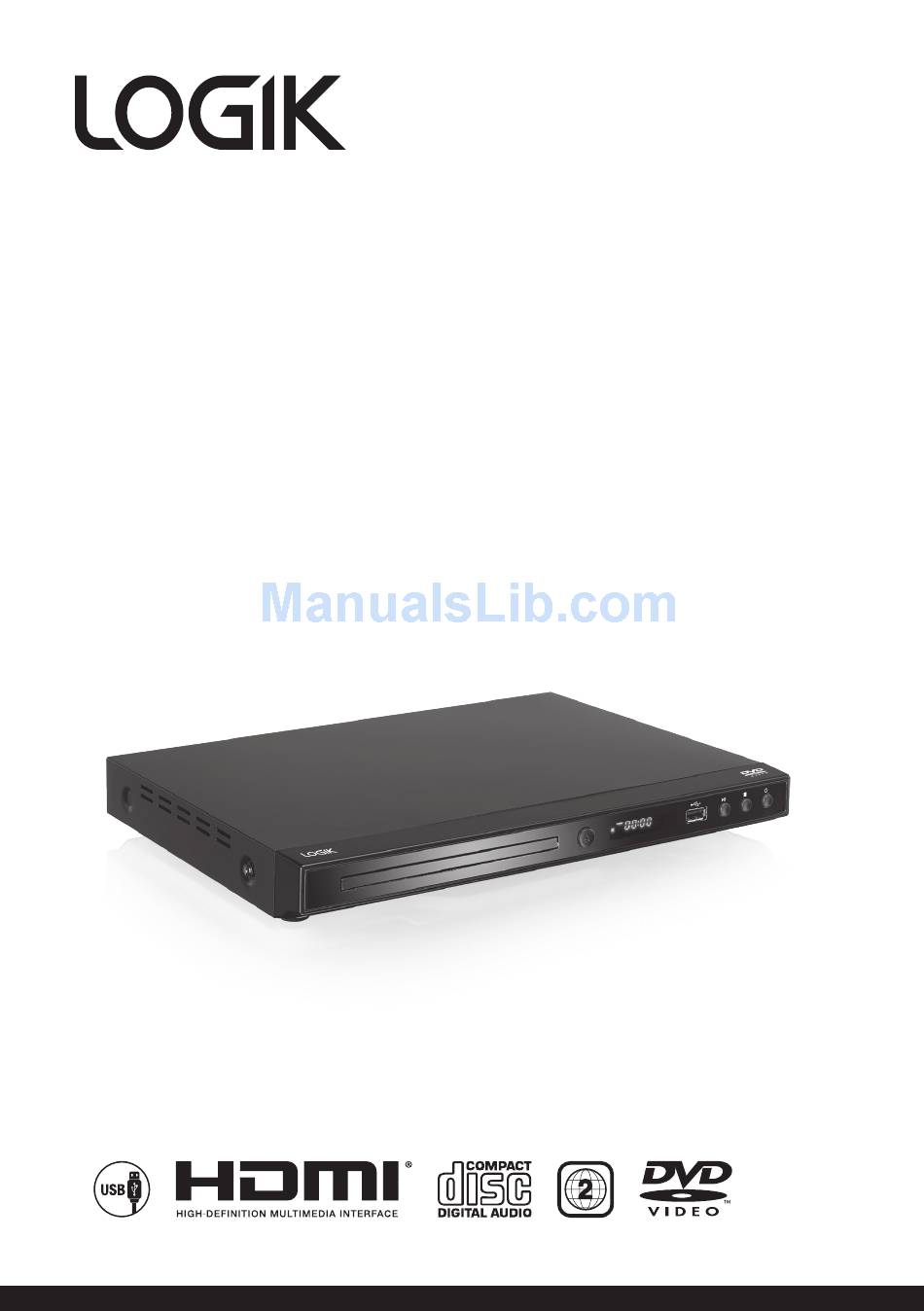

    DVD player with HD upscaling Instruction Manual L2HDVD17...

  • Page 3: Table Of Contents

    Contents Safety Warnings ............................. 5 Unpacking .............................. 7 Product Overview ..........................8 Front View .....................................8 Rear View ....................................8 Remote Control ..................................9 Battery Installation for the Remote Control ......................11 Remote Control Operation Range ..........................12 Connections ............................13 Using the OPTICAL/HDMI/SCART Connection .....................13 Connecting to the Mains Socket ..........................13 Using a USB Device ..........................14 Compatible Disc Types ........................15...
  • Page 4 CD/JPEG Disc Operation ........................20 Playing an Audio or a JPEG Picture CD ........................20 Pause Playback ................................20 Stop Playback ...................................20 Volume Adjustment ...............................20 Selecting DISC GOTO / TRACK GOTO / SELECT TRACK ..................20 Previous and Next ................................20 Fast Rewind and Fast Forward ...........................21 Image Rotation ................................21 Zoom ....................................21 Slide-show Effect ................................21...

  • Page 5: Safety Warnings

    Safety Warnings Ventilation Read all the instructions carefully before using the unit and keep them for future reference. • To prevent the risk of electric shock or Retain the manual. If you pass the unit onto a fire hazard due to overheating, ensure third party make sure to include this manual.
  • Page 6 Service • Never let anyone especially children push anything into the holes, slots or any other • To reduce the risk of electric shock, do not openings in the case - this could result in a remove screws. The unit does not contain fatal electric shock.

  • Page 7: Unpacking

    Thank you for purchasing your new product. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

  • Page 8: Product Overview

    Product Overview Front View 1. Disc Tray 5. USB Slot Load a disc into the disc drive. Connection for a USB Flash Drive. 2. OPEN/CLOSE 6. PLAY/PAUSE button button Open and close the disc tray. Start playback/stop playback momentarily 3. Display Screen 7.

  • Page 9: Remote Control

    Remote Control 1. POWER Switch the unit between ON and OFF mode. 2. 0–9, 10+ SUBTITLE Select the numeric items in a menu. LANGUAGE 3. SETUP Display the Setup Menu of the DVD player. 4. CURSOR CLEAR PROG Move up, down, left and right in a menu. 5.
  • Page 10 16. OPEN/CLOSE Open or close the DVD disc tray. 17. SUBTITLE Switch between different subtitle languages. (Available languages depend on the DVD features.) SUBTITLE 18. LANGUAGE LANGUAGE Press to ch ange the OSD language. 19. OSD (On screen Display) Display the disc information. 20.

  • Page 11: Battery Installation For The Remote Control

    Battery Installation for the Remote Control 1. Press and lift the back cover up to 2. Insert two AAA size batteries. Make open the battery compartment of the sure the battery match those shown remote control. in the (+) and (–) ends of the battery compartment.

  • Page 12: Remote Control Operation Range

    Remote Control Operation Range • The remote control sensor on the front unit is sensitive to the remote control’s commands up to a maximum of 5 metres away and within a maximum 30° 30° of a 60° arc. Within about 5 m • Please note that the operating distance may vary depending on the brightness of the room.

  • Page 13: Connections

    Connections Using the OPTICAL/HDMI/SCART Connection Television OPTICAL Cable (not included) HDMI Cable SCART Cable (not included) (not included) OPTICAL HDMI SCART 1. Connecting to a TV with an Optical Cable Use an Optical cable (not included) to connect between the DVD player’s OPTICAL socket and the TV’s OPTICAL IN socket.

  • Page 14: Using A Usb Device

    Using a USB Device You can play or view files from a USB device. 1. Connect the USB device directly to the USB slot on the DVD player. 2. Press the SOURCE button on the remote control to enter USB page. 3.

  • Page 15: Compatible Disc Types

    Compatible Disc Types Disc Types Disc Logo Recorded Content DVD-VIDEO (Digital Versatile Disc) AUDIO + VIDEO DVD±RW (Audio/Video format or JPEG files) AUDIO (MP3) + JPEG DVD+ReWritable DVD±R (DVD Recordable - Audio/Video AUDIO (MP3) + JPEG format or JPEG files) DVD+R CD-R (CD Recordable - Audio/Video format or AUDIO (MP3) + JPEG...

  • Page 16: Powering On/Off

    When you first connect the unit to the mains socket, the unit will be in ON mode. The unit’s display will show “HI”, and then “LOAD”. • The LOGIK DVD logo (start-up picture) will appear on the TV’s screen and the unit will start loading the disc automatically (if available).

  • Page 17: Pause Playback

    Pause Playback 1. Press the PLAY/PAUSE button on the unit or remote control to pause playback. 2. Press the PLAY/PAUSE button again on the unit or remote control to resume normal playback. Volume Adjustment 1. Press the VOLUME+/– button on the remote control to adjust the volume. 2.

  • Page 18: Repeat Mode

    Repeat Mode Press the REPEAT button on the remote control repeatedly to select different repeat modes. Action DVD Description CD Description USB/JPEG Disc First Press Repeat Chapter Repeat Track Shuffle Second Press Repeat Title Repeat All Random Third Press Repeat All Repeat off Single –...

  • Page 19: Subtitle Language

    Subtitle Language Press the SUBTITLE button on the remote control repeatedly to switch between different subtitle languages that are available on the disc. Info You can view disc information (such as current title / chapter / track number, total playing time or remaining time on the disc) without interrupting the disc playback.

  • Page 20: Cd/Jpeg Disc Operation

    CD/JPEG Disc Operation Playing an Audio or a JPEG Picture CD 1. While in ON mode, press the OPEN/CLOSE button and the disc door will open. 2. Place the CD/JPEG disc with the label side up into the CD compartment, and then press the OPEN/CLOSE button to close the disc door.

  • Page 21: Fast Rewind And Fast Forward

    Fast Rewind and Fast Forward 1. Press the button on the remote control to fast rewind / fast forward through the disc. Each time the button on the remote control is pressed, the fast rewind / fast forward motion speed changes. There are 5 levels of speed available: ×2, ×4, ×8, ×16 and ×32.

  • Page 22: Customising The General Settings

    Customising the General Settings 1. Press the SETUP button to display the setup menu. button to select GENERAL 2. Press the SETUP PAGE. - - GENERAL SETUP PAGE - - 3. Press the button to select the TV DISPLAY Wide 4:3 PANSCAN ANGLE MARK 4:3 LETTERBOX...

  • Page 23: Customising The Audio Settings

    AUTO STANDBY • Select 3 HOURS or 4 HOURS to set the idle length. While idling, a pop up warning window will display for 10 seconds before the unit turns itself off. Press any button to extend the time. • Select OFF to turn off the auto standby function. 4.

  • Page 24: Customising The Video Settings

    Customising the Video Settings 1. Press the SETUP button to display the setup menu. - - VIDEO SETUP PAGE - - button to select VIDEO 2. Press the VIDEO OUTPUT RESOLUTION SETUP PAGE. COLOR SETTING HDMI SETUP 3. Press the button to select the following options and then press the button to change the setting.

  • Page 25: Customising The Preferences

    Customising the Preferences 1. The preference setting is only active when there is no disc in the DVD player or the - - PREFERENCE PAGE - - DVD player is in STOP mode. The setting TV TYPE AUDIO ENGLISH AUTO will be saved and effective whenever the SUBTITLE FRENCH...
  • Page 26 PARENTAL This feature allows you to block disc playback with specific ratings. The rating levels are from 1 to 8 and are country dependent. You can prohibit the playing of certain discs that are not suitable for your children, or you can have certain discs played with alternative scenes.

  • Page 27: Customising The Password Settings

    Customising the Password Settings 1. Press the SETUP button to display the setup menu. - - PASSWORD SETUP PAGE - - button to select PASSWORD 2. Press the PASSWORD MODE PASSWORD SETUP PAGE. 3. Press the button to select the following options and then press the button to change the setting.

  • Page 28: Maintenance

    Maintenance Cleaning the Unit Ensure the unit is fully unplugged from the mains socket before cleaning. • To clean the unit, wipe the case with a slightly moist, lint-free cloth. • Do not use any cleaning fluids containing alcohol, ammonia or abrasives. • Do not spray an aerosol at or near the unit.

  • Page 29: Hints And Tips

    Hints and Tips PROBLEM SOLUTION No operation can be • Check the batteries in the remote control. They may need performed with the replacing. remote control. • Operate the remote control at a distance of no more than 6m. • Removes batteries and hold down one or more buttons for several minutes to drain the microprocessor inside the remote control to reset it.

  • Page 30: Specifications

    Press the button on the unit or the been idle for a few remote control to switch on the unit. minutes Specifications Model L2HDVD17 Power AC 100V - 240V, 50/60Hz Power Consumption <0.5 W (in Standby mode)
  • Page 32 HDMI Licensing Administrator, Inc. in the United States and other countries. All trademarks are the property of their respective owners and all rights are acknowledged. DSG Retail Ltd. (co. no. 504877) 1 Portal Way, London, W3 6RS, UK IB-L2HDVD17-171012V1...
