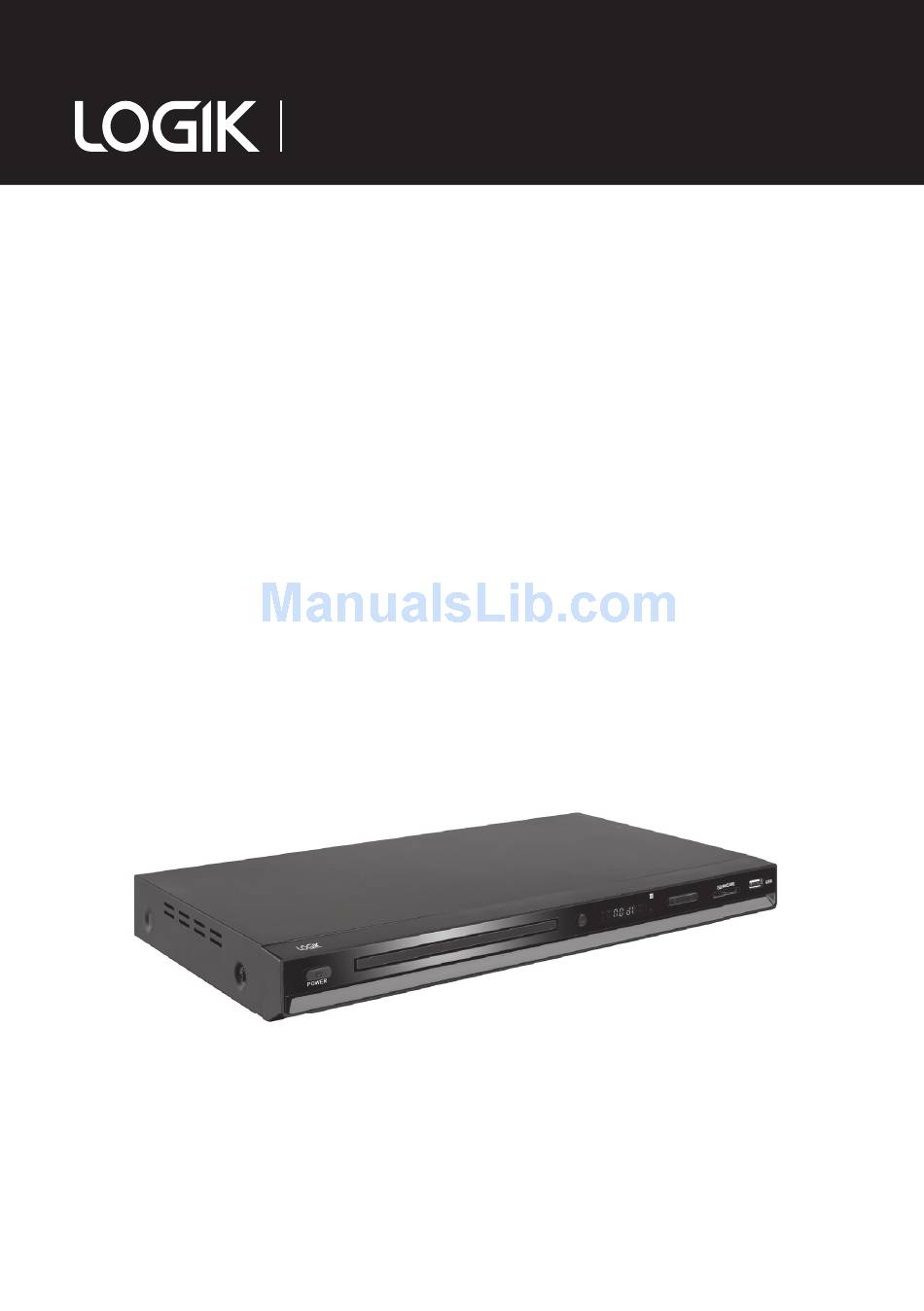

  • Page 1 Instruction Manual DVD Player with HD Upscaling L2HDVD12...

  • Page 2: Table Of Contents

    Contents Safety Warnings ..........................5 Unpacking ............................7 Product Overview ..........................8 Front Panel ................................8 Rear Panel .................................. 8 Remote Control ............................... 9 Battery Installation for the Remote Control ....................11 Remote Control Operation Range ........................11 Connections ..........................12 Audio / Video Connections ..........................12 Audio Connections Only (Optional) .......................13 Connecting to the Mains Socket ........................13 Using a USB Device or SD/MS/MMC Card ..................14...
  • Page 3 PAL / NTSC ................................19 Aspect Ratio ................................19 Clear ...................................19 Menu ..................................19 Title ....................................19 JPEG Disc Playback ........................20 Repeat ..................................20 Image Rotation ..............................20 Zoom ..................................20 Slide-show Effect ..............................20 Customising the General Settings....................21 Customising the Audio Settings ....................22 Customising Dolby Settings .......................23 Customising the Video Settings ....................24 Customising Preference Settings ....................24 Maintenance ..........................26...

  • Page 4: Safety Warnings

    Safety Warnings Ventilation • Read all the instructions carefully before using the unit and keep them for future • To prevent the risk of electric shock or reference. fire hazard due to overheating, ensure • Retain the manual. If you pass the unit that curtains and other materials do not onto a third party make sure to include this obstruct the ventilation vents.
  • Page 5 • Children should be supervised to ensure CAUTION that they do not play with the unit and the RISK OF ELECTRIC SHOCK DO NOT OPEN remote control. The lightning flash with arrowhead • Never let anyone especially children push symbol, within an equilateral anything into the holes, slots or any other triangle, is intended to alert the user openings in the case - this could result in a...

  • Page 6: Unpacking

    Thank you for purchasing your new Logik Dual DVD Player. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.

  • Page 7: Product Overview

    Product Overview Front Panel 1. POWER button 5. Remote Control Sensor Turn the power on or restores the DVD 6. PLAY/PAUSE button player to standby mode. Start playback/stop playback momentarily 2. Disc Tray Load a disc into the disc drive. 7.

  • Page 8: Remote Control

    Remote Control 1. OPEN/CLOSE Open or close the DVD disc tray. 2. 0–9, 10+ Select the numeric items in a menu. 3. MENU Enter or exit the disc contents menu. 4. ENTER Confirm a selection on the menu screen 5. CURSOR Move up, down, left and right in the Setup Menu.
  • Page 9 17. POWER Switch the unit on/off. 18. VOLUME +/– Increase and decrease the volume. 19. MUTE Mute and restore DVD sound output. 20. SETUP Display the Setup Menu of the DVD player. 21. NEXT Skip to the next title, chapter or track. 22.

  • Page 10: Battery Installation For The Remote Control

    Battery Installation for the Remote Control 1. Press and lift the back cover up to 2. Insert two AAA size batteries. Make open the battery compartment of the sure the battery match those shown remote control. in the (+) and (–) ends of the battery compartment.

  • Page 11: Connections

    Connections Audio / Video Connections Television SCART Cable (not included) HDMI Cable (not included) Component Video Cable (not included) Pb/Cb Pr/Cr VIDEO AV Cable (included) 1. Connecting to a TV with an HDMI Cable Use an HDMI cable (not supplied) to connect between the DVD player’s HDMI OUT and the TV’s HDMI IN.

  • Page 12: Audio Connections Only (Optional)

    4. Connecting to a TV with AV Cable Use audio/video cables (not supplied) to connect between the DVD player’s AUDIO/ VIDEO OUT and the TV’s AUDIO/VIDEO IN. Connection Colour Audio (L) White Audio (R) Video Yellow Audio Connections Only (Optional) Pb/Cb Pr/Cr VIDEO...

  • Page 13: Using A Usb Device Or Sd/Ms/Mmc Card

    Using a USB Device or SD/MS/MMC Card General Operation You can play or view picture files (JPEG) from a USB device or SD/MS/MMC card. 1. Connect the USB device or SD/MS/MMC card directly to the USB slot or SD/MS/MMC slot on the DVD player. 2.

  • Page 14: Compatible Disc Types

    Compatible Disc Types Disc Types Disc Logo Recorded Content DVD-VIDEO (Digital Versatile Disc) AUDIO + VIDEO DVD±RW (Audio/Video format or JPEG files) AUDIO + VIDEO + JPEG DVD+ReWritable DVD±R (DVD Recordable - Audio/Video AUDIO + VIDEO + JPEG format or JPEG files) CD-R (CD Recordable - Audio/Video format or AUDIO + VIDEO + JPEG JPEG files)

  • Page 15: Powering On/Off

    Powering ON/OFF Connect the mains plug to the mains socket. The unit will enter STANDBY mode. “OFF” will show on the display. Press the POWER button on the unit to switch the unit on. “LOAD” will show on the • display.

  • Page 16: Pause Playback

    Pause Playback Press the PLAY/PAUSE button to pause/resume playback. Stop Playback 1. Press the STOP button to go to pre-stop mode, the TV screen will display “Press Play Key To Continue”. With some discs, the DVD player can recall the stopped location, such as on DVDs.

  • Page 17: Audio Channel

    Audio Channel Press the AUDIO button on the remote control repeatedly to select different audio languages. Subtitle Language Press the SUBTITLE button on the remote control repeatedly to switch between different subtitle languages that are available in the disc. Display During playing, press the OSD button on the remote control to show the Title Elapsed / Title Remain / Chapter Elapsed / Chapter Remain.

  • Page 18: Goto

    2. Press the ANGLE button repeatedly on the remote control to change the scene to the next recorded angle. • After approximately two seconds, playback will continue from the new angle you selected. • This function can only be used for discs on which scenes shot from multiple angles have been recorded.

  • Page 19: Jpeg Disc Playback

    JPEG Disc Playback When a JPEG disc is inserted into the DVD player, the slide show will be automatically start. Press the STOP button to enter the navigation menu. buttons to select a file, then press the PLAY/PAUSE • In the menu, use the button to start the slide show.

  • Page 20: Customising The General Settings

    Customising the General Settings 1. During Stop mode. Press the SETUP button General Audio Dolby Video Preference - - General Setup Page - - to display the setup menu. TV Display Wide Angle Mark buttons to select General 2. Press the OSD Lang Setup Page.

  • Page 21: Customising The Audio Settings

    Customising the Audio Settings 1. During Stop mode. Press the SETUP button General Audio Dolby Video Preference - - Speaker Setup Page - - to display the setup menu. Downmix SPDIF Output buttons to select Speaker 2. Press the Setup Page. 3.

  • Page 22: Customising Dolby Settings

    Customising Dolby Settings 1. During Stop mode. Press the SETUP button General Audio Dolby Video Preference to display the setup menu. - - Dolby Digital Setup - - Dual Mono buttons to select Dolby 2. Press the Dynamic Setup Page. 3.

  • Page 23: Customising The Video Settings

    Customising the Video Settings 1. During Stop mode. Press the SETUP button General Audio Dolby Video Preference to display the setup menu. - - Video Setup Page - - Output Mode buttons to select Video Setup 2. Press the Page. 3.
  • Page 24 Disc Menu Allows you to choose the preferred menu language of your disc. If the preferred language is not available on the disc, the DVD player will automatically use the DVD disc’s default language. Parental This feature allows you to block disc playback with specific ratings.

  • Page 25: Maintenance

    Maintenance Cleaning the Unit Ensure the unit is fully unplugged from the mains socket before cleaning. • To clean the unit, wipe the case with a slightly moist, lint-free cloth. • Do not use any cleaning fluids containing alcohol, ammonia or abrasives. •...

  • Page 26: Hints And Tips

    Hints and Tips PROBLEM SOLUTION No operation can • Check the batteries in the remote control. They may need be performed replacing. • Operate the remote control at a distance of no more than 6m. with the remote control. • Removes batteries and hold down one or more buttons for several minutes to drain the microprocessor inside the remote control to reset it.

  • Page 27: Specifications

    DVD player. Picture freezes • Check the disc for fingerprint or scratches, and clean with a momentarily soft cloth wiping from centre to edge. during playback. Specifications L2HDVD12 Model Power Main Unit AC 110-240V~ 50/60Hz Power Consumption Feature Decoding Format...
  • Page 28 HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. All trademarks are the property of their respective owners and all rights are acknowledged. DSG Retail Ltd. (co. no. 504877) Maylands Avenue, Hemel Hempstead, Herts., HP2 7TG, UK IB-L2HDVD12-140523V6...
