Summary of Contents for Logik L2HDVD11

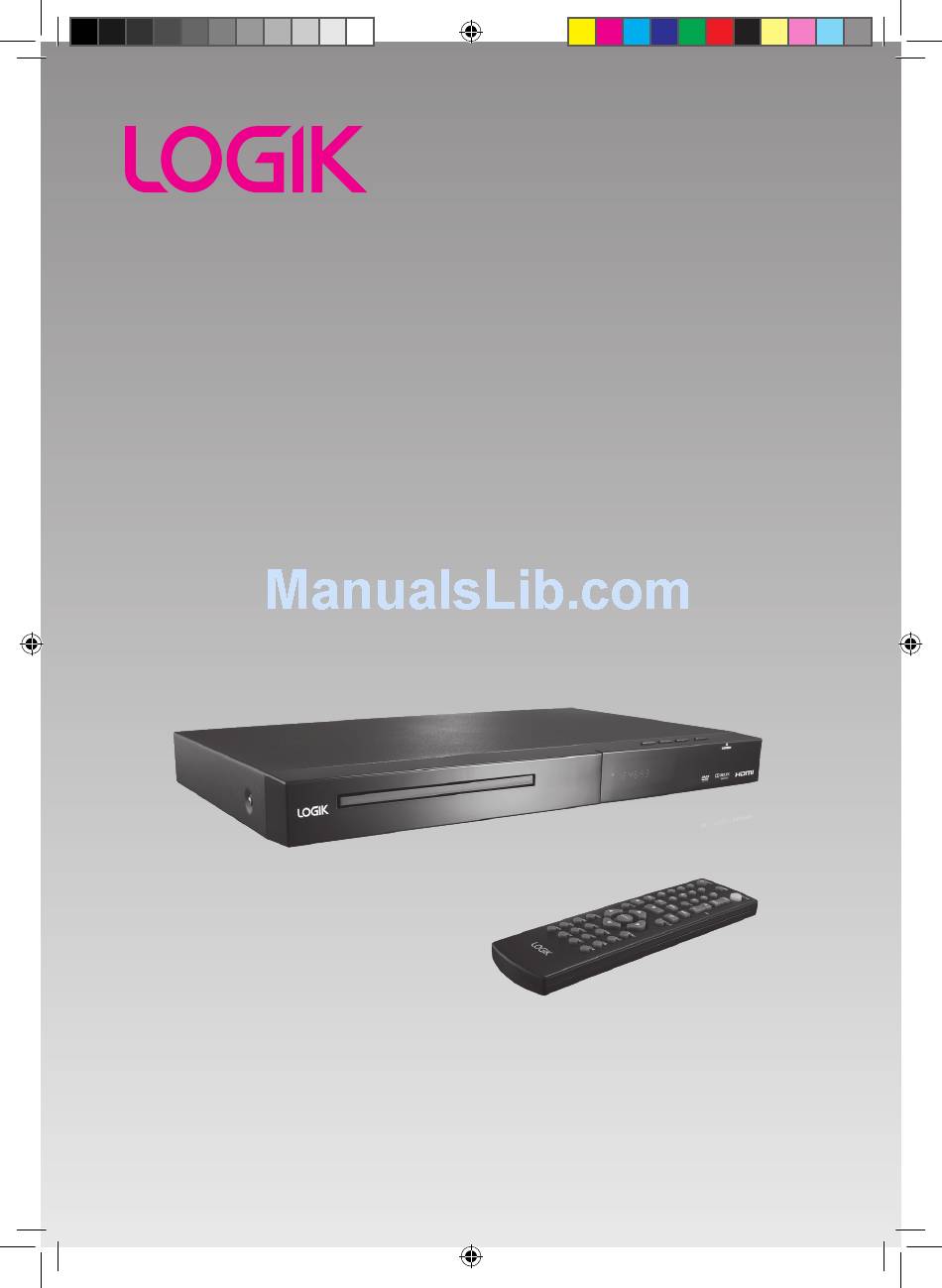

- Page 1 DVD Player with LED Display Instruction Manual L2HDVD11 L2HDVD11_IB_final110330.indd 1 30/03/2011 3:45 PM...
- Page 2 L2HDVD11_IB_final110330.indd 2 30/03/2011 3:45 PM...
-
Page 3: Table Of Contents
Contents Unpacking ............................5 Product Overview ..........................6 Front Panel ................................6 Rear Panel .................................. 6 Remote Control ............................... 7 Battery Installation for the Remote Control ....................9 Remote Control Operation Range ........................9 Connections ..........................10 Audio / Video Connections ..........................10 Audio Connections Only (Optional) .......................11 Connecting to the Mains Socket ........................11 Compatible Disc Types ........................12 Supported Formats ..............................12... - Page 4 JPEG File Playback ........................17 Image Rotation ..............................17 Zoom ..................................18 Thumbnail Preview ..............................18 System Setup ..........................19 General Setup Page ........................19 TV Display ................................19 Angle Mark ..............................20 OSD (On Screen Display) Language .......................20 Closed Captions..............................20 Screen Saver ................................20 Last Memory ................................20 Audio Setup Page ........................21 Analog Audio Page...............................21 Digital Audio Page ..............................21 Dolby Digital Setup Page ......................21...
-
Page 5: Unpacking
Thank you for purchasing your new Logik DVD Player with LED Display. These operating instructions will help you use it properly and safely. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. -
Page 6: Product Overview
Product Overview Front Panel 2 3 4 1. Disc Tray 5. STANDBY button To load a disc into the disc drive. To turn the power on or restores the DVD player to standby mode. 2. OPEN/CLOSE button To open and close the disc tray. 6. -
Page 7: Remote Control
Remote Control 1. STANDBY To turn the power on or restore the DVD player to standby mode. 2. SETUP To display the Setup Menu of the DVD player. 3. 0–10+ To select the numeric items in a menu. 4. F.REV To fast reverse during playback. - Page 8 16. OPEN/CLOSE To open or close the DVD disc tray. 17. A-B RPT To repeat playback between 2 particular points on a disc. 18. OSD (On screen Display) To display the disc information. 19. VOLUME +/– To increase and decrease the volume. 20.
-
Page 9: Battery Installation For The Remote Control
Battery Installation for the Remote Control 1. Press and lift the back cover up to 2. Insert two AAA size batteries. Make open the battery compartment of sure to match the (+) and (–) ends of the remote control. the battery compartment. 3. -
Page 10: Connections
Connections Audio / Video Connections HDMI Cable Television (not included) SCART Cable (not included) S-Video Cable (not included) Component Video Cable Video Plug of AV Cable (not included) (not included) 3 4 5 Audio Cable (not included) (All cables not supplied.) 1. -
Page 11: Audio Connections Only (Optional)
Audio Connections Only (Optional) Stereo System COAXIAL Cable (not included) 1. Connecting to an Amplifier Equipped with a Digital Audio Input and TV Use a COAXIAL cable (not supplied) to connect between the DVD player’s COAXIAL OUT and the amplifier’s COAXIAL IN. Connecting to the Mains Socket 1. -
Page 12: Compatible Disc Types
Compatible Disc Types Disc Types Disc Logo Recorded Content DVD-VIDEO (Digital Versatile Disc) AUDIO + VIDEO DVD±RW (Audio/Video format or JPEG files) AUDIO + VIDEO + JPEG DVD+ReWritable DVD±R (DVD Recordable - Audio/Video AUDIO + VIDEO + JPEG format or JPEG files) CD-R (CD Recordable - Audio/Video format AUDIO + VIDEO + JPEG or JPEG files) -
Page 13: Start Up
Start Up Press the STANDBY button on the DVD player or remote control. Turn on the TV and select the video input connected to the DVD player. Basic Playback 1. Press the OPEN/CLOSE button to open the disc tray, place a disc into the disc tray with the label facing up. -
Page 14: Fast Forward And Fast Reverse
Fast Forward and Fast Reverse 1. Press the F.FWD button to fast forward through the disc. Each time the F.FWD button is pressed, the fast forward motion speed changes. 2. Press the PLAY button to resume normal playback. 3. Press the F.REV button to fast reverse through the disc. -
Page 15: Advanced Playback
Advanced Playback The following functions are applicable only to DVD discs. If other disc formats are played, the screen display and operation will be different. Press the OSD button and the screen will display some information about the disc, such as: “Title Elapsed”, ”Title Remain”, ”Chapter Elapsed”, ”Chapter Remain” and ”Display Off”. -
Page 16: Source
Source Press the SOURCE button on the remote control to switch between DVD, USB and Memory Card as the source. Memory Card USB Compatibility:USB 2.0 up to 16GB miximum capacity. Memory Card Compatibility: SD/MHC/MS up to 8GB maximum capacity. A-B Repeat Repeat a section between points A and B within a Title / Chapter / Track. -
Page 17: Audio Channel
Audio Channel Press the AUDIO button on the remote control repeatedly to change the audio mode. For example: Audio 1/2: AC3 2 CH English Audio 2/2: AC3 D 5.1 CH English The number of audio tracks available depends on the disc. JPEG File Playback •... -
Page 18: Zoom
Zoom The ZOOM button is used to turn on or off this function. When this mode is on, the • pictures will be displayed at the last ratio selected by the user. A message on the screen will indicate the current zoom ratio. •... -
Page 19: System Setup
System Setup When you press the SETUP button on the remote control, the setup menu will be displayed. 1. Within the setup menu, you can use the buttons on the remote control to move the cursor, and then press the ENTER button to make your selection. Press button to return to the previous menu. -
Page 20: Angle Mark
Angle Mark You can select a particular camera angle when playing a DVD that offers multiple angles. OSD (On Screen Display) Language Allows you to select the setup menu and OSD language. Closed Captions For hearing-impaired people, the program can be displayed with recorded explanatory captions. -
Page 21: Audio Setup Page
Audio Setup Page Analog Audio Page Downmix Setup Set front speakers to Lt/Rt or Stereo. Lt / Rt • Select this option if your DVD player is connected to a Dolby decoder. Stereo • Select this option to change channel output to stereo which delivers sound from only the ANALOG AUDIO SETUP PAGE two front speakers. -
Page 22: Video Setup Page
Video Setup Page Video Output RGB, YUV and CVBS video signal can be set in setup page or by pressing the V-MODE button on the remote control. If you have connected the unit with the component video cable, please select “YUV” as the video output. Resolution You can select the resolution output in the setup page or by pressing the RESOLUTN button on the remote control of the DVD player from HDMI to match your TV. -
Page 23: Preference Setup Page
Preference Setup Page The preference setting is only active when there is no DVD disc in the DVD player or the DVD player is in STOP mode. The setting will be saved and effective whenever the DVD player is power on. TV Type In order for the disc to play, the colour system of the DVD player, disc and TV should match. -
Page 24: Parental
Parental This feature allows you to block disc playback with specific ratings. The rating levels are from 1 to 8 and are country dependent. You can prohibit the playing of certain discs that are not suitable for your children, or you can have certain discs played with alternative scenes. -
Page 25: Maintenance
Maintenance Handling Discs • Do not touch the playback side of the disc. • Do not attach paper or tape to the disc. Playback side Cleaning Discs • Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the centre outwards with a soft cloth. -
Page 26: Hints And Tips
Hints and Tips PROBLEM SOLUTION No operation can • Check the batteries in the remote control. They may need be performed with replacing. the remote control. • Operate the remote control at a distance of no more than • Removes batteries and hold down one or more buttons for several minutes to drain the microprocessor inside the remote control to reset it. -
Page 27: Specifications
PROBLEM SOLUTION The DVD player • Insert a readable disc with the playback side facing down. does not start the • Check the disc type, colour system (PAL/NTSC) and region playback. code. • Check for any scratches or smudges on the disc. •... -
Page 28: Safety Warnings
Safety Warnings • Read all the instructions carefully before Ventilation using the unit and keep them for future • To prevent the risk of electric shock or reference. fire hazard due to overheating, ensure • Retain the manual. If you pass the unit that curtains and other materials do not onto a third party make sure to include this obstruct the ventilation vents. - Page 29 Batteries CAUTION • Batteries used in the remote control for this RISK OF ELECTRIC SHOCK unit are easily swallowed by young children DO NOT OPEN and this is dangerous. The lightning flash with arrowhead • Keep loose batteries away from young symbol, within an equilateral children and make sure that the battery triangle, is intended to alert the...
- Page 30 HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. All trademarks are the property of their respective owners and all rights are acknowledged. DSG Retail Ltd • Maylands Avenue • Hemel Hempstead Herts • HP2 7TG • England (P.N. L2HDVD11-IB-001) L2HDVD11_IB_final110330.indd 30 30/03/2011 3:45 PM...
- Page 31 L2HDVD11_IB_final110330.indd 31 30/03/2011 3:45 PM...
- Page 32 L2HDVD11_IB_final110330.indd 32 30/03/2011 3:45 PM...
