- Page 1 IPS-AM ORDERCODE D6503...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. The DAP Audio IPS-AM brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products.
-
Page 3: Table Of Contents
DAP Audio DAP Audio IPT-AM Guide Warning................................. Safety-instructions........................... Operating Determinations......................Connecting to the mains....................... Description..............................Features............................Overview Front panel........................Overview Back panel........................Operation..............................Connecting the device........................Linking more units..........................Using the active up/down switches....................Serial linking............................Audio connecting........................... Maintenance..............................Troubleshooting............................Product Specifications.......................... -
Page 4: Warning
WARNING CAUTION! Keep this system away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this system have to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
The best way to avoid ground loops is connecting the electrical system ground to one central point ("star" system). In this case the mixer can act as a central point. Before changing the ground, always turn off your amplifier. Please read this manual carefully and keep it for future reference. Remember that the amplifier has a better value on the market, if you save the carton and all packing materials. -

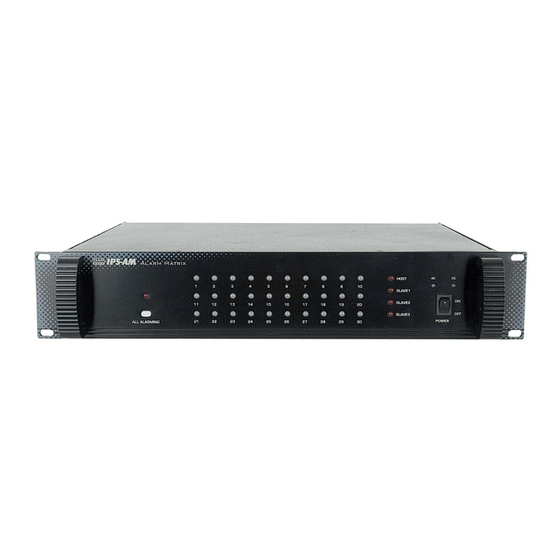

Page 6: Description
This is the main Power switch. Press to turn the amplifier on. Link Status Display. When operating the unit stand alone, the HOST LED lights up. If the unit is linked with other IPS-AM’s the LED’s will indicate following: HOST, controls CH1-CH30. -
Page 7: Overview Back Panel
Link Down Socket. This socket can be used if 30 alarm channels are not sufficient. Using the LINK UP and LINK DOWN sockets you can LINK several IPS-AM units to expand your channels. See also Chapter “Linking More Units” on page 10. - Page 8 19. Alarm Output Socket. The 25-pin sockets are used to output the alarm signals. Pin 1-10 are live terminals, indicated by LED 1-10. Pin 14-23 are com. Pin 11-13 and pin 24-25 are not connected. The alarm output sockets will be activated if an alarm is active. 20.
-
Page 9: Operation
Operation Installation Remove all packing materials from the IPS-WPT. Check that all foam and plastic padding is removed. Secure the equipment into a 19" rack. Connect all cables. Connecting the device Below an example of a possible setup. NOTE: Always turn off and disconnect the amplifier from mains voltage before making any connections. -
Page 10: Linking More Units
Linking More Units. Your Alarm Matrix provides 30 preset alarm channels Linking up more devices allows you to control more than 30 alarm channels, if several units are linked, only the “OR GATE OUT” of the HOST is valid. Using The Active Up/ Active Down Dipswitches Using the active up/ active down DIP switches allows you to link up to +/-4 neighbor zones to an alarm channel. -
Page 11: Serial Linking
Example 1: We want to Link 2 alarms up to each incoming alarm. The DIP switches should be set according the following diagram. In case of alarm on channel 14 an alarm will also be sent to channels 15 and 16. The according LED’s on the front panel will also light up red. -
Page 12: Audio Connecting
OR GATE OUT REMOTE IN Alarm Matrix Emergency Alarm Maintenance The DAP Audio IPS-AM requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. -
Page 13: Product Specifications
Product Specifications Model Alarm Matrix Power supply AC 110-120/220-240V 50/60Hz Alarm Input Channel 30ch Power consumption Less then 18W Alarm Output Channel 30ch Input Logic Level +5 - 24V High Level Signal or 0V selectable Alarm Output Level 0V (Short) Link Up, Down +/- 4 Channel Extension Weight...
