Summary of Contents for Blade Stealth Conspiracy 220

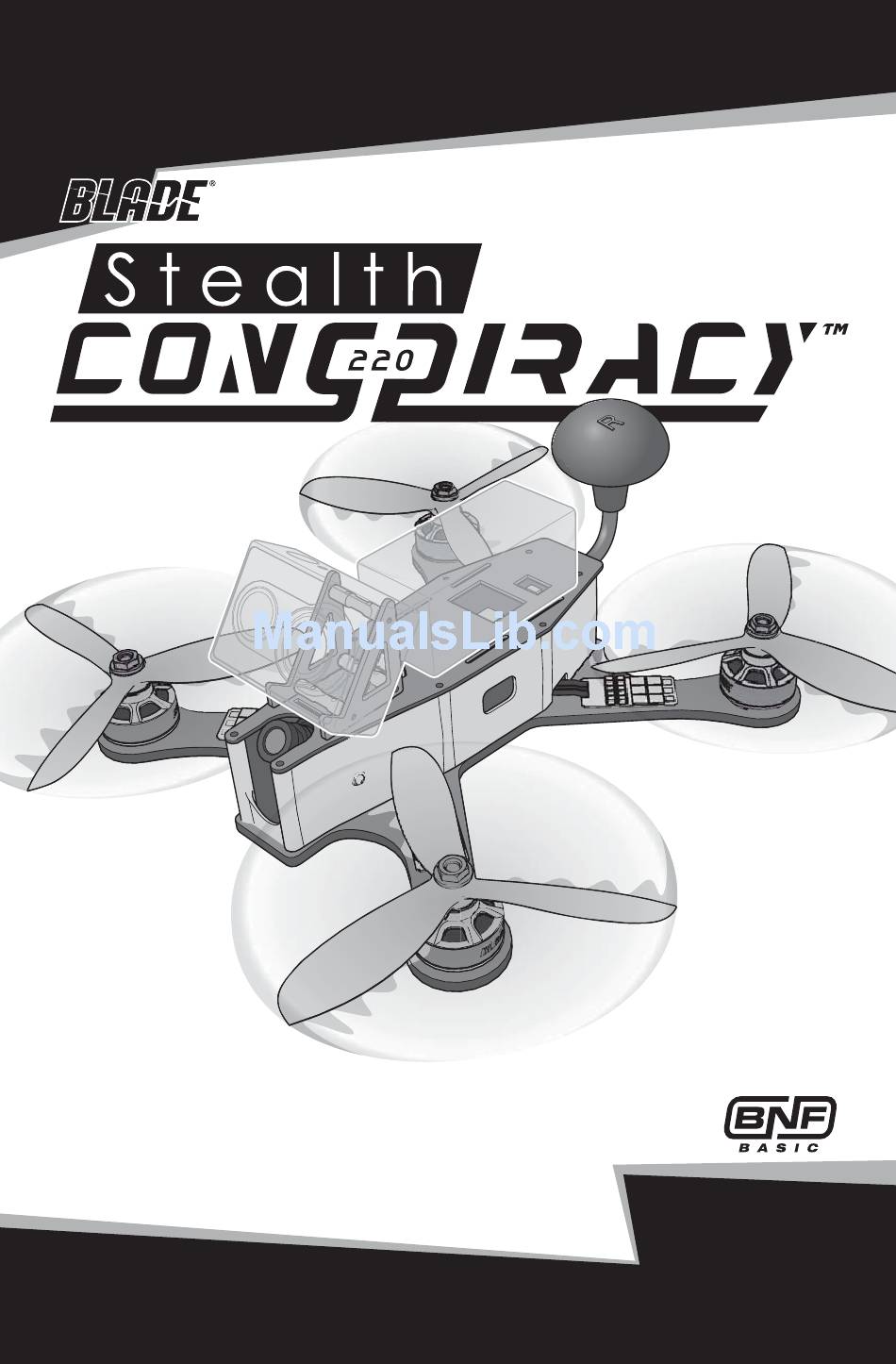

- Page 1 Instruction Manual Bedienungsanleitung ® Manuel d’utilisation Manuale di Istruzioni...
-
Page 2: Safety Precautions And Warnings
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com and click on the support tab for this product. Meaning of Special Language The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no possibility of injury. -
Page 3: Table Of Contents
Table of Contents Safety Precautions and Warnings .......2 Preparing for Flight ..........8 Table of Contents ..........3 Flight Mode and Rate Selection ......8 First Flight Preparation ........4 Flying the Stealth Conspiracy Quadcopter ....8 Flying Checklist ..........4 Post-Flight Inspection and Maintenance ....8 Installing the Propellers ........4 Troubleshooting Guide ........9 Assembly ............4... -
Page 4: First Flight Preparation
1. Refer to the illustration for the proper motor rotation and propeller location. 2. The propellers have “CW” or “CCW” marked on one blade to show proper location and rotation. Match the propeller location to the illustration. 3. Secure the propellers using the provided lock nuts. -
Page 5: Transmitter Setup
Transmitter Setup DX6, DX6e, DX7 (Gen 2), DX8 (Gen 2), DX9, DX18, DX20 SETUP LIST FUNCTION LIST Model Type Servo Setup Timer Mode Count Down Airplane Chan Travel Reverse Time 3:00 150/150 Normal F-Mode Setup Start Throttle Out 148/148 Reverse Switch 1 Inhibit Over... -
Page 6: Transmitter And Receiver Binding
Transmitter and Receiver Binding To bind or re-bind your quadcopter to your chosen transmitter, follow the directions below. Binding Procedure 1. Select the correct model in your transmitter. 2. Power off your transmitter. 3. Lower the throttle fully. 4. Power the quadcopter on while pressing the bind button located on the left side of the fl ight con- trol board, as shown in the illustration. -
Page 7: Using The Video Transmitter
Using the Video Transmitter Consult local laws and ordinances before operating FPV equipment. In some LEDs areas, FPV operation may be limited or prohibited. You are responsible for operating this product in a legal and responsible manner. See the Available Frequency table to fi nd the desired video channel and band. The video transmitter channel and band are changed using the button on the top of the video transmitter board, as shown. -
Page 8: Preparing For Flight
Preparing the Stealth Conspiracy Quadcopter for Flight 1. Before each fl ight, ALWAYS power on the transmitter before connecting the fl ight battery to the quadcopter. After each fl ight, disconnect the fl ight battery from the quadcopter before powering off the transmitter. NOTICE: Connecting the fl... -
Page 9: Troubleshooting Guide
Troubleshooting Guide WARNING: Remove the propellers from the motors prior to performing any troubleshooting or maintenance. Failure to do so may cause serious injury if the motors start unexpetedly. Problem Possible Cause Solution Disconnect the fl ight battery, center the control trim and Quadcopter not initialized on a level surface Quadcopter control response is re-initialize the quadcopter... -
Page 10: Parts Explosion
Parts Explosion Parts Listings Part # Description Part # Description 1 BLH02001 Main Frame: Conspiracy 220 BNF 9 BLHA1023 2206-2450Kv FPV Racing Motor 2 BLH02002BK Frame Skirt, Black: Conspiracy 10 SPMFC3207 Flight Control & PDB: Theory XL 3 BLH02003 LED Board: Conspiracy 220 11 SPMVC602 FPV CMOS Camera: Theory XL 4 BLH02004... -
Page 11: Limited Warranty
Limited Warranty What this Warranty Covers the event that you may need any assistance. For questions or assistance, please visit our website at www.horizonhobby.com, submit a Product Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the Support Inquiry, or call the toll free telephone number referenced in product purchased (the “Product”) will be free from defects in materials the Warranty and Service Contact Information section to speak with a and workmanship at the date of purchase. -
Page 12: Warranty And Service Contact Information
Warranty and Service Contact Information Country of Purchase Horizon Hobby Contact Information Address Horizon Service Center servicecenter.horizonhobby.com/ (Repairs and Repair Requests) RequestForm/ productsupport@horizonhobby.com Horizon Product Support 4105 Fieldstone Rd United States of America (Product Technical Assistance) 877-504-0233 Champaign, Illinois, 61822 USA websales@horizonhobby.com Sales 800-338-4639... - Page 13 ©2017 Horizon Hobby, LLC. Blade, Conspiracy, Thrust, DSM, DSM2, DSMX, Bind-N-Fly, BNF, the BNF logo, ModelMatch, Focal and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
