Summary of Contents for Blade InducTrix 200

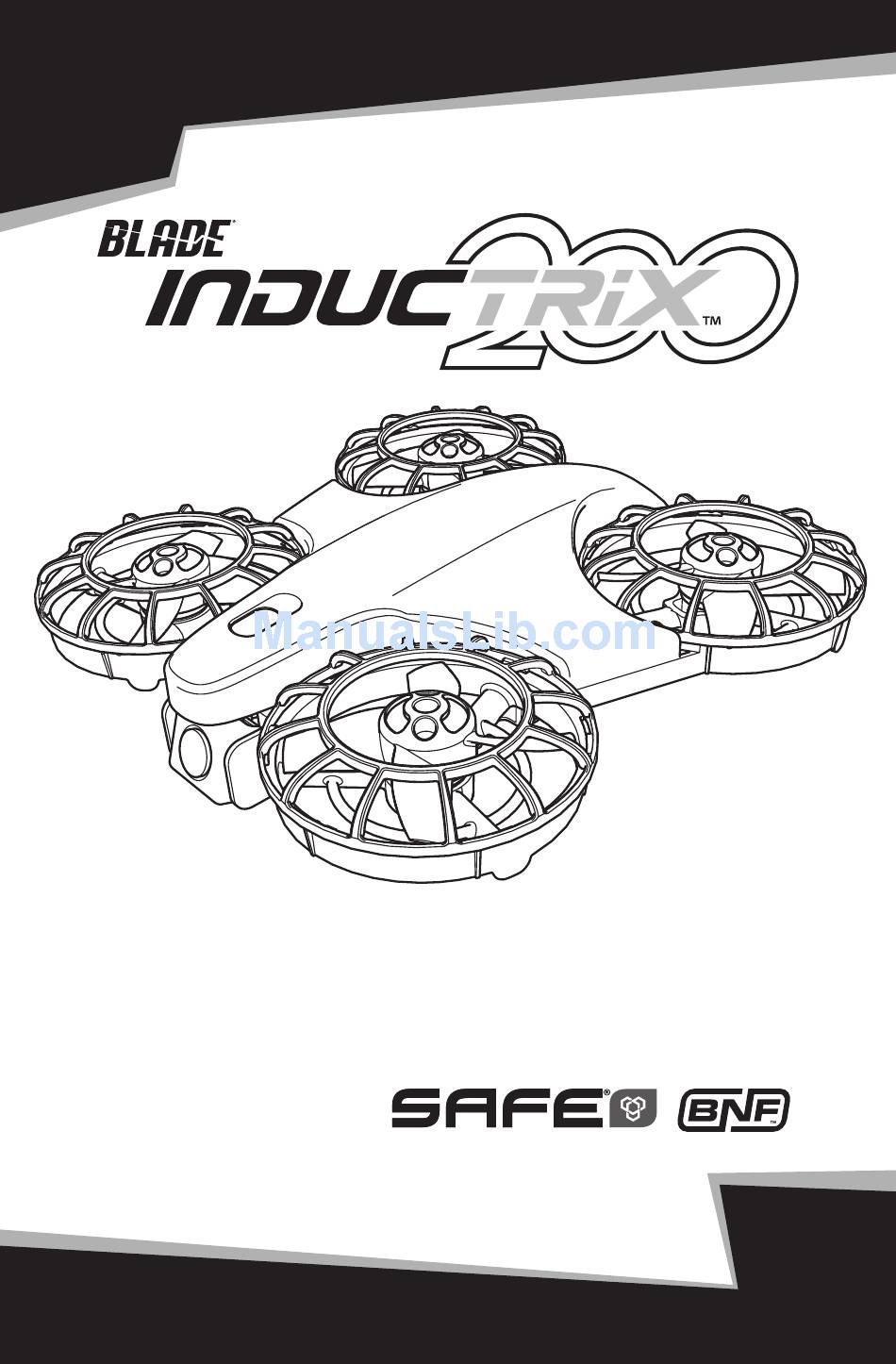

- Page 1 Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni...
- Page 2 NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit horizonhobby.com and click on the support tab for this product. Meaning of Special Language The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no possibility of injury.
-
Page 3: Table Of Contents
2.1 in (55mm) Length Propeller Diameter 1.8 in (45mm) 6.5 oz (185 g) Height Flying Weight Box Contents • Blade ® Inductrix ™ 200 Quadcopter • 25mW Micro Camera System • 800mAh 3S 11.1V 30C LiPo • 3S, 1.2 A LiPo Charger •... -
Page 4: First Flight Preparation
First Flight Preparation Flying Checklist ❏ Always turn the transmitter on fi rst • Remove and inspect contents ❏ Plug the fl ight battery into the lead from the 3-in-1 ESC • Begin charging the fl ight battery ❏ Allow the receiver and ESC to initialize and arm •... -
Page 5: Transmitter Setup
™ model setup available at www.spektrumrc.com. To use the DXe transmitter with the Blade Inductrix, channel 6 must be reversed. To reverse channel 6: 1. While powering on the DXe, hold the left and right sticks in the top-inside corners as shown. - Page 6 Pos 2 = Agility Mode (quadcopter LED Red) * Use of "Expo" is not necessary for successful fl ight of the Inductrix 200. The pilot may adjust this setting to tailor the sensitivity of the quadcopter around neutral if desired.
- Page 7 Pos 2 = Agility Mode (quadcopter LED Red) * Use of "Expo" is not necessary for successful fl ight of the Inductrix 200. The pilot may adjust this setting to tailor the sensitivity of the quadcopter around neutral if desired.
-
Page 8: Installing The Flight Battery
Installing the Flight Battery 1. Slide the battery into the back of the quadcopter, as shown, until it locks. 2. To remove the battery, press the locking tabs on both sides of the battery and pull the battery straight out the back of the quadcopter. -
Page 9: Safe
Technology ® ® Revolutionary SAFE (Sensor Assisted Flight Envelope) SAFE technology delivers: technology uses an innovative combination of multi-axis • Flight envelope protection you can enable at the fl ip of sensors and software that allows model aircraft to know a switch. -
Page 10: Flight Mode Selection
Flight Mode Selection • In stability low angle mode (quadcopter LED blue), the controls provide a minimum bank angle. • In stability high angle mode (quadcopter LED green), the controls provide a maximum bank angle. • In agility mode (quadcopter LED red), the system does not self level. -
Page 11: Using The Micro Camera
Using the Micro FPV Camera Consult local laws and ordinances before operating FPV equipment. In some areas, FPV operation may be limited or prohibited. You are responsible for operating this product in a legal and responsible manner. 1. Power on your radio transmitter, then power on the aircraft. 2. -
Page 12: Replacing The Propellers
Before beginning the calibration procedure, fully charge the fl ight battery and ensure the quadcopter and transmitter are bound properly, per the binding instructions. To Calibrate the Blade Inductrix 200: 1. Power on the transmitter and quadcopter normally. 3. Release the sticks and bind button. -
Page 13: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Throttle too high and/or throttle trim Reset controls with the throttle stick is too high and throttle trim at the lowest setting Throttle channel is reversed Power the quadcopter off, reverse the Quadcopter will not respond to AUX 1 reversed or not set properly throttle channel on the transmitter, power throttle... -
Page 14: Exploded View
Exploded View Parts Listings Part # Description Part # Description 1 BLH9001 Propeller Set 11 BLH9012 3-in-1 Control Unit 2 BLH9002 Main Frame Bottom 12 BLH9013 Power Switch 3 BLH9003 Landing Gear 13 BLH9014 Brushless Main Motor 4 BLH9004 Main Frame Top 14 BLH9015 800mAh 3S 11.1V ... -
Page 15: Limited Warranty
Limited Warranty What this Warranty Covers may need any assistance. For questions or assistance, please visit our website at www.horizonhobby.com, submit a Product Horizon Hobby, LLC, (Horizon) warrants to the original purchas- Support Inquiry, or call the toll free telephone number refer- er that the product purchased (the “Product”) will be free from enced in the Warranty and Service Contact Information section defects in materials and workmanship at the date of purchase. -
Page 16: Warranty And Service Contact Information
Warranty and Service Contact Information Country of Horizon Hobby Contact Information Address Purchase Horizon Service Center servicecenter.horizonhobby. (Repairs and Repair Requests) com/RequestForm/ productsupport@horizonhobby.com Horizon Product Support United States of 4105 Fieldstone Rd (Product Technical Assistance) America Champaign, Illinois, 61822 USA 877-504-0233 websales@horizonhobby.com Sales... - Page 17 ©2016 Horizon Hobby, LLC. Blade, E-fl ite, Inductrix, SAFE, the SAFE logo, DSM, DSM2, DSMX, the BNF logo, AirWare, ModelMatch and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
