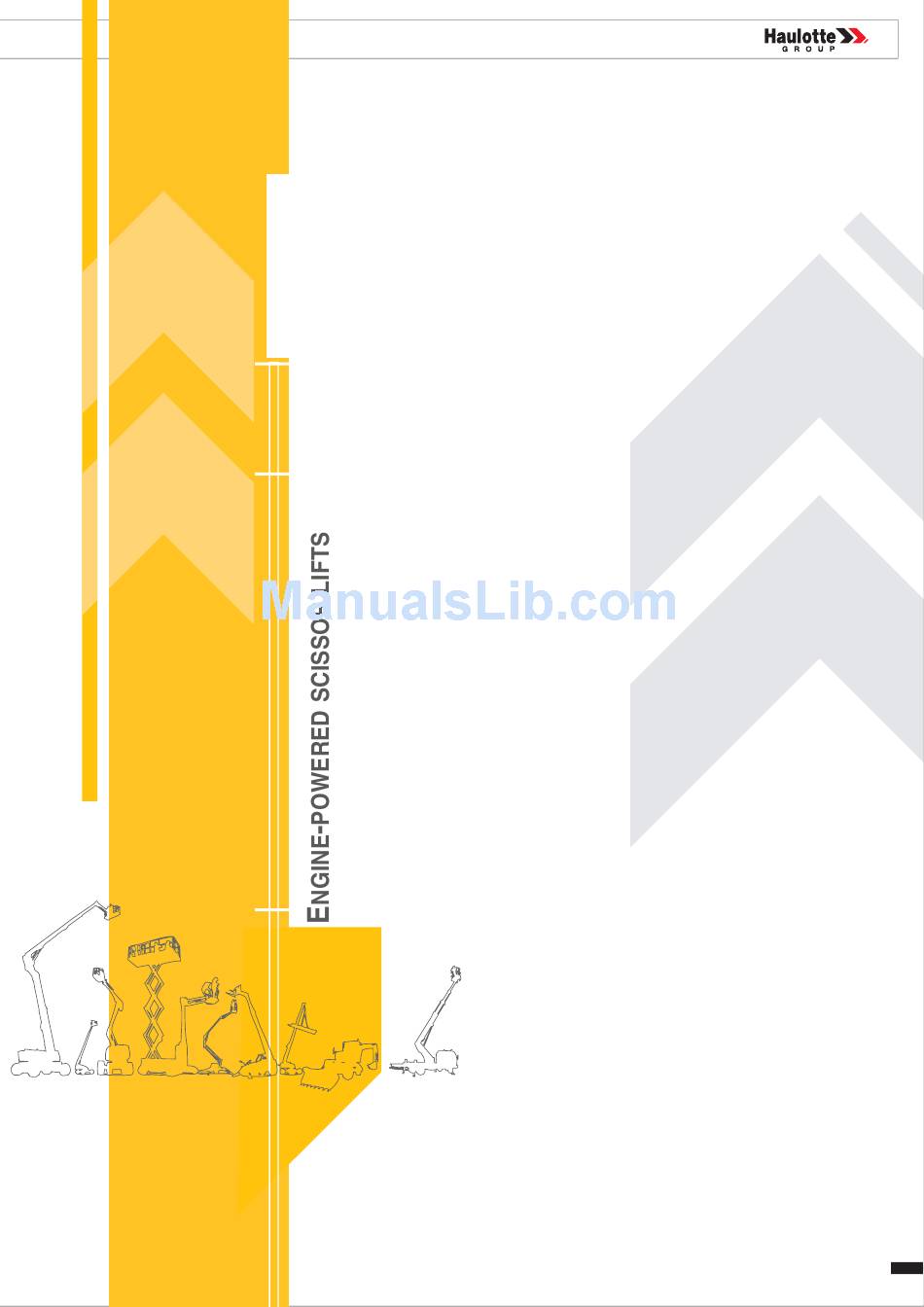

Operator's manual
Operator's manual

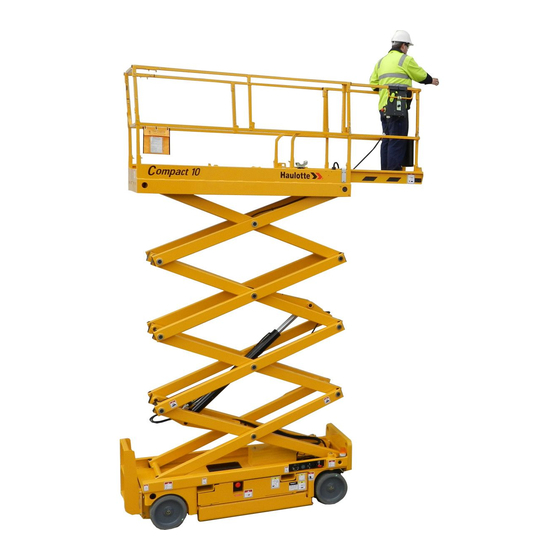

ENGINE-POWERED SCISSOR LIFTS
Compact 10DX (Compact 2668RT)
Compact 12DX (Compact 3368RT)
H12SX (HS3388RT) - H12SXL (HS3388RTXL)
H15SX (HS4388RT) - H15SXL (HS4388RTXL)
H18SX (HS5388RT) - H18SXL (HS5388RTXL)
4000014860
e10 12
EN
4000014860
e10 12
EN
