DLC3010 Digital Level Controller
Installation
May 2018

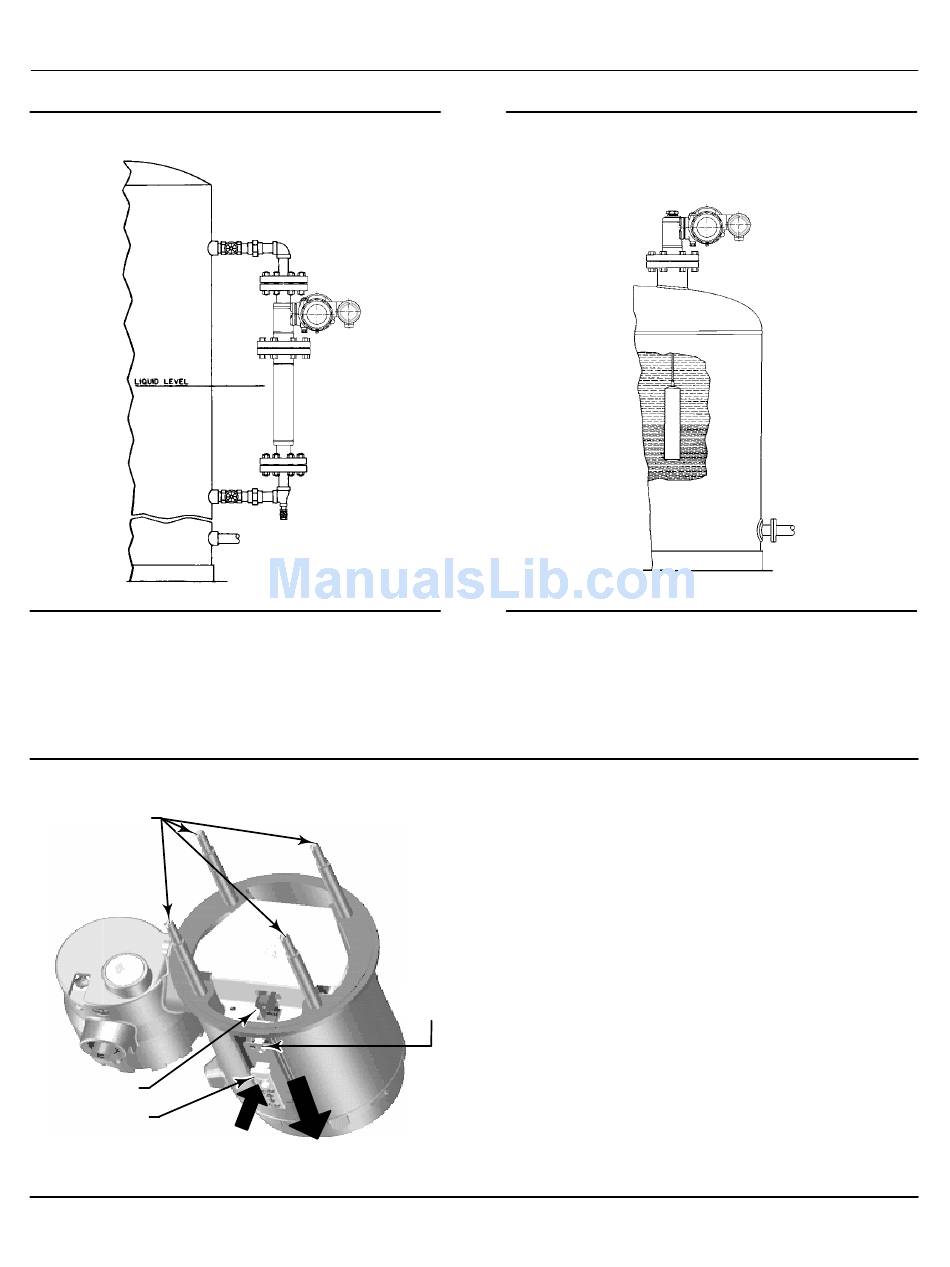

Figure 2‐2. Typical Caged Sensor Mounting

Digital Level Controller Orientation

Mount the digital level controller with the torque tube shaft clamp access hole (see figure 2‐4) pointing downward to
allow accumulated moisture drainage.
Figure 2‐4. Sensor Connection Compartment (Adapter Ring Removed for Clarity)
MOUNTING
STUDS
SHAFT CLAMP
SET SCREW
PRESS HERE TO
MOVE ACCESS
HANDLE
18
ACCESS
HOLE
SLIDE ACCESS HANDLE
TOWARD FRONT OF UNIT
TO EXPOSE ACCESS HOLE
Figure 2‐3. Typical Cageless Sensor Mounting
Instruction Manual
D102748X012
