Aligning the High Cap Sensor

5
6
Industrial Dynamics Company, Ltd. Document 40272-0700
1
2
3
4
No. Description
1 Sensor Emitter
2 Height Adjustment Lock
3 Container Cap
4 Sensor beam
5 Sensor Receiver
6 Container Travel
7 Distance between Container Cap and Sensor Beam
8 Secondary Sensor Height Adjustment

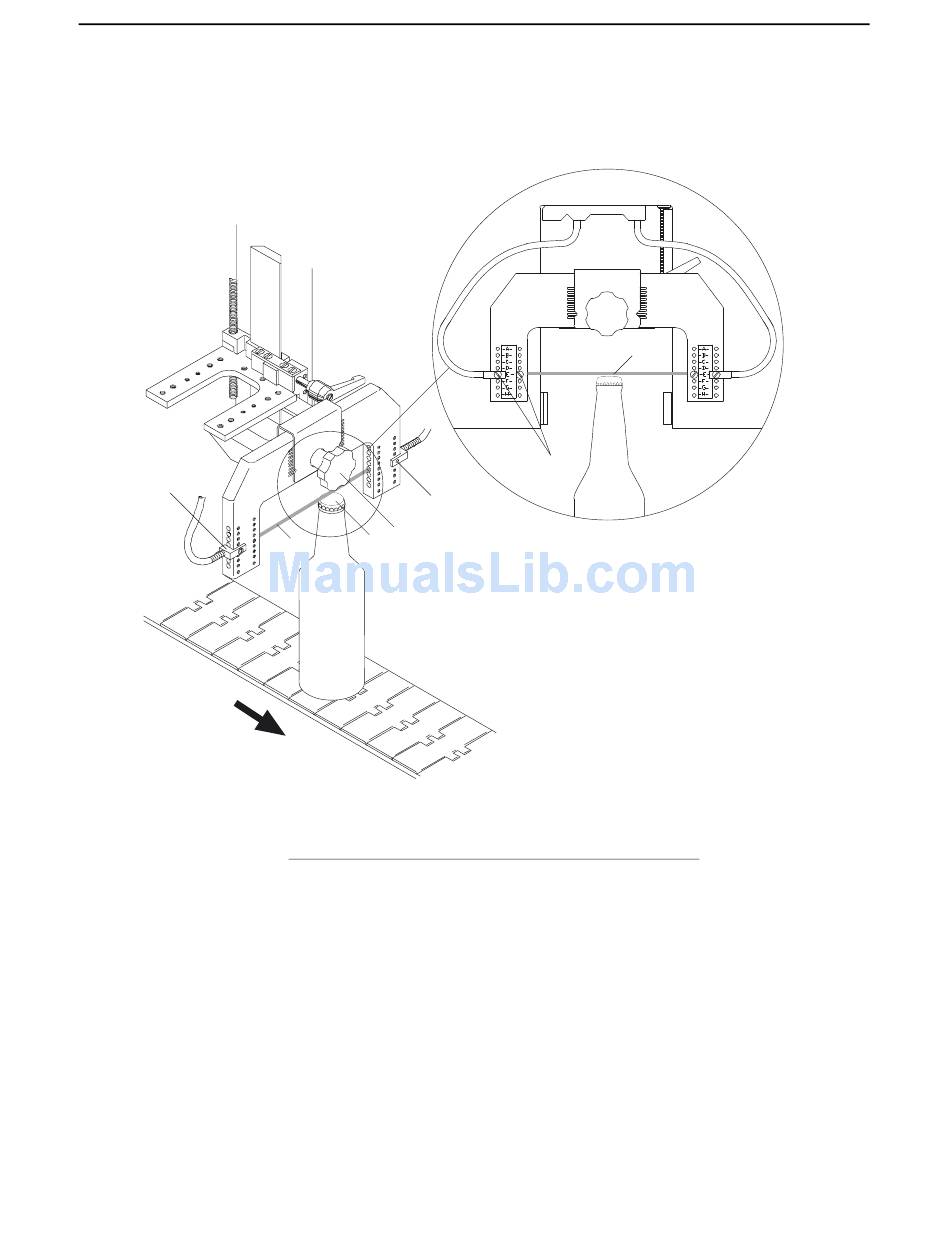

Figure 2-5. Aligning the high cap sensor
