Filtec Model FT-50 Radiation Exposure Profiles

1
2
6
1
6
No. Description
1 Inspection Head
2 Inspection Tunnel
3 Sealed Americium-241
4 Limits of Main Beam
Radiological Safety Information
Document 40272-0700
Gamma Gauge: 100 or 300 mCi Source
7&8
7
8
No. Description
5 5 cm Isodistance Contour
6 Radiation Detector
7 Shielding Bar (1/4" Thick Steel)
8 Detector Window

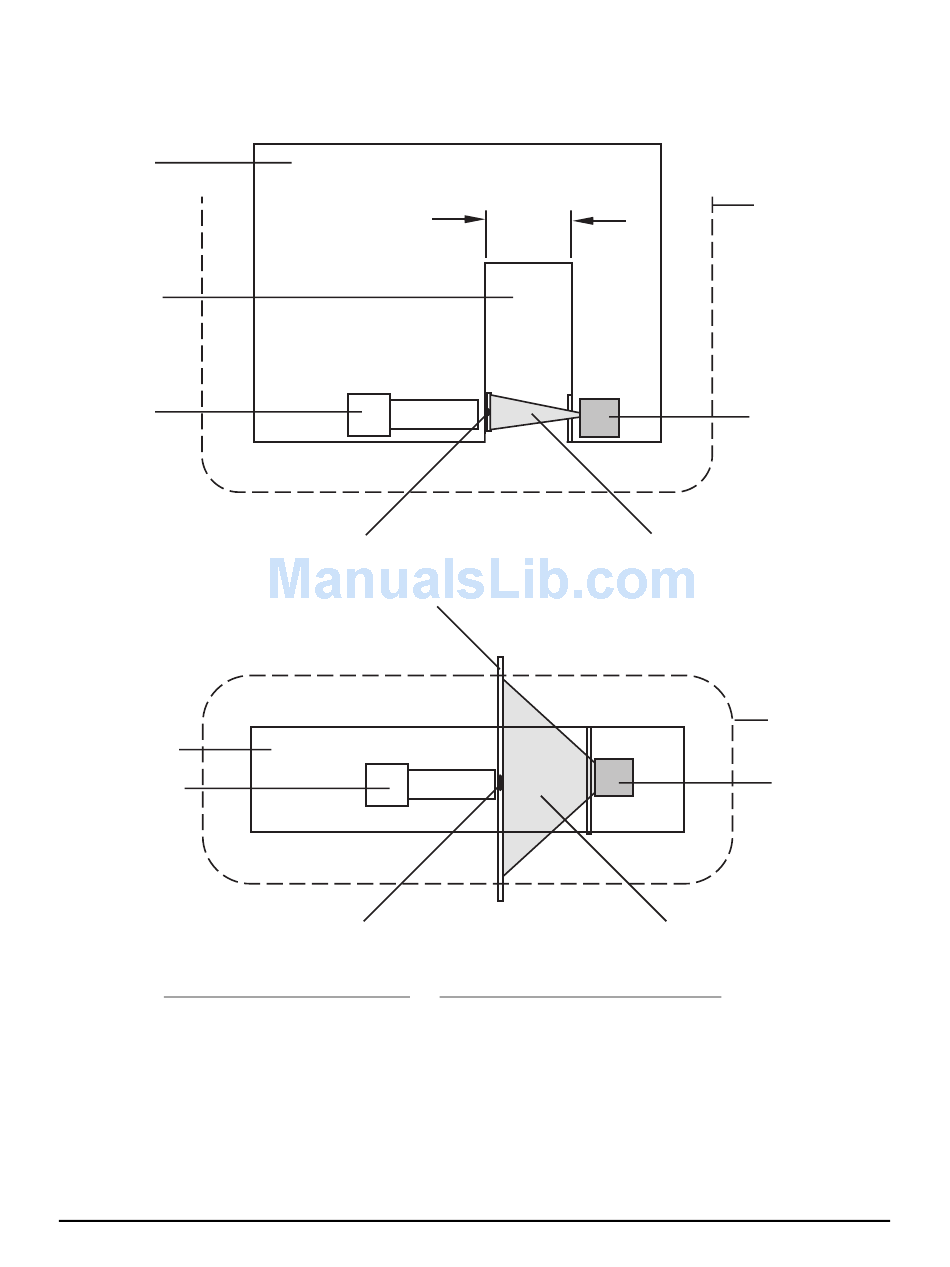

Figure 2. FT-50 Radiation Profile Schematic.
