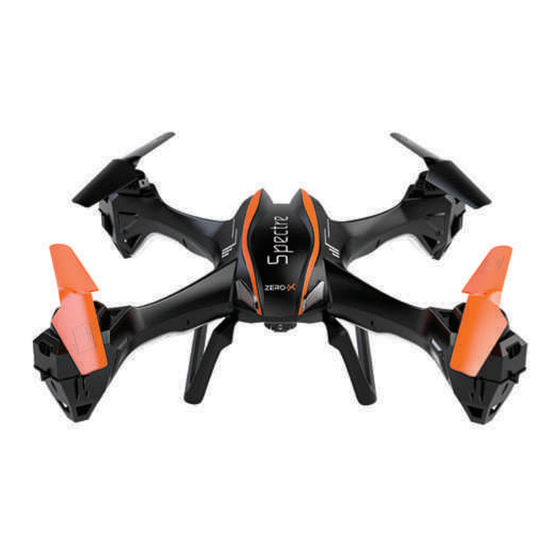

- Page 1 • •• SPE CT RE DRONE ••• USER MANUAL PRODUCT CODE: ZXSPT www.zero-x.com.au www.zero-x.co.nz...
-
Page 3: General Safety
While the battery is charging, the LED on the charger will glow red. Once charging is complete the light will glow green. While the battery is charging please take the time to read the instructions and familiarise yourself with the controls of your Zero-X Spectre drone. -
Page 4: Battery Safety
• Always unwind all cables before charging. • Do not over charge the battery. Once the charging process is completed, remove the battery from the charger as soon as possible. • Only use the included, or replacement Zero-X Spectre compatible chargers and batteries. • Y ou must charge the LiPo battery in a safe area away from lammable materials. -
Page 5: Package Contents
Package Contents Spectre Drone Remote Control Spare Rotor Blades Drone Battery Drone Charger Rotor Guards Manual Screwdriver... - Page 6 Spectre Drone Diagram Top View 1. Front Rotor Blades 2. Rear Rotor Blades Under Side View 3. Battery 4. Camera 5. Micro SD Card Slot * 6. LED Lights 7. Feet 8. Power Switch * Micro SD Card not included...
-
Page 7: Remote Control Diagram
Remote Control Diagram Power Switch Left Thumbstick (Acceleration / Yaw) Right Thumbstick Yaw Trim Controller (Pitch / Roll) Roll Trim Controller Pitch Trim Controller Video Button Photo Button Speed Button 10. Flip Button 11. Stunt Mode 12. LED Lights Control 13. - Page 8 Remote Control LCD Screen Diagram Connection Strength Yaw Trim Balance Roll Trim Balance Pitch Trim Balance Acceleration Light Indicator Speed Mode Battery...
-
Page 9: Installing The Battery
Set Up Charging the Battery Unwind & plug the included USB charger into a powered USB port. You can connect the USB charging cable to either a computer USB port, USB C-Tick certiied DC 5V/2.1A output wall charger or USB power bank. Use only use the USB charging cable included with the Spectre drone. When connected to a charging source the LED light in the charger will glow green. Connect the drone battery to the charger and the light will glow red indicating charging is in process. -
Page 10: Rotor Guards
Set Up Installing a Micro SD Card • With the Spectre drone upside down and facing away from you, insert the Micro SD Card (Micro SD Card not included) into the side of the camera ensuring that the text side of the Micro SD Card is facing up. •... -
Page 11: Flight Safety
Set Up Remote Control • Ensure that the Remote Control power switch (1) is in the OFF (down) position. • With the included screwdriver unscrew the battery cover on the rear of the Remote Control. • Remove the battery cover. • Insert 4 x AA batteries (AA Batteries not included) making sure that they are in the orientation speciied. - Page 12 Launching your Spectre drone 1. After installing a fully charged battery and installing 4 x AA batteries (AA batteries not included) into the remote control and conducting a complete check of your surroundings, turn the Power Switch (8) on the Spectre drone to the ON position.
- Page 13 Launching your Spectre drone 5. Calibrate the Spectre drone by holding the Right Thumbstick (Pitch/Roll) (3) in the bottom right position. This ensures that the Spectre drone stays level and lies straight. The Lights on the Spectre drone will lash fast while calibrating. Keep holding the Thumbstick in the bottom right position until calibration is complete.
- Page 14 Controlling your Spectre Drone Basic Controls Lift / Descent Push up the Throttle Rudder Stick and the drone will ly up. Push down the Throttle Rudder Stick and the drone will ly down. Yaw Left / Right Push the Left Rudder Stick to the left or to the right, the drone will rotate in the corresponding direction.
-
Page 15: High Speed Mode
Controlling your Spectre Drone Speed Modes The Spectre drone has 2 speed modes that control the acceleration and manoeuvrability of the drone. To cycle through the Speed Modes, use the Speed Button (9) to the right of the LCD screen on the Remote Controller. LOW SPEED MODE: When the Spectre drone is powered up it will start in LOW SPEED MODE. - Page 16 Controlling your Spectre Drone Trimming Trimming is used to balance the Spectre drone when the light is of centred. Please check before attempting to use trimming that the Spectre drone’s light is not being afected by outside forces such as wind. Trimming Pitch To trim the Spectre drones’ pitch, use the Pitch Trim Controller which is the small switch on the Remote Control to the left of the Right Thumbstick. This will balance the forward and back movement of the Spectre drone.
- Page 17 Controlling your Spectre Drone Flipping and Stunt Mode The Spectre drone is capable of performing 360° lips. This is possible by using either the Flip button or activating Stunt Mode. To Perform a forward lip push the Flip Button (10), marked “FUNC” to the right of the LCD screen on the Remote Control. This will launch the Spectre drone forward into a forward lip. The Stunt Mode can be used to lip the Spectre drone in any direction by pressing the Stunt Mode button (11) and holding the Right thumbstick (Pitch/Yaw) (3) in the desired lip direction. Please ensure that you have a 2 metre clearance below and in all directions around the drone before attempting to lip as this manoeuvre requires a lot of space.
- Page 18 Controlling your Spectre Drone Camera The camera on the Spectre drone is controlled via the Video (7) and Photo (8) buttons on the remote control to the left of the LCD screen. When you are intending to use the camera, please ensure that you have inserted a Micro SD Card (not included) into the Micro SD card slot in the Spectre drone.
- Page 19 Maintenance Cleaning: Avoid exposing your Spectre drone and it’s accessories to dust, sand and moisture as these can damage the Spectre drone. If the Spectre drone is exposed to dust or sand, use a soft brush to remove any visible particles. Rotor Blade replacement: 1.
-
Page 20: Parts And Accessories
Parts and Accessories To purchase parts and accessories for your Zero-X Spectre drone, please visit your nearest Zero-X retailer or visit us online at www.zero-x.com.au or www.zero-x.co.nz ZXRBSRBW Rotor Blades for Spectre and Rapture drones – Black and White ZXRBSRBO Rotor Blades for Spectre and Rapture drones –... -
Page 21: Warranty Terms And Conditions
The retailer will then return the goods to Zero-X. Zero-X will repair, replace or refurbish the product at its discretion. The retailer will contact you when the product is ready for collection. - Page 24 www.zero-x.co.nz...
