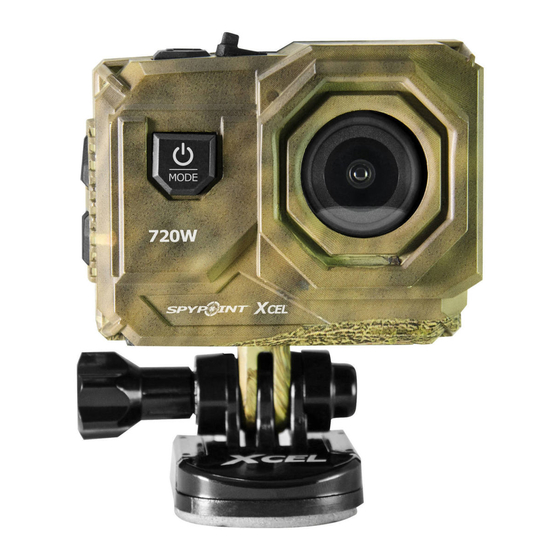

Spypoint XCEL 720W Quick Start Manual

In the box

QUICK START GUIDE
XCEL 720W
1pcs Quick start
guide
• TRAIL CAMERAS
1pcs Quick release
stand
• HUNTING TABLET
• ACTION CAMERAS
1pcs Leash
& ACCESSORIES
User manual, latest firmware
Note: Memory cards and additional mounts are sold separately.
& FAQ available at:
www.support.spypoint.com
support@spypoint.com

1-888-779-7646

v1.2
Components
1 Select/Shutter Button
2 Power/Mode Button
3 Up Button
Speaker
4
5 Down Button
1pcs Lithium-ion 1pcs Scope
Polymer battery mount 6 Battery case
1
2
1pcs Flat adhesive 1pcs USB
3
mount cable (22'')
4
5
6
1pcs Lens cleaning
cloth
Getting started
7 Status LED INSERTING THE MICROSD CARD
8 Lens
Insert a microSD memory card in the card slot, gold contacts facing the
9 Microphone front of the XCEL. The card is inserted correctly when a click is heard.
MicroSD reader
10
REMOVING THE MICROSD CARD
Micro-USB port
11
Lightly press the memory card into the camera once to pop it out of the
12 Screen
slot and remove it.
Note: The camera is compatible with microSD memory cards with capacity up
to 32 GB (not included). See Available accessories section.
CHARGING THE CAMERA
The camera can be charged with:
A USB power source (e.g. a computer)
To charge the battery:
Connect the camera to a USB power source.
(Charging time: 4 hours)
EXTERNAL POWER SOURCE FOR EXTENDED USE
While using the camera, an external power source can be used to provide
continuous power and allow a longer autonomy period. All of the power
7
sources shown can be used to power the camera continuously during use.
8
9
10
11
12
INSTALLING THE QUICK RELEASE STAND WITH SAFETY RING CAPTURING VIDEOS + PHOTOS
To Start/Stop video:
Press the Shutter/Select Button, the camera will emit one beep and the
Camera will start recording. Press the Shutter/Select Button again and
the camera will emit one beep to indicate recording has stopped.
To Start/Stop photos:
Press the Down Button to take a picture. The camera will emit a came-
ra shutter sound each time a photo is taken. If in TIME LAPSE, press the
Down Button to stop taking pictures.
PLAYBACK
To enter the Playback menu to view your videos and photos.
Cycle through the camera modes with the Power/Mode Button.
Note: The XCEL mount adaptor is designed to attach securely and
1. Repeatedely press the Up or Down Button
adequately to the anchorage system of the camera and resist
to cycle through video and photo.
to activities with impact.
2. Press the Shutter/Select Button
to view the selected video or photo.
TURNING ON THE CAMERA
To turn ON the camera, press the Power/Mode Button.
3. To view your other videos and photos, repeatedely
press the Up/Down Button to cycle through them.
To turn OFF the camera, press and hold the Power/Mode Button
a few seconds until the screen shuts down.
4. To exit, press the Power/Mode Button
CYCLE THROUGH THE MODES
You can cycle through the camera modes with the Power/Mode Button
Video/Photo Record Video or capture a single photo.
Playback View recorded video or photo.
Settings Adust camera settings, resolution and more
