Dynojet Power Commander V Installation Manual page 6

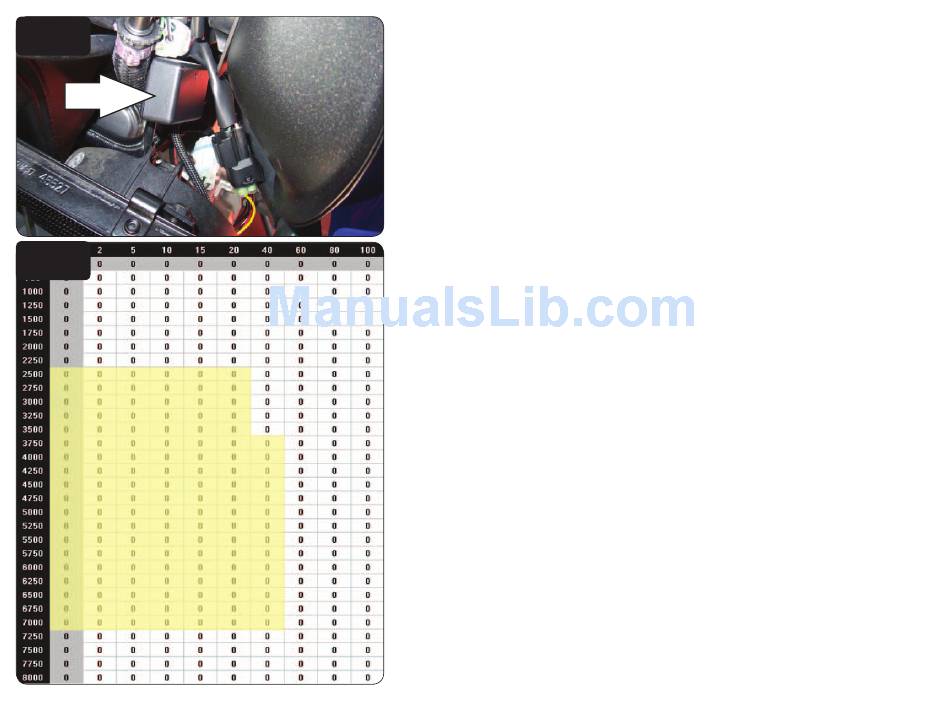

FIG.K
O2 Optimizer
FIG.L
22-020 www.powercommander.com
13 Plug the Dynojet O2 Optimizer in-line of the stock O2 sensor and wiring
harness (Fig.K).
14 Secure the O2 Optimizer in place using a zip tie.
The O2 optimizer for this model controls the stock closed loop area. This
area is represented by the highlighted cells shown in Figure L. The optimizer
is designed to achieve a target AFR of 13.6:1. To use this optimizer you must
retain your stock O2 sensor.
It is not recommended to alter the values in the highlighted area unless
instructed to do so by a Dynojet technician.
If using the Auto tune system do NOT input values in this area in your Target
AFR table.
09-10 Yamaha XT660R PCV - 6
