Dynojet Power Commander V Installation Manual page 5

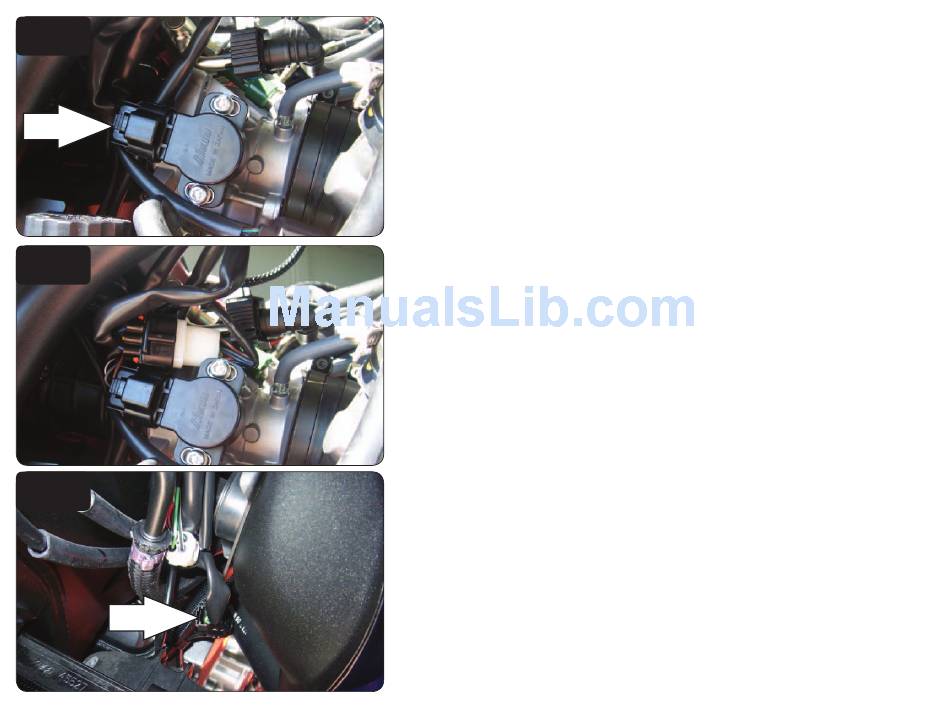

FIG.G
Unplug TPS
FIG.H
FIG.J
Unplug O2
22-020 www.powercommander.com
10 Locate the Throttle Position Sensor on the right side of the throttle body.
Unplug the stock wiring harness from the TPS (Fig. G).
11 Plug the PCV harness in-line of the stock TPS and stock wiring harness
(Fig. H).
12 Locate the O2 sensor connection. Unplug this connection (Fig. J)
Follow the wires from the exhaust up to this location.
09-10 Yamaha XT660R PCV - 5
