Drawings For 3-Section Group - Danfoss PVG 32 Technical Information

Technical Information
Dimensions and schematic examples

Drawings for 3-section group

30
PVG 32 AG Modules

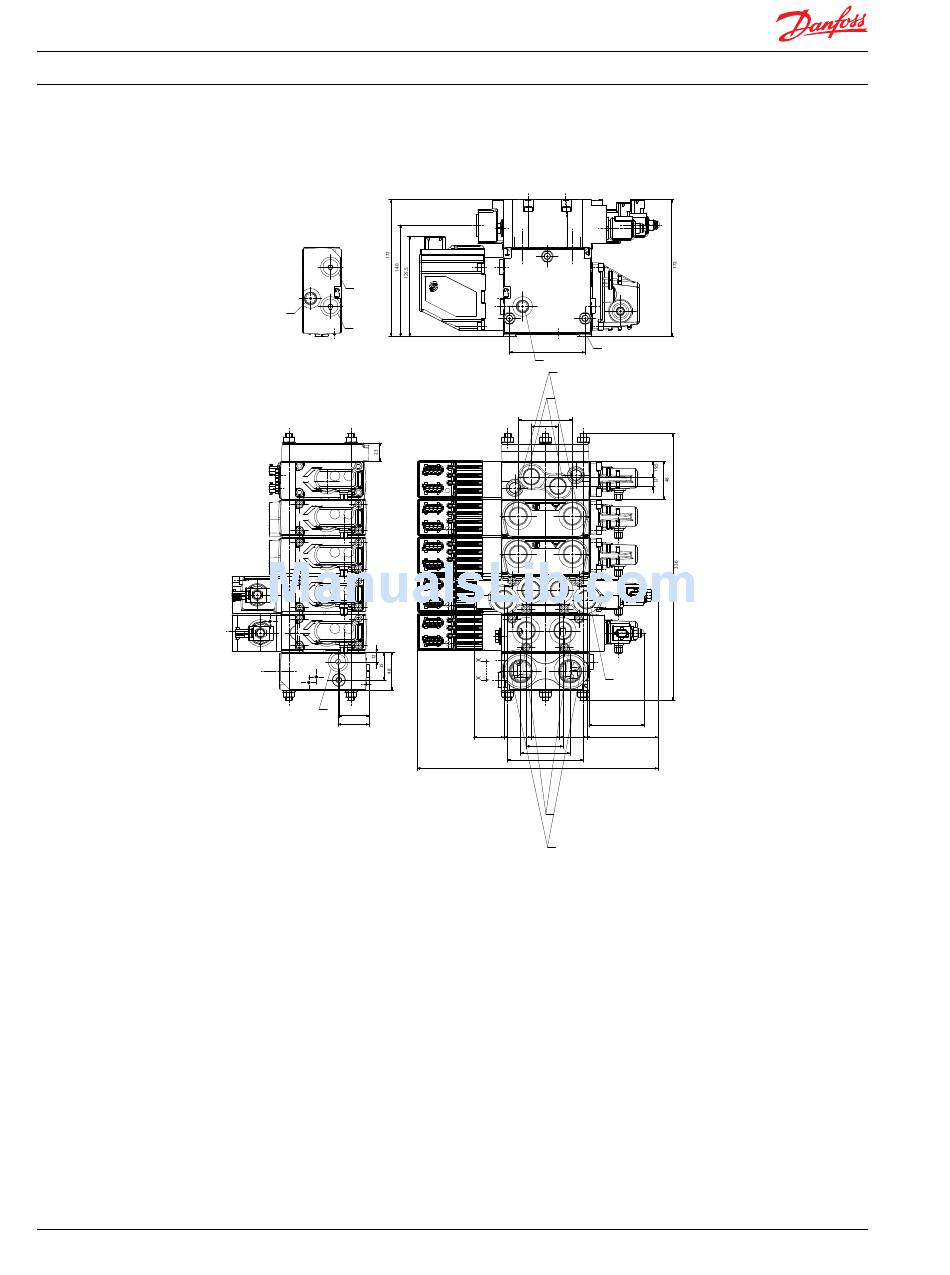

Drawing for 5-section valve group
View
X-X
F
H
G
N
37,5
38,5
F: Port T2; M14 x 1.5
G: Port T0; M14 x 1.5
H: Port LS; M14 x 1.5
I: Port T02; M14 x 1.5
J: PVB A and B port; M22 x 1.5
K: Fixing holes; M8 x min. 10
•
Example of PVG 32: 3 section valve group,with 1 htch single acting (PVBZ-HS) and 2 aux. valve slices.
•
To be supplied with LS variable piston pump.
•
PVED-CC with Deutsch DT connector.
11051935 • Rev AE • Feb 2014
K
95
I
L
J
68
33,5
P
69,3
38 34 36 34 89,6
46
62
95
302,6
P301 076
O
M
L: PVBZ A and B port; M22 x 1.5
M: Port P and T; M27 x 2.0
N: Port P2; M14 x 1.5
O: PVBZ-HD work port; M22 x 1.5
P: PVBD work port; 4 x M22 x 1.5
