Pvbz Auxiliary Modules - Danfoss PVG 32 Technical Information

Technical Information

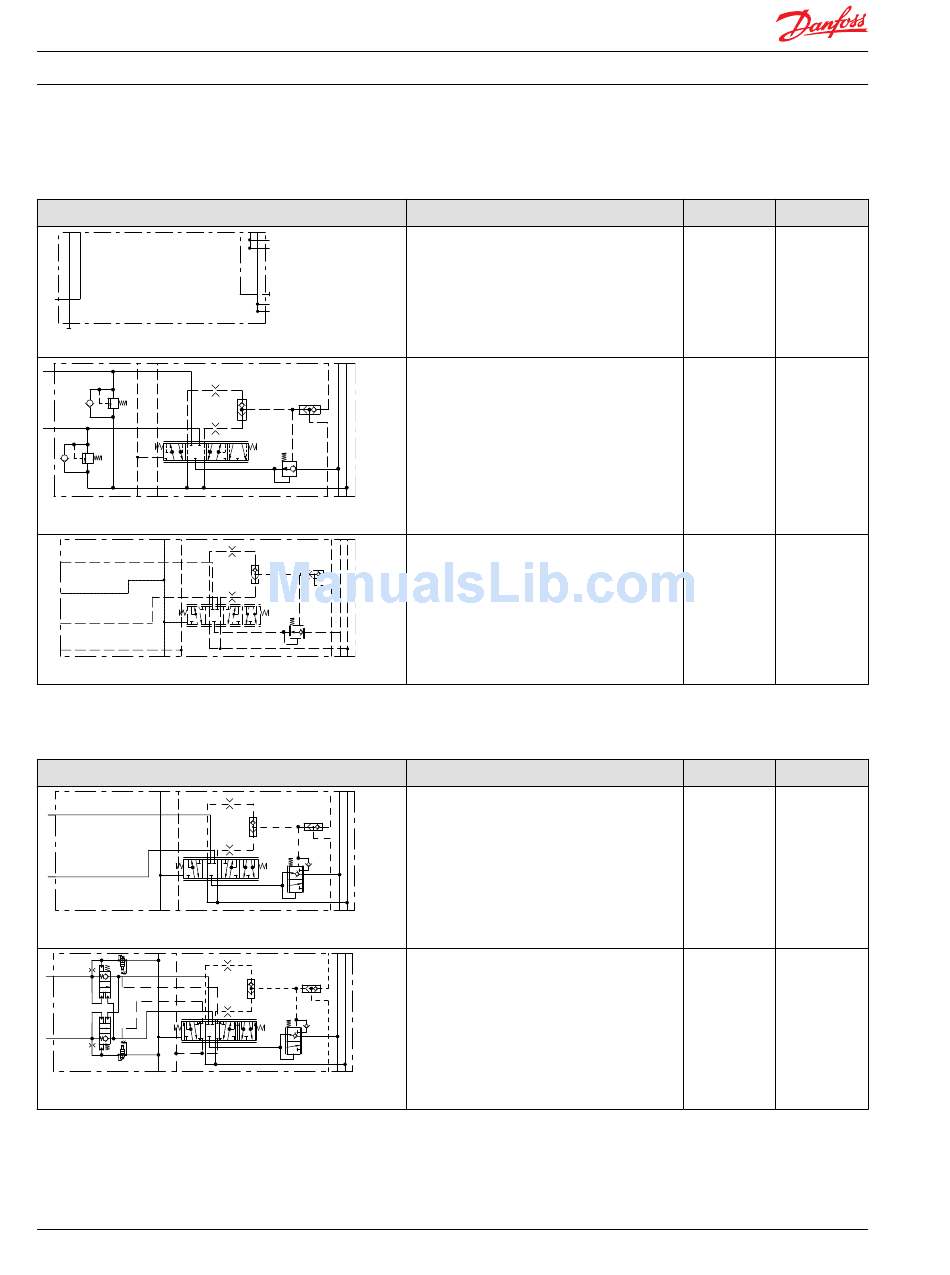

Modules and code numbers
PVB, inlet basic modules (continued)
Symbol
T0
T02
B
A
T0 Pp
B
T0
A
Pp

PVBZ auxiliary modules

PVBZ auxiliary modules
Symbol
B
A
B
A
16
PVG 32 AG Modules
P2
P
LS
T2
T
V310061.A
LSP T
P301 038
P301 039
P301 040
P301 041
11051935 • Rev AE • Feb 2014
Descriptions: PVP / PVPV / PVB
PVPV,
Closed centre pump side module for pumps with
variable displacement.
External T0 without pilot supply.
PVB,
With compensator, without thermal relief valve
T0 facility
LS a/b shuttle valve
Prepared for PVLP shock valves
PVB,
With compensator
T0 facility
LS a/b shuttle valve
Prepared for manifold PVBD
Description PVB / PVBZ
PVBZ as PVB
Compensator w. bleed off and check valve
T0 facility
LS a/b shuttle valve
Without thermal relief valve
PVBZ 2 PO check valves
Compensator w. bleed off and check valve
T0 facility
LS a/b shuttle valve. Shuttle pin.
Without thermal relief valve
Ports Code number
P: M27x2 11055758
P2: M14x1.5 (ISO 6149)
T: M27x2
T2: M14x1.5
LS: M14x1.5
T0: M16x1.5
T02: M14x1.5
M22 x 1.5 157B6850
(ISO 6149)
Manifold PVBD 157B6969
Port Code number
M22 x 1.5 157B6955
(ISO 6149)
M22 x 1.5 157B6957
(ISO 6149)
