Lincat Lynx 400 LSC Installation, Operating And Servicing Instruction

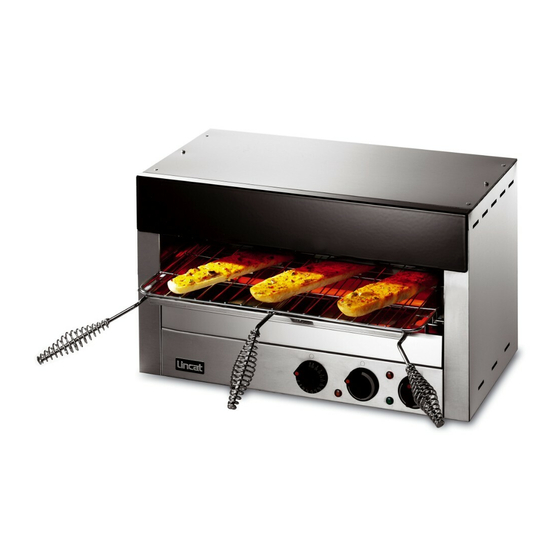

Electric infra-red grill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

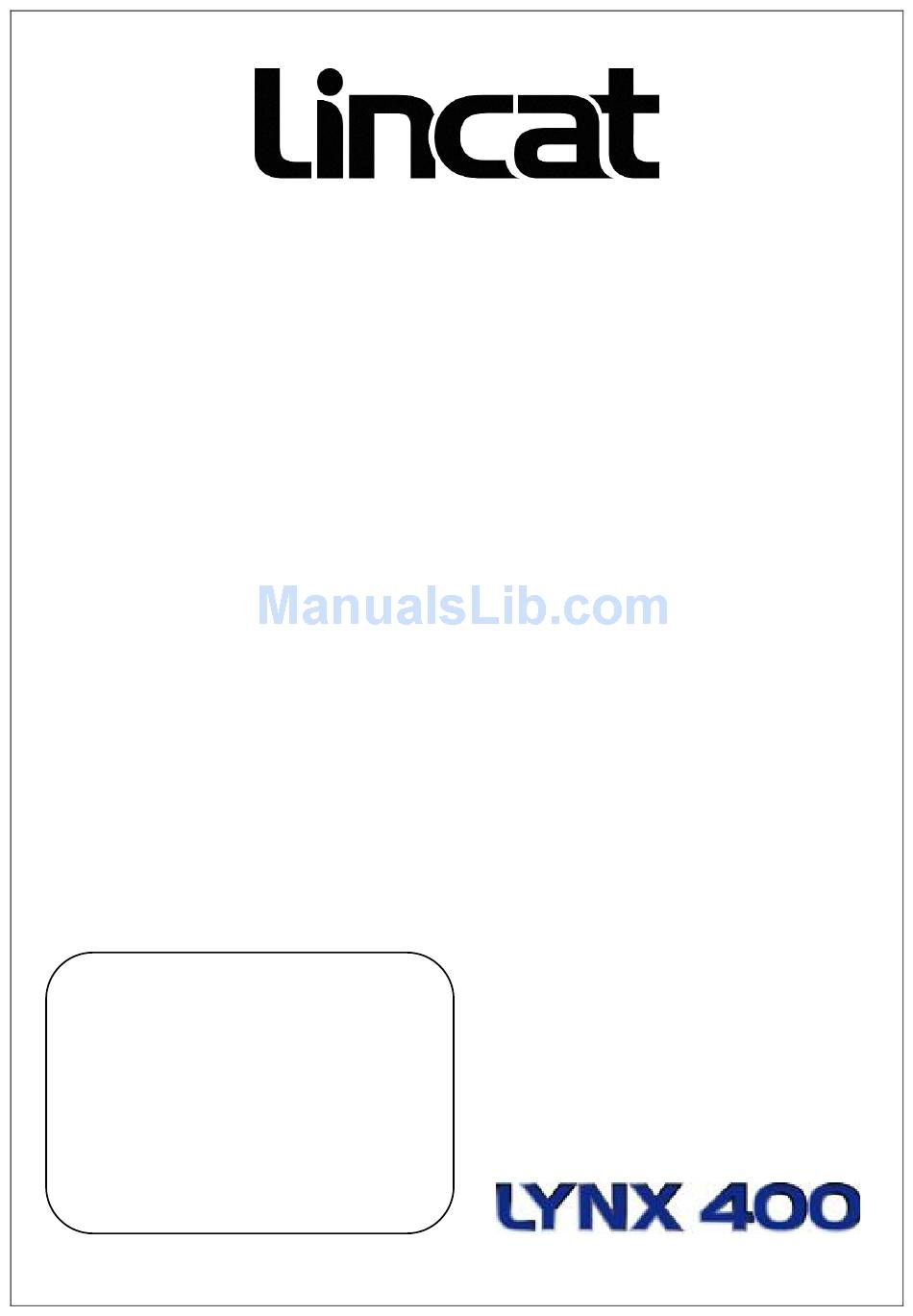

Installation, Operating and Servicing
Instructions
Lynx 400 Electric Infra-Red Grill
LSC, LPC
Please make a note of your product details for
future use:
Date Purchased:_________________________
Model Number:__________________________
Serial Number:__________________________
Dealer:_________________________________
_______________________________________
IS 311 ECN 3607
Page 1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lynx 400 LSC and is the answer not in the manual?

Questions and answers

Related Manuals for Lincat Lynx 400 LSC

Summary of Contents for Lincat Lynx 400 LSC

  • Page 1 Installation, Operating and Servicing Instructions Lynx 400 Electric Infra-Red Grill LSC, LPC Please make a note of your product details for future use: Date Purchased:_________________________ Model Number:__________________________ Serial Number:__________________________ Dealer:_________________________________ _______________________________________ IS 311 ECN 3607 Page 1 of 8...

  • Page 2: Table Of Contents

    WARNING! This symbol is used whenever there is a risk of personal injury. CAUTION! This symbol is used whenever there is a risk of damaging your Lincat product. NOTE: This symbol is used to provide additional information, hints and tips.

  • Page 3: Warnings And Precautions

    WARNINGS AND PRECAUTIONS This appliance must be installed, commissioned and serviced by a qualified person in accordance with national and local regulations in force in the country of installation. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person.
  • Page 4 Supply cords shall be oil resistant, sheathed flexible cable not lighter than ordinary polychloroprene or equivalent elastomer sheathed cord (code 60245 IEC 57) Push the feet into the base holes provided. Install this appliance on a level surface ensuring all vents are unobstructed. Any partitions, walls or furniture must be of non-combustible material.

  • Page 5: Operating Instructions

    OPERATING INSTRUCTIONS Only qualified or trained personnel should use this appliance. Do not place objects on top of this appliance. Fig 2 Timer Green power neon Lower element control Timer Green power neon Lower element control Upper element amber neon Lower element amber neon Upper element control LPC/LSC...

  • Page 6: Cleaning

    Consulting Fig 2, connect the appliance to an electrical supply – the green neon illuminates to indicate power to the appliance. The timer must first be set for either appliance to heat up. Set the timer (A or D) for a required time, the elements will switch off when the time expires.

  • Page 7: Fault Finding

    The elements are sprung loaded. Carefully push the element sideways (1) until the end is clear of the ceramic ferrule. Ease the element down through the cut out in the side bracket (2) and remove. Reverse the procedure to replace the element. Be aware that the elements are fragile and damage easily.

  • Page 8: Service Information And Guarantee

    All available on serial plate Type number  Serial number Lincat reserve the right to carry out any work under warranty, given reasonable access to the appliance, during normal working hours, Monday to Friday, 08:30 to 17:00. GUARANTEE This unit carries a comprehensive UK mainland 2 year warranty. The guarantee is in addition to, and does not diminish your statutory or legal rights.

This manual is also suitable for:

Lynx 400 lpc
