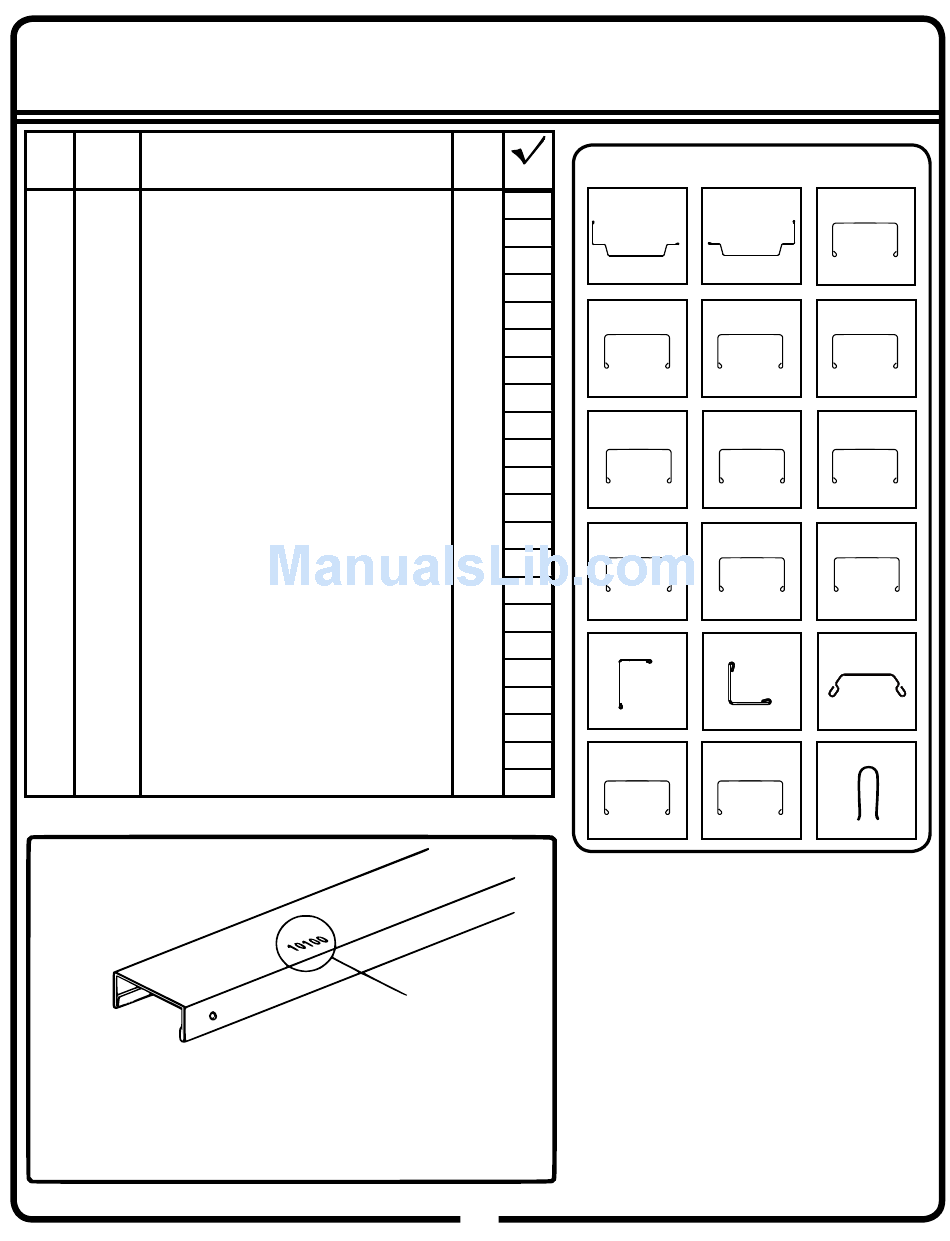

PARTS LIST...
Key Part Part
No. No. Description
1
10618 Front Wall Panel
2
10622 Right Door Jamb
3
80037 Left Door Jamb
4
10627 Front Wall Channel
5
10628 Front Wall Diagonal
6
10638 Long Fascia
7
10639 Short Fascia
8
10640 Wall Post
9
10652 Wall Post (Hinge)
10
10673 Front Frame
11
10623 Door Panel (Hinge)
12
10624 Right Door Panel
13
80051 Left Door Panel
14
10635 Horizontal Door Brace
15
10678 Vertical Door Brace (Latch)
16
10637 Vertical Door Brace (Hinge)
17
10647 Top Door Trim
18
10648 Door Astragal
19
10626 Door Diagonal Brace
20
10636 Vertical Door Brace
21
10675 Cane Bolt Bracket
22
69835 Edge Trim (Green)
Part Numbers
1. Each part has an identifying part number on it.
2. Part Numbers are referenced in each step.
3. Unpainted parts have a stamped in number and painted
parts have a number that is inked on.
Remove inked on numbers with soap and water after assembly.
Qty.
List
2
1
1
6
4
1
1
2
2
2
2
1
1
4
2
2
2
2
8
4
2
2
Part Number
6
4
Selected End Views by Key No.
3
2
Painted Painted
5 6
Unpainted Unpainted
8 9
Unpainted Unpainted
14 15
Painted Painted
17 18
Painted Painted
20 21
Unpainted Unpainted
Confirm that all hardware
and parts are present before
attempting to assemble your kit.
For missing or damaged parts,
contact Customer Service. Do not
return to store.
Customer Service:
1-800-851-1085
assist@arrowsheds.com
04AG
4
Unpainted
7
Unpainted
10
Unpainted
16
Painted
19
Unpainted
22
or
