USER MANUAL
AVX-HDMI2-HDB-KIT
HDMI 2.0
EXTENDER
24/7 TECHNICAL SUPPORT AT 1.877.877.2269 OR VISIT BLACKBOX.COM
+
I
DC 12V
HDBT IN
RECEIVER
POWER STATUS HDCP LINK
IR IN
IR OUT
RS232
HDMI OUT
ETHERNET
ARC
S/PDIF IN
I I I I
AUDIO CONTROL

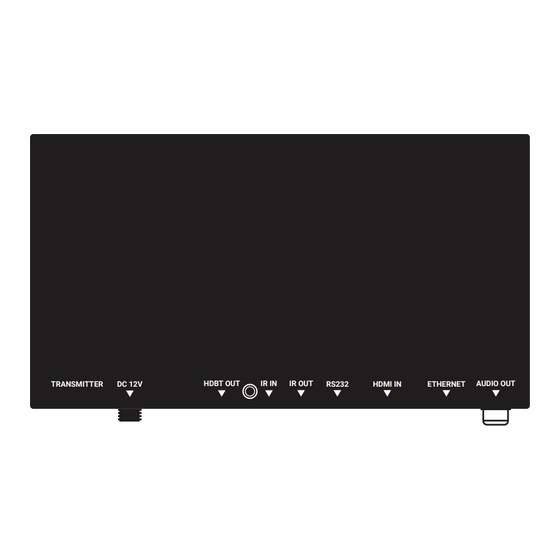

TRANSMITTER
AUDIO IN
+
I
DC 12V
HDBT OUT
IR IN
POWER STATUS HDCP LINK
IR OUT
HDMI IN
ETHERNET
AUDIO OUT
RS232
Advertisement
Table of Contents
Related Manuals for Black Box AVX-HDMI2-HDB-KIT
Summary of Contents for Black Box AVX-HDMI2-HDB-KIT
- Page 1 USER MANUAL AVX-HDMI2-HDB-KIT HDMI 2.0 EXTENDER 24/7 TECHNICAL SUPPORT AT 1.877.877.2269 OR VISIT BLACKBOX.COM DC 12V HDBT IN IR IN IR OUT RS232 HDMI OUT ETHERNET AUDIO IN RECEIVER S/PDIF IN I I I I AUDIO CONTROL POWER STATUS HDCP LINK...
-
Page 2: Table Of Contents
5.1 RS-232 Pinout ......................................17 5.2 RS-232 Passthrough ....................................18 6. TROUBLESHOOTING ................................... 19 6.1 Troubleshooting Steps ................................... 19 6.2 Contacting Black Box .....................................19 APPENDIX A. REGULATORY INFORMATION ..........................20 A.1 FCC Statement .......................................20 A.2 NOM Statement .....................................21 APPENDIX B. DISCLAIMER/TRADEMARKS ..........................22 B.1 Disclaimer .......................................22... -
Page 3: Important Safety Instructions
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 IMPORTANT SAFETY INSTRUCTIONS TECHNICAL SUPPORT 1.877.877.2269 1. Do not expose this apparatus to rain, moisture, dripping or splashing liquids. Do not place any objects filled with liquids, such as vases, on the apparatus. -
Page 4: Specifications
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 1: SPECIFICATIONS TECHNICAL SUPPORT 1.877.877.2269 TABLE 1-1. SPECIFICATIONS SPECIFICATION DESCRIPTION Transmitter Video Input (1) Locking HDMI female Input Signal Type HDMI with 4K 800 x 600, 1024 x 768, 1280 x 720, 1280 x 768, 1280 x 800, 1280 x 960, 1280 x 1024, 1360 x 768, 1366 x 768, Input/Output Resolution 1440 x 900, 1600 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200, 2560 x 1440, 2560 x 1600, 3840 x 2160P, Support... - Page 5 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 1: SPECIFICATIONS TECHNICAL SUPPORT 1.877.877.2269 TABLE 1-1 (CONTINUED). SPECIFICATIONS SPECIFICATION DESCRIPTION General ESD Protection Human-Body Model: ±8 kV (air-gap discharge)/±4 kV (contact discharge) Surge Protection Voltage: ±1 kV Data communication cord: 1 kV Electrical Fast Transient/Burst Power cord: 2 kV Approvals...
-
Page 6: Overview
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: OVERVIEW TECHNICAL SUPPORT 1.877.877.2269 2.1 INTRODUCTION The HDMI 2.0 HDBaseT Extender supports 4K @ 60 4:4:4 resolution and complies with HDR and HDCP 2.2 standars. It distributes uncompressed UHD video, audio, power, and IR together up to 328 feet (100 meters) over a single CATx cable. The extender supports Dolby and DTS HD audio, bi-directional IR control, in a low-profile box. -
Page 7: What's Included
CHAPTER 2: OVERVIEW TECHNICAL SUPPORT 1.877.877.2269 2.3 WHAT’S INCLUDED Your package should include the following items. If anything is missing or damaged, contact Black Box Technical Support at 877-877-2269 or info@blackbox.com AVX-HDMI2-HDB-KIT includes: Š (1) Transmitter (AVX-HDMI2-HDB-TX) Š Š (1) Receiver (AVX-HDMI2-HDB-RX) Š... -
Page 8: Hardware Description
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: OVERVIEW TECHNICAL SUPPORT 1.877.877.2269 2.4 HARDWARE DESCRIPTION The HDMI 2.0 Extender — HDBaseT, 4K60, Audio, IR consists of a Transmitter unit and a Receiver unit. 2.4.1 TRANSMITTER Figures 2-1 and 2-2 show the front, top and back panels of the transmitter. Table 2-1 describes its components. POWER STATUS HDCP LINK... - Page 9 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: OVERVIEW TECHNICAL SUPPORT 1.877.877.2269 TABLE 2-1. TRANSMITTER COMPONENTS NUMBER IN COMPONENT DESCRIPTION FIGURE 2-1 ON: The transmitter is powered on. Power LED OFF: The transmitter is powered off. Flashing: The transmitter is working properly. Status LED OFF: The transmitter is not working properly.
-
Page 10: Receiver
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: OVERVIEW TECHNICAL SUPPORT 1.877.877.2269 2.4.2 RECEIVER Figures 2-3 and 2-4 show the front and back panels of the receiver. Table 2-2 describes its components. FRONT PANEL S/PDIF IN I I I I AUDIO CONTROL POWER STATUS HDCP... - Page 11 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 2: OVERVIEW TECHNICAL SUPPORT 1.877.877.2269 TABLE 2-2. RECEIVER COMPONENTS NUMBER IN COMPONENT DESCRIPTION FIGURE 2-3 ON: The receiver is powered on. Power LED OFF: The receiver is powered off. Flashing: The receiver is working properly. Status LED OFF: The receiver is not working properly.
-
Page 12: Connections And Installation
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: CONNECTIONS AND INSTALLATION TECHNICAL SUPPORT 1.877.877.2269 INSTALLATION STEPS 1. Using quality HDMI cables, connect an HDMI source (such as Blu-ray, games console, satellite/cable TV, media server etc.) to the HDMI IN port of the transmitter. - Page 13 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: CONNECTIONS AND INSTALLATION TECHNICAL SUPPORT 1.877.877.2269 TV REMOTE AV RECEIVER BROADBAND IR EMITTER HDMI AUDIO RECEIVER DC 12V HDBT OUT IR IN IR OUT RS232...
- Page 14 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 3: CONNECTIONS AND INSTALLATION TECHNICAL SUPPORT 1.877.877.2269 AV RECEIVER TV REMOTE n n n n n n n n n BROADBAND IR HDMI AUDIO RECEIVER EMITTER DC 12V HDBT OUT IR IN IR OUT RS232...
-
Page 15: Operating With Ir
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: OPERATING WITH IR TECHNICAL SUPPORT 1.877.877.2269 4.1 IR CONTROL The IR passthrough function allows you to control the source from the display location or control the display from the source location. 4.2 CONTROL THE DISPLAY In this case, IR IN port on the transmitter is connected to a broadband IR receiver and the IR OUT port on the receiver is connected to an IR emitter. -
Page 16: Control The Source
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 4: OPERATING WITH IR TECHNICAL SUPPORT 1.877.877.2269 4.2 CONTROL THE SOURCE In this case, the IR OUT port of the transmitter is connected to an IR emitter and the IR IN port of the receiver is connected to a broadband IR receiver. -
Page 17: Operating With Rs-232
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 5: OPERATING WITH RS-232 TECHNICAL SUPPORT 1.877.877.2269 5.1 RS-232 PINOUT The following figure shows the RS-232 pinout. Please connect with the Phoenix connectors provided. FIGURE 5-1. RS-232 PINOUT 1.877.877.2269 BLACKBOX.COM... -
Page 18: Rs-232 Passthrough
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 5: OPERATING WITH RS-232 TECHNICAL SUPPORT 1.877.877.2269 5.2 RS-232 PASSTHROUGH According to the bi-directional RS-232 pass through function, you can use two RS-232 control systems for serial communication by connecting to the devices via serial cables to control the source device or the display. CONTROL SYSTEM RS232 CABLE DC 12V... -
Page 19: Troubleshooting
If you determine that your extender is malfunctioning, do not attempt to alter or repair the unit. It contains no user-serviceable parts. Contact Black Box Technical Support at 877-877-2269 or info@blackbox.com. Before you do, make a record of the history of the problem. We will be able to provide more efficient and accurate assistance if you have a complete description, including: Š... -
Page 20: Appendix A. Regulatory Information
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 1: HEADLINE APPENDIX A: REGULATORY COMPLIANCE TECHNICAL SUPPORT 1.877.877.2269 A.1 FCC STATEMENT This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause inter ference to radio communication. -
Page 21: Nom Statement
NEED HELP? LEAVE THE TECH TO US LIVE 24/7 CHAPTER 1: HEADLINE APPENDIX A: REGULATORY COMPLIANCE TECHNICAL SUPPORT 1.877.877.2269 A.2 NOM STATEMENT 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. -
Page 22: Appendix B. Disclaimer/Trademarks
B.1 DISCLAIMER Black Box Corporation shall not be liable for damages of any kind, including, but not limited to, punitive, consequential or cost of cover damages, resulting from any errors in the product information or specifications set forth in this document and Black Box Corporation may revise this document at any time without notice. - Page 23 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 NOTES TECHNICAL SUPPORT 1.877.877.2269 ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ _________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ 1.877.877.2269 BLACKBOX.COM...
- Page 24 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 TECHNICAL SUPPORT 1.877.877.2269 © COPYRIGHT 2018 BLACK BOX CORPORATION. ALL RIGHTS RESERVED. AVX-HDMI2-HDB-KIT_USER_REV1.PDF...
