Wizard Multimedia Extender LP
Extend analog video up to 500 feet (152.4 m)
over twisted-pair cable.
Streamlines HD digital signage setup.
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
Customer
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax
Support
724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence,
Information
PA 15055-1018 • Web site: www.blackbox.com • E-mail: info@blackbox.com
BLACK BOX
AVU4001A
AVU4001A-PS
®
Advertisement
Table of Contents
Related Manuals for Black Box AVU4001A
Summary of Contents for Black Box AVU4001A
-
Page 1: Black Box
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) Customer FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax Support 724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, Information PA 15055-1018 • Web site: www.blackbox.com • E-mail: info@blackbox.com... - Page 2 (c) Connect the equipment to an outlet on a circuit differ- ent from that to which the receiver is connected. (d) Consult the supplier or an experienced radio/TV technician for help. Page 2 AVU4001A 724-746-5500 | blackbox.com...
-
Page 3: Instrucciones De Seguridad
12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada. AVU4001A Page 3 724-746-5500 | blackbox.com... - Page 4 C: El aparato ha sido expuesto a la lluvia; o D: El aparato parece no operar normalmente o muestra un cambio en su desempeño; o E: El aparato ha sido tirado o su cubierta ha sido dañada. Page 4 AVU4001A 724-746-5500 | blackbox.com...
-
Page 5: Table Of Contents
Trademarks Used in this Manual/Table of Contents Trademarks Used in this Manual Black Box and the Double Diamond logo are registered trademarks, and ServSwitch is a trademark, of BB Technologies, Inc. Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners. -
Page 6: Specifications
Interconnect: (1) RJ-45; Receiver: VGA (1) HD15 F; Interconnect: (1) RJ-45 Power: From the USB connection on the transmitter Size: Both transmitter and receiver: 0.9"H x 1.8"W x 2.5"D (2.3 x 4.6 x 6.4 cm) Page 6 AVU4001A 724-746-5500 | blackbox.com... -
Page 7: Overview

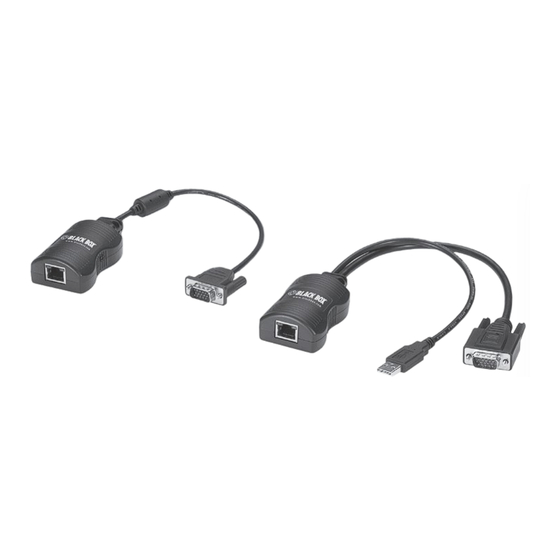

2.1 Introduction Simplify HD signage setup with this USB-line-powered, CATx-based VGA extender. The Black Box Wizard Multimedia Extender LP enables you to extend analog video over a maximum of 500 feet (152.4 m) of twisted-pair cable. It’s powered via USB from the transmitter end, so no additional power supply is required at the receiver. -
Page 8: Hardware Description
Figure 2-1. Local unit. Table 2-1. Local unit components. Component Description HD15 connector Links to video output port USB Type A connector Provides power to the unit RJ-45 connector Interconnects via RJ-45 cable to remote unit Page 8 AVU4001A 724-746-5500 | blackbox.com... -
Page 9: Remote Unit
Figure 2-2 shows the remote unit. Table 2-2 describes its components. HD15 connector RJ-45 connector Figure 2-2. Remote unit. Table 2-2. Remote unit components. Component Description HD15 connector Links to video input port RJ-45 connector Interconnects via RJ-45 cable to local unit AVU4001A Page 9 724-746-5500 | blackbox.com... -
Page 10: Connecting Your Wizard Multimedia Extender Lp
50 m, low-skew cable may also be required to avoid color fringing efffects within the video image. 2. Do not connect the local unit via CATx cable to anything other than the remote unit. Page 10 AVU4001A 724-746-5500 | blackbox.com... - Page 11 Chapter 3: Connecting Your Wizard Multimedia Extender LP Video and USB connections to the host computer Video connection to the display screen Figure 3-1. Connecting the local and remote extenders together via RJ-45 cable. AVU4001A Page 11 724-746-5500 | blackbox.com...
-
Page 12: Video Sharpness Adjustment
4. Turn the screw counter-clockwise until the white shadow disappears and the edges of your image become sharp. Screw Figure 4-2. Screw on the side of the remote module. Page 12 AVU4001A 724-746-5500 | blackbox.com... -
Page 13: Ddc Information
If a problem occurs while attempting to harvest DDC information, the yellow indicator on the local unit will show a number of distinct flashes. Note the number of flashes in case you need to contact technical support, but otherwise retry the procedure. AVU4001A Page 13 724-746-5500 | blackbox.com... -
Page 14: Power Control
16 seconds. It will not attempt to check the line or turn power back on. The yellow indicator will remain off until video input is restored. Page 14 AVU4001A 724-746-5500 | blackbox.com... - Page 15 NOTES AVU4001A Page 15 724-746-5500 | blackbox.com...
- Page 16 724-746-5500 or blackbox.com. About Black Box Black Box Network Services is your source for more than 118,000 networking and infrastructure products. You’ll find everything from cabinets and racks and power and surge protection products to media converters and Ethernet switches all supported by free, live 24/7 Tech Support available in 30 seconds or less.
