- Page 1 USER MANUAL AVX-HDMI2-HDB-R2 HDMI 2.0 EXTENDER 24/7 TECHNICAL SUPPORT AT 1.877.877.2269 OR VISIT BLACKBOX.COM...
-
Page 2: Table Of Contents
5.1 RS-232 Pinout ............................................17 5.2 RS-232 Passthrough ..........................................18 6. TROUBLESHOOTING ..........................................19 6.1 Troubleshooting Steps ........................................19 6.2 Contacting Black Box .......................................... 19 APPENDIX A. REGULATORY INFORMATION ................................20 A.1 FCC Statement ............................................20 A.2 NOM Statement ............................................. 21 APPENDIX B. DISCLAIMER/TRADEMARKS ................................22 B.1 Disclaimer ..............................................22... - Page 3 NEED HELP? LE AVE THE TECH TO US LIVE 24/7 TECHNICAL SAFETY INSTRUCTIONS SUPPORT 1.877.877.2269 1. Do not expose this apparatus to rain, moisture, dripping or splashing liquids. Do not place any objects filled with liquids, such as vases, on the apparatus. 2.
-
Page 4: Specifications
NEED HELP? LE AVE THE TECH TO US LIVE 24/7 TECHNICAL CHAPTER 1: SPECIFICATIONS SUPPORT 1.877.877.2269 TABLE 1-1. SPECIFICATIONS SPECIFICATION DESCRIPTION Transmitter Video Input (1) HDMI female Input Signal Type HDMI with 4K 800 x 600, 1024 x 768, 1280 x 720, 1280 x 768, 1280 x 800, 1280 x 960, 1280 x 1024, 1360 x 768, 1366 x 768, Input/Output Resolution 1440 x 900, 1600 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200, 2560 x 1440, 2560 x 1600, Support... - Page 5 NEED HELP? LE AVE THE TECH TO US LIVE 24/7 TECHNICAL CHAPTER 1: SPECIFICATIONS SUPPORT 1.877.877.2269 TABLE 1-1 SPECIFICATIONS (CONTINUED) SPECIFICATION DESCRIPTION General ESD Protection Human-Body Model: ±8 kV (air-gap discharge)/±4 kV (contact discharge) Surge Protection Voltage: ±1 kV Data communication cord: 1 kV Electrical Fast Transient/Burst Power cord: 2 kV Approvals...
-
Page 6: Overview
NEED HELP? LE AVE THE TECH TO US LIVE 24/7 TECHNICAL CHAPTER 2: OVERVIEW SUPPORT 1.877.877.2269 2.1 INTRODUCTION The HDMI 2.0 CATx Extender supports 4K @ 60 4:4:4 resolution and complies with HDR and HDCP 2.2 standars. It distributes uncompressed UHD video, audio, power, and IR together up to 328 feet (100 meters) over a single CATx cable. The extender supports Dolby and DTS HD audio, bi-directional IR control, in a low-profile box. -
Page 7: What's Included
CHAPTER 2: OVERVIEW TECHNICAL SUPPORT 1.877.877.2269 2.3 WHAT’S INCLUDED Your package should include the following items. If anything is missing or damaged, contact Black Box Technical Support at 877-877-2269 or info@blackbox.com AVX-HDMI2-HDB includes: Š (1) Transmitter Š (1) Receiver ... -
Page 8: Hardware Description

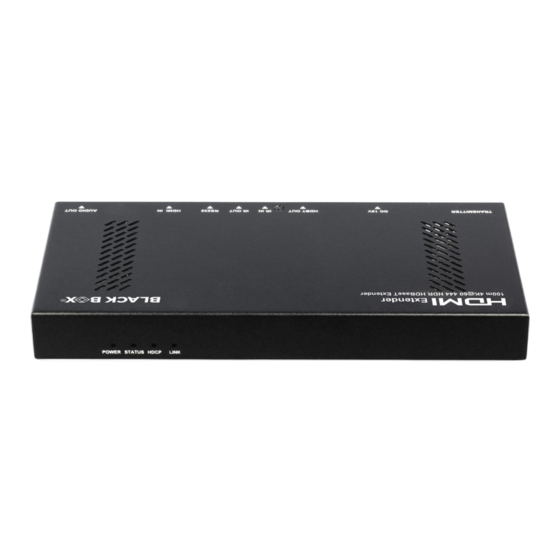

NEED HELP? LE AVE THE TECH TO US LIVE 24/7 TECHNICAL CHAPTER 2: OVERVIEW SUPPORT 1.877.877.2269 2.4 HARDWARE DESCRIPTION The HDMI 2.0 Extender — CATx, 4K60, Audio, IR consists of a Transmitter unit and a Receiver unit. 2.4.1 TRANSMITTER Figures 2-1 and 2-2 show the front, top and back panels of the transmitter. Table 2-1 describes its components. FIGURE 2-1. - Page 9 NEED HELP? LE AVE THE TECH TO US LIVE 24/7 CHAPTER 2: OVERVIEW TECHNICAL SUPPORT 1.877.877.2269 TABLE 2-1. TRANSMITTER COMPONENTS NUMBER IN COMPONENT DESCRIPTION FIGURE 2-1 ON: The transmitter is powered on. Power LED OFF: The transmitter is powered off. Flashing: The transmitter is working properly.
-
Page 10: Receiver
NEED HELP? LE AVE THE TECH TO US LIVE 24/7 TECHNICAL CHAPTER 2: OVERVIEW SUPPORT 1.877.877.2269 2.4.2 RECEIVER Figures 2-3 and 2-4 show the front and back panels of the receiver. Table 2-2 describes its components. FIGURE 2-3. RECEIVER FRONT PANEL FIGURE 2-4. - Page 11 NEED HELP? LE AVE THE TECH TO US LIVE 24/7 CHAPTER 2: OVERVIEW TECHNICAL SUPPORT 1.877.877.2269 TABLE 2-2. RECEIVER COMPONENTS NUMBER IN COMPONENT DESCRIPTION FIGURE 2-3 ON: The receiver is powered on. Power LED OFF: The receiver is powered off. Flashing: The receiver is working properly.
-
Page 12: Connections And Installation
NEED HELP? LE AVE THE TECH TO US LIVE 24/7 TECHNICAL CHAPTER 3: CONNECTIONS AND INSTALLATION SUPPORT 1.877.877.2269 INSTALLATION STEPS 1. Using quality HDMI cables, connect an HDMI source (such as Blu-ray, games console, satellite/cable TV, media server etc.) to the HDMI IN port of the transmitter. 2. - Page 13 NEED HELP? LE AVE THE TECH TO US LIVE 24/7 TECHNICAL CHAPTER 3: CONNECTIONS AND INSTALLATION SUPPORT 1.877.877.2269 TV REMOTE AV RECEIVER EMITTER BROADBAND IR HDMI AUDIO RECEIVER TRANSMITTER DC 12V CATx OUT IR IN IR OUT...
- Page 14 NEED HELP? LE AVE THE TECH TO US LIVE 24/7 TECHNICAL CHAPTER 3: CONNECTIONS AND INSTALLATION SUPPORT 1.877.877.2269 TV REMOTE AV RECEIVER EMITTER BROADBAND IR HDMI AUDIO RECEIVER TRANSMITTER DC 12V CATx OUT IR IN IR OUT...
-
Page 15: Operating With Ir
NEED HELP? LE AVE THE TECH TO US LIVE 24/7 TECHNICAL CHAPTER 4: OPERATING WITH IR SUPPORT 1.877.877.2269 4.1 IR CONTROL The IR passthrough function allows you to control the source from the display location or control the display from the source location. -
Page 16: Control The Source
NEED HELP? LE AVE THE TECH TO US LIVE 24/7 TECHNICAL CHAPTER 4: OPERATING WITH IR SUPPORT 1.877.877.2269 4.2 CONTROL THE SOURCE In this case, the IR OUT port of the transmitter is connected to an IR emitter and the IR IN port of the receiver is connected to a broadband IR receiver. -
Page 17: Operating With Rs-232
NEED HELP? LE AVE THE TECH TO US LIVE 24/7 TECHNICAL CHAPTER 5: OPERATING WITH RS-232 SUPPORT 1.877.877.2269 5.1 RS-232 PINOUT The following figure shows the RS-232 pinout. Please connect with the Phoenix connectors provided. FIGURE 5-1. RS-232 PINOUT 1.877.877.2269 BLACKBOX.COM... -
Page 18: Rs-232 Passthrough
NEED HELP? LE AVE THE TECH TO US LIVE 24/7 TECHNICAL CHAPTER 5: OPERATING WITH RS-232 SUPPORT 1.877.877.2269 5.2 RS-232 PASSTHROUGH According to the bi-directional RS-232 pass through function, you can use two RS-232 control systems for serial communication by connecting to the devices via serial cables to control the source device or the display. CONTROL SYSTEM RS232 CABLE TRANSMITTER... -
Page 19: Troubleshooting
NEED HELP? LE AVE THE TECH TO US LIVE 24/7 TECHNICAL CHAPTER 6: TROUBLESHOOTING SUPPORT 1.877.877.2269 1.877.877.2269 BLACKBOX.COM... -
Page 20: Troubleshooting Steps
If you determine that your extender is malfunctioning, do not attempt to alter or repair the unit. It contains no user- serviceable parts. Contact Black Box Technical Support at 877-877-2269 or info@blackbox.com. Before you do, make a record of the history of the problem. We will be able to provide more efficient and accurate assistance if you have a complete description, including: Š... -
Page 21: Fcc Statement
NEED HELP? LE AVE THE TECH TO US LIVE 24/7 TECHNICAL APPENDIX A: REGULATORY COMPLIANCE SUPPORT 1.877.877.2269 A.1 FCC STATEMENT This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause inter ference to radio communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial environment. -
Page 22: Nom Statement
NEED HELP? LE AVE THE TECH TO US LIVE 24/7 CHAPTER 1: HEADLINE TECHNICAL APPENDIX B: DISCLAIMER/TRADEMARKS SUPPORT 1.877.877.2269 A.2 NOM STATEMENT 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. -
Page 23: Disclaimer
B.1 DISCLAIMER Black Box Corporation shall not be liable for damages of any kind, including, but not limited to, punitive, consequential or cost of cover damages, resulting from any errors in the product information or specifications set forth in this docu- ment and Black Box Corporation may revise this document at any time without notice. - Page 24 NEED HELP? LEAVE THE TECH TO US LIVE 24/7 TECHNICAL SUPPORT 1.877.877.2269 © COPYRIGHT 2022. BLACK BOX CORPORATION. ALL RIGHTS RESERVED. AVX-HDMI2-HDB-R2_USER_REV1.PDF...
