- Page 1 Operating manual High-pressure cleaner quadro 599 TST quadro 799 TST quadro 899 TST www.kraenzle.com...
- Page 2 Operating manual High-pressure cleaner quadro 599 TST quadro 799 TST quadro 899 TST Operating manual! Read and conform safety instructions before use! Keep instructions in a safe place for later use and pass them on to any future user.
-
Page 3: Table Of Contents
Contents Explanatory symbols Dear customer: Explanatory symbols used in the operating manual Failure to observe this note may entail We would like to congratulate you on the purchase of your new high pressure environmental damage. cleaner and thank you for your confidence in our products! Your choice has fallen on an absolute quality product! Note on the use of the high pressure cleaner that failure to Kränzle high pressure cleaners are characterized by their convenient and compact... -
Page 4: Safety Notes
Safety notes Safety notes - This is prohibited! User operating the high pressure cleaner should wear the necessary protective clothing, i.e. waterproof clothing, rubber boots, safety goggles, headwear etc. It is prohibited to use the high pressure cleaner in close vicinity to people lacking suitable protective clothing. - Page 5 Safety notes - This is prohibited! Safety notes - This is prohibited! Never direct the high pressure jet at power Never direct the high pressure jet at people sockets or any other electrical installations! or animals! Within the working area, all live parts are to Never direct the high pressure jet at your- be protected from both water jet and spray self or other persons, not even to clean...
-
Page 6: Description Of High Pressure Cleaner

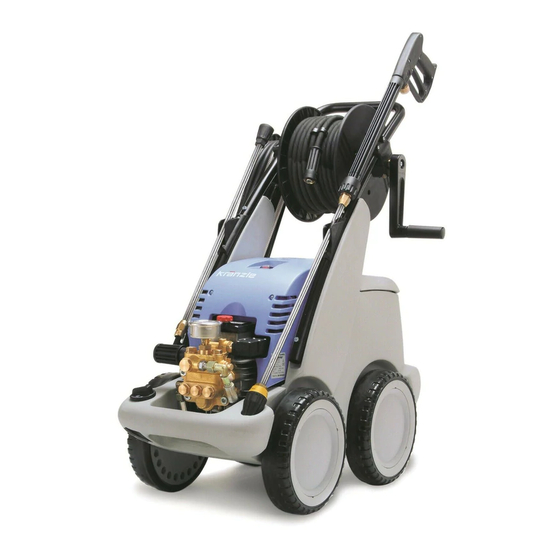

Description of high pressure cleaner Design: This is what you have purchased: The quadro 599 TST, quadro 799 TST, quadro 899 TST cleaner is a mobile high pressure cleaner with an advanced arrangement system. Please see construction scheme for more details. -
Page 7: General Rules
General rules General rules Range of application Oil change Use high pressure cleaner for cleaning purposes only using high pressure jet with or without cleaning detergent. The first oil change should be carried out after approximately 50 operating hours, Environmental, refuse disposal and water protection regulations then every year or after 250 operating must be observed! hours. - Page 8 Functional details Functional details Please note: Lack of water Insufficient quantity of electricity Lack of water occurs more often than you If there are too many collectors in your probably believe. The more powerful a high proximity connected to the network at the pressure cleaner is the greater is the danger same time, the available voltage and the that a lack of water occurs.
-
Page 9: Functional Details
Functional details Functional details Water and cleaning system Pressure control valve - safety valve Water can be connected at mains pressure to the high pressure pump. The pressure control valve - safety valve protects the high pressure cleaner from A float valve in the water tank regulates the water inlet. Then, the water is sucked a build up of excess pressure, and is designed not to permit an excess pressure by the high pressure pump from the water tank and supplied to the lance under to be selected for operation. - Page 10 Functional details Putting into operation Safety shutdown For moving the high pressure cleaner to the place of use, please release If the high pressure cleaner is accidentally not turned off after use or the safety locking break. trigger gun is not used for 20 minutes, the high pressure cleaner automatically changes into safety state by deactivation.
- Page 11 Putting into operation Putting into operation Release fixation of hose drum. Check water inlet filter for cleanliness Unwind high pressure hose straight prior to putting the high pressure and without nooses. Completely cleaner into operation. unwind hose. (When using high pres- Manually unscrew plug-in coupling.
-
Page 12: Putting Into Operation
Putting into operation Direct suction 10. Connect to circuit (see technical data). Direct water extraction Due to the suction capacity of its high pressure pump (up to 2.5 m suction height, max. hose length 3 m) this high pressure cleaner can suck in water for cleaning purposes from separate containers or ponds. -
Page 13: Applying Additives
Applying additives Taking out of operation Suction of additives Switch off the high pressure cleaner Due to the water tank fitted to the medium quadro series it is now possible to 2. Cut off the water supply directly suck the detergent into the high pressure pump thus reducing output loss and increasing the efficiency considerably. -
Page 14: Small Repairs - Do It Yourself
Small repairs - do it yourself Small repairs - do it yourself Problem Problem No water from nozzle although the high pressure cleaner is running. Irregular jet from nozzle. The stainless steel pressure gauge shows full pressure. The stainless steel pressure gauge shows low pressure. Cause Cause Most likely the nozzle is blocked. - Page 15 Small repairs - do it yourself Small repairs - do it yourself Problem Problem After closing the safety trigger gun the high pressure cleaner After closing the safety trigger gun the high pressure cleaner keeps switching on and off. keeps switching on and off. The stainless steel pressure gauge continuously displays full pressure.
-
Page 16: Kränzle Accessories
Kränzle accessories Kränzle accessories Double lance with insulated ISO handle Sludge suction cleaner Low pressure nozzle from stainless steel D3035 as standard max. suction height 3 m Nozzle system D00045 660 mm Item no. 12.131 1 Item no. 41.801 1000 mm Item no. 12.131 Floor washer Round Cleaner (stainless steel) from stainless steel... -
Page 17: Ec Declaration Of Conformity
Our warranty obligation is understood to exclusively cover material and manufacturing defects, wear is not covered by warranty. Nominal flow: Kränzle quadro 599 TST: 600 l/h Kränzle quadro 799 TST: 780 l/h The high pressure cleaner is to be operated in conformity with this Operating Kränzle quadro 899 TST: 900 l/h... -
Page 18: Inspection Reports
Inspection reports Inspection reports High pressure cleaners for industrial use have to be checked by an expert every High pressure cleaners for industrial use have to be checked by an expert every 12 months! Inspection report on annually carried out Labour Safety Inspection (UVV) 12 months! Inspection report on annually carried out Labour Safety Inspection (UVV) according to the Guidelines for Liquid Spray Equipment. - Page 19 Josef Kränzle GmbH & Co. KG Rudolf-Diesel-Straße 20 89257 Illertissen (Germany) sales @ kraenzle.com Made Germany www.kraenzle.com...
