Summary of Contents for Hypex Electronics FusionAmp FA251
- Page 1 FusionAmp User's Guide...
- Page 2 Hi there! This user guide is preliminary, so things might change, disappear, be added or whatever. No rights can be derived from this information. If you have questions, remarks or feedback, please direct them to: sales@hypex.nl...
-
Page 3: Table Of Contents
FusionAmp, an introduction Table of Contents Thank you for purchasing the new Hypex Plate Chapter Page Amplifier, powered by our NCORE technology. Introduction, Table of contents Safety precautions This FusionAmp will be the basis of a powerful active subwoofer, a two-way or a three-way monitor. Getting started The FusionAmp family consists of the following Fusion Accessories... -
Page 4: Safety Precautions
Apparatets stikprop skal tilsluttes en stikkontakt med jord, som giver forbindelse til stikproppens jord. 21. Changes or modifications not expressly approved by Hypex Electronics will void compliance and therefore the Laite on liitettävä suojakoskettimilla varustettuun user's authority to operate the equipment. -
Page 5: Getting Started
Getting Started Fusion Accessories We understand you want to experience the sound of With your FusionAmp you may need some additional your new FusionAmp powered speaker as quickly as accessories, these can be optionally ordered: possible. Therefore, we have made you this ‘roadmap to success’. -
Page 6: Features
Features Fan control Power modes The FA502 and FA503 feature an advanced cooling # Ultra-low power system. The software monitors the signal input and Meets 2013 ERP Lot 6 0.5W. In this mode the module temperature. A proportional–integral FusionAmp scans for analogue input only. If an algorithm controls the fan speed. -
Page 7: Features
Thermal protection Preset selection All amplifiers produce heat, even highly efficient Class The FusionAmp can store up to three presets, each D amplifiers. Therefore, the FusionAmp has an containing: internal thermal protection. Source Filter # Thermal limiting Gain offset If the amplifier is reaching its maximum temperature, Clip mode the output is lowered by 6dB. -
Page 8: Using The Remote (Optional)
Using the remote (optional) Application examples All modules can be extended with the Fusion IR A couple of examples are given. These examples are Receiver set. This set contains a PCBA with IR receiver meant as reference. Other configurations are also and bi-colour LED, and the necessary cables. - Page 9 Multi-way top speakers with dual mono sub. You can choose for a full-digital setup here. The master (1) can be used as input and can be daisy chained to the other modules. A digital signal carries both left and right channel. Using HFD the channel can be selected and filters need to be configured accordingly.
-

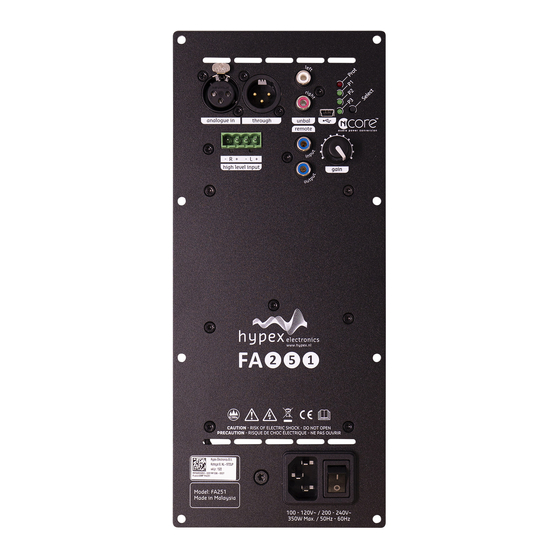

Page 10: Connections One-Way Models
Connections one-way models ❶ ❷ ❹ ❸ analogue in through unbal remote ❺ - R + - L + ❼ high level input gain ❻ Balanced analogue I/O: High level input: ❶ ❺ Differential (also known as balanced) analogue input. The high level input can be used to connect to your Refer to chapter Technical Specifications for more existing amplifier if no pre-out is available. -
Page 11: Connections Multi-Way Models
Connections multi-way models ❶ ❷ ❹ ❸ analogue in through unbal through optical S/PDIF AES in ❼ ❺ ❻ through AES in Balanced analogue I/O: Digital channel selection: ❶ Digital signal carries both left and right signal. Differential (also known as balanced) analogue input. Therefore, the desired channel can be configured Refer to chapter Technical Specifications for more using HFD. -
Page 12: Installation
Installation Dimensions: FA122 FA123 FA251 FA252 FA253 FA501 FA502 FA503 Size D and E is the recommended milling dimension for mounting the FusionAmp inside your speaker cabinet. This leaves 12mm on each side for the mounting screws. Weight: FA122: 815 gr FA123: 955 gr FA251:... -
Page 13: Installation
Installation instruction: For your own safety: never remove the protective earth connections. Always connect the FusionAmp to a power outlet with protective earth. Always disconnect the FusionAmp if serviced. The FusionAmp is not airtight. For optimal performance the module should be installed in a separate compartment in the speaker cabinet. -
Page 14: Connecting The Speakers
Connecting speakers General recommendations Three-way model For best performance, Hypex recommends to twist Connect the main amplifiers in the same way as the the speaker wires per channel. Route the speaker two-way model. Additionally connect the third cables in such a way that the cables and connectors channel using the included cable assembly. -
Page 16: System Information
System information Auto switching Line input power DSP Filters: Low Line input voltage: 100-120Vac ±10% 15 biquads per amplifier. A one-way Fusion Amp has High Line input voltage: 200-240Vac ±10% 15 biquads, a two-way has 2x15 biquads and a three- Line input frequency: 47 - 63 Hz way has 3x15 biquads. -
Page 17: Advanced System Information
Advanced system information This information is given for reference and to guide Gain jumper (advanced) you to connect your FusionAmp in the correct way. Do This is an advanced modification. If you are not not modify the internal wiring of the FusionAmp. familiar with delicate soldering or you do not feel confident doing this, please ask an expert for Balanced XLR connection:... -
Page 18: Troubleshooting
Troubleshooting Frequently asked questions No power: Why is there not a FusionAmp with one Check the power outlet NC250MP or NC500MP, with an additional Ÿ The internal fuse may be blown. This fuse is not NC100HF? Ÿ user replaceable. Please contact Hypex Since the FA123 and FA253 can be configured in Electronics for more information about service BTL, one can achieve the same result with better... -
Page 19: Warranty
Limited Warranty Revisions Hypex Electronics warrants this device for a period of Revision Comment Date two years after the original date of purchase against Doc. HW. defects due to faulty workmanship or materials arising from Normal Use of the device. The warranty... - Page 20 Hypex Electronics BV Kattegat 8 9723 JP Groningen, The Netherlands +31 50 526 4993 sales@hypex.nl www.hypex.nl...
