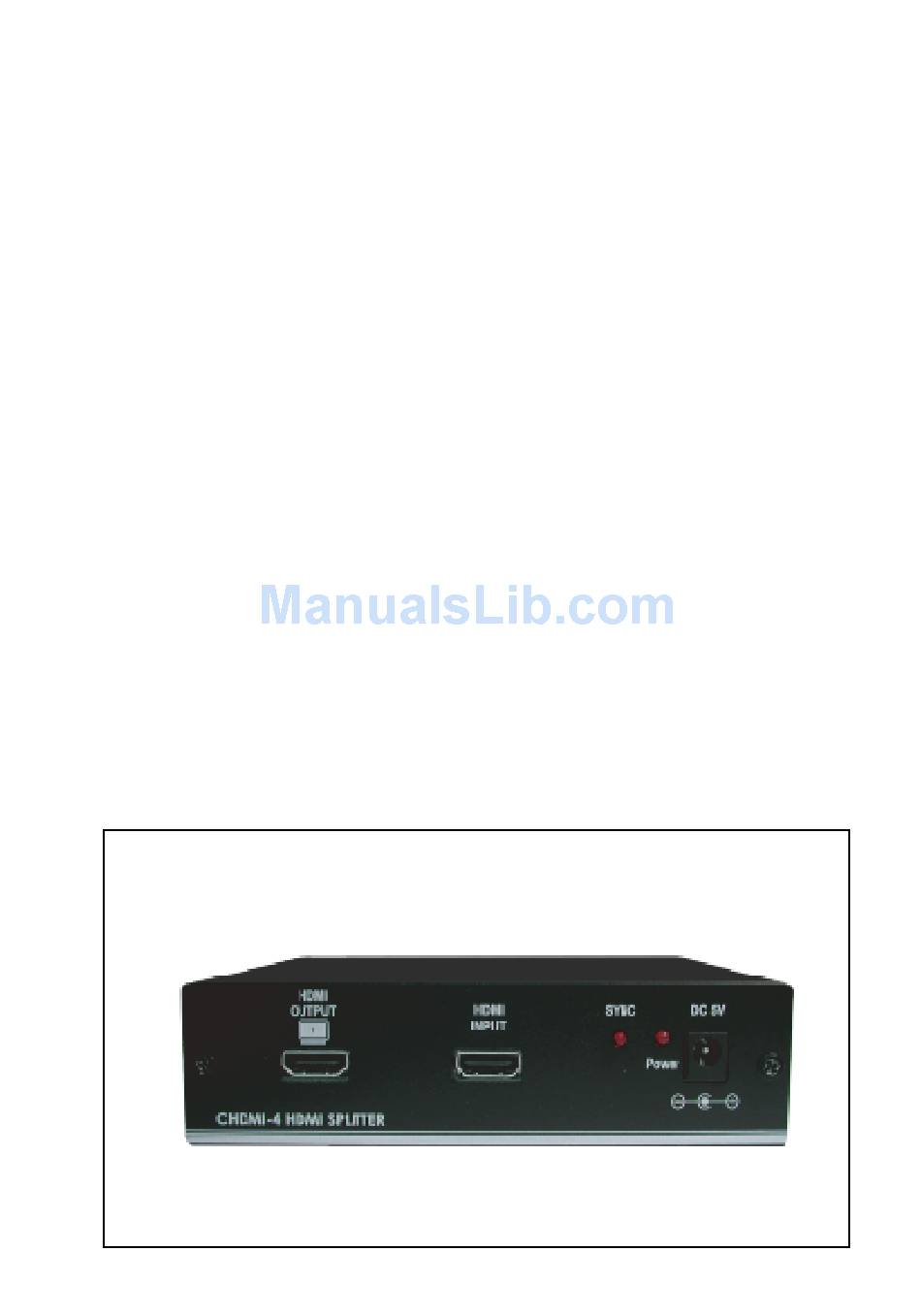

- Page 1 1x4 HDMI Distribution Amplifier Operation Manual CHDMI-4 Hypex Limited T: 020 8810 5885 E: sales@hypexuk.com W:www.hypex.co.uk...
-
Page 2: Operation Controls And Functions
Introduction Cypress CHDMI-4 is a high performance HDMI distribution amplifier. It allows one HDMI source to connect up to 4 HDMI displays simutaneously. Features 1. Built-in EDID and HDCP keyset allows each output to work independently in connecting to a HDMI display. -
Page 3: Specifications
DVD or Set-Top Box DVI to HDMI HDMI Cable Cable HDMI Cable HDMI HDMI SYNC DC 5V OUTPUT INPUT Power CHDMI-4 HDMI SPLITTER HDMI HDMI HDMI OUTPUT OUTPUT OUTPUT HDMI Cable HDMI to DVI Cable HDMI Cable Projector PHDMI display PC Monitor LCD TV Hypex Limited T: 020 8810 5885 E: sales@hypexuk.com W:www.hypex.co.uk...
