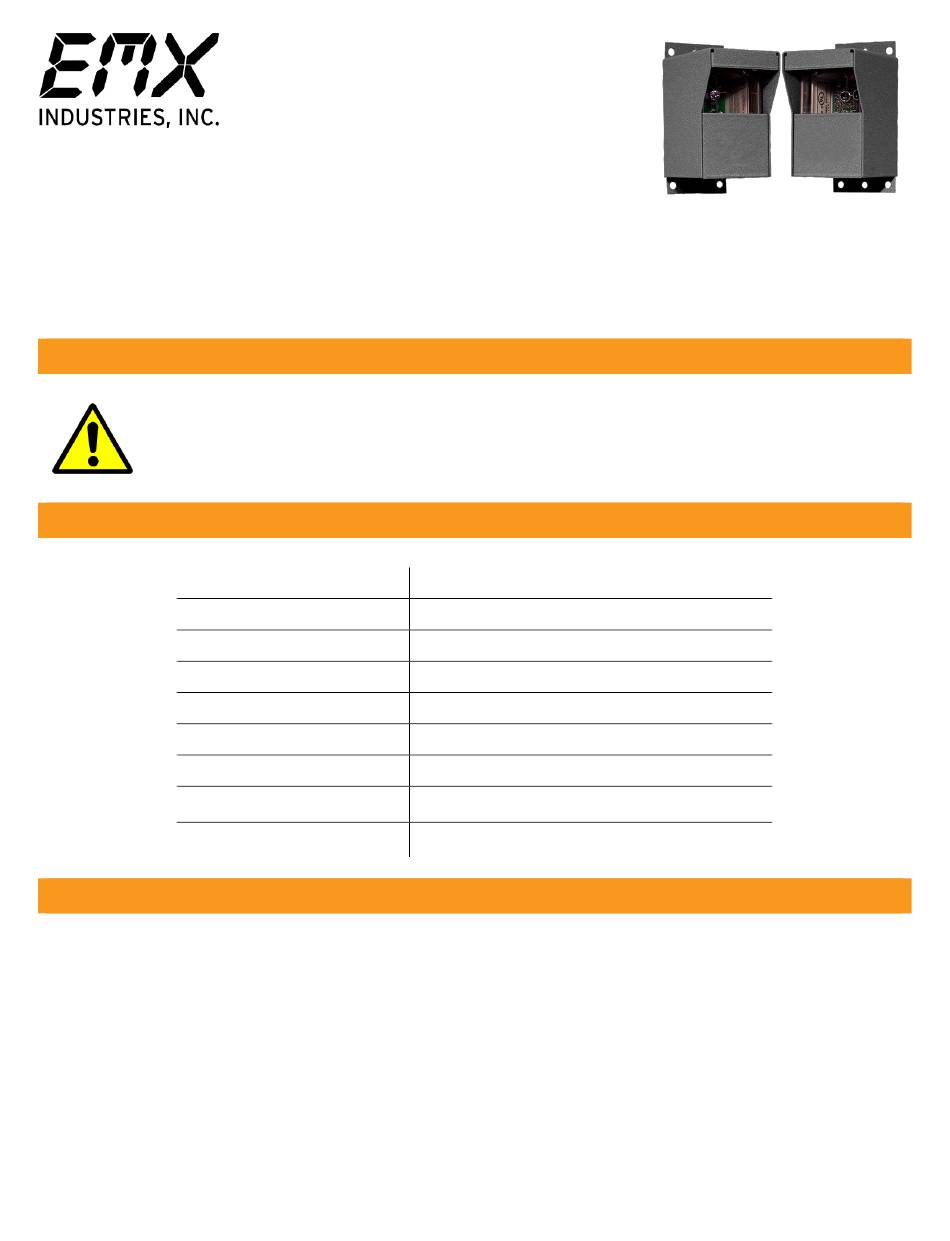

Instruction Manual
The IRB-325 thru beam photoeye is an external entrapment protection device type B1, non-contact sensor
for use with automatic gates and doors. The photoeye provides a signal to the gate or door operator
that the beam is or is not obstructed. The IRB-325 operates up to 65 feet and is UL325 compliant
with operators that require normally closed (NC) monitoring.
Cautions and Warnings
This product is an accessory or part of a system.
instructions from the gate or door operator manufacturer. Comply with all applicable codes
and safety regulations.
Specifications
Operating Range
Power
Current
Relay Contact Rating
Surge Protection
Relay Output
Operating Temperature
Dimensions (L x W x H)
Environmental Rating
Ordering Information
IRB-325
•
IRB-325-HD
•
IRB-325-SP
•
IRB-325-PT
•
EMX Industries, Inc.
IRB-325_Rev2.0_102219
IRB-325
™
UL325 Thru Beam Photoeye
Up to 65 ft (20 m)
12-24 VDC/AC
150 mA (relay activated)
1 A @ 30 VDC
Thermal fuse
Form C contacts (NO, COM, NC)
-40° to 170°F (-40° to 77°C)
3.2" (82 mm) x 3.06" (78 mm) x 5.03" (128
NEMA 4X
mm)
Thru beam photoeye
Protective hood, gray powder coated steel, set of two
Liquid tight strain relief connector, nylon, set of two
Mounting post, black powder coated steel, 2" x 2" x 2'
Tech support: 216-834-0761
technical@emxinc.com
ononly)
Install the IRB-325 according to
TM
1/4
Advertisement
Table of Contents
Related Manuals for EMX IRB-325
Summary of Contents for EMX IRB-325
- Page 1 The photoeye provides a signal to the gate or door operator that the beam is or is not obstructed. The IRB-325 operates up to 65 feet and is UL325 compliant with operators that require normally closed (NC) monitoring.
- Page 2 Power No Power 3. Sensitivity Jumper The IRB-325 has three sensitivity settings: high, medium or low. To adjust the sensitivity, move both jumpers to the desired high, medium or low setting. 4. Terminal Block The power inputs on both the receiver and transmitter are not polarity sensitive.
- Page 3 7. Place an obstruction (ex. hand) between the IRB-325 transmitter and receiver. Both red LEDs on the receiver will turn on. Check the operator control board and verify that the safety input is recognized by the operator.
- Page 4 Warranty EMX Industries, Inc. products have a warranty against defects in materials and workmanship for a period of two years from date of sale to our customer. EMX Industries, Inc. Tech support: 216-834-0761 IRB-325_Rev2.0_102219...
