Renesas RX63N-256KB Quick Start Manual

Quick Start
Application Interfaces
LCD Module
Ethernet Connector
Serial Port
LCD Module Header
CAN
DC Power Jack
Power LEDs
User Switches E1 Header
NOTE: This Quick Start Guide covers installation of the e
1. Installation
Do not connect the E1 debugger module until the software support has been installed.
1. Insert the DVD into your computer's DVD-ROM drive. The DVD should run the installation program
automatically. If the installer does not start, browse to the DVD root folder and double click on 'setup.exe'.
2. Windows™ 8 / 7 / Vista users may see "User Account Control" dialog box. If applicable, enter the
administrator password and click 'Yes'.
3. The installer welcome screen will open. Follow the on-screen instructions to install the RSK+ software. This
process will take several minutes.
Note:
You will be prompted to obtain a product activation code by logging onto the My Renesas website. Please
follow the on screen instructions.
When prompted to specify a different location for installing any of the tools, it is recommended that default
entries are accepted.
The Windows™ driver signing dialog box may be displayed. Please accept the driver to continue.

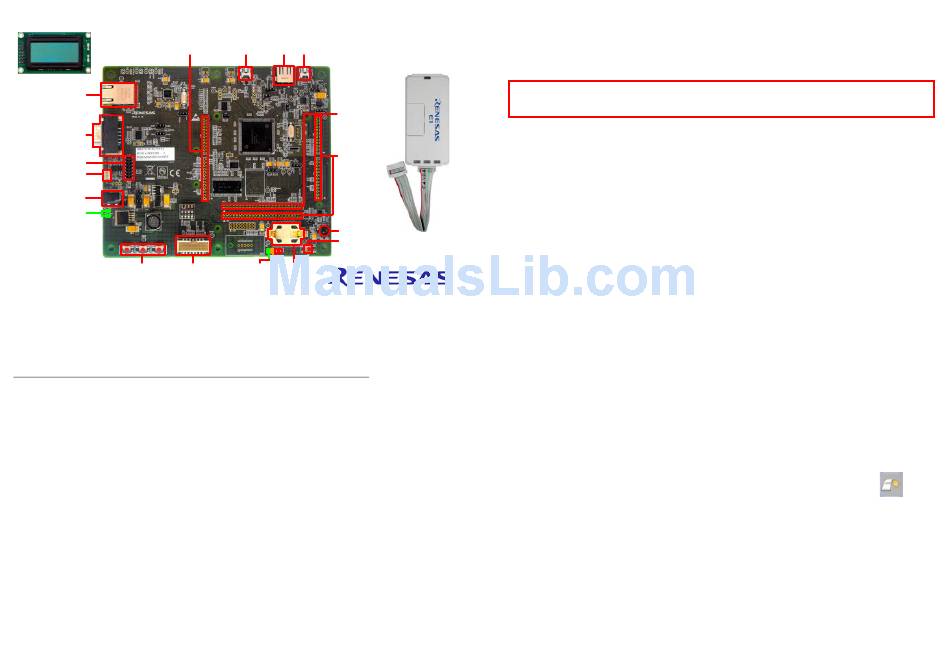

Renesas Starter Kit+
for RX63N-256KB
USB Connectors
Function Host Function
E1 Debugger
TFT
Connector
Application
Interfaces
Analogue Adjust
Reset Switch
User LEDs Battery
Holder
2
studio DVD.
2. Connection
4. Fit the LCD module to the connector marked 'LCD' on the RSK+. Ensure all the pins of the connector are
correctly inserted in the socket.
5. Connect the supplied centre-positive 12V power supply to the PWR connector, and apply power. (See the
RSK+RX63N-256K User Manual for power supply options and board settings).
Ensure that J8 and J9, located near the power connector, are open to configure the RSK+ to use
the supplied 12V power supply. Failure to do so could result in damage to the RSK+.
6. Connect the E1 debugger module to the connector marked 'E1' on the RSK+ using the ribbon cable.
7. Connect the E1 debugger module to a spare USB port of your PC. The green 'ACT' LED on the E1 debugger
will flash.
8. Please follow the steps below to install the drivers. Note that, administrator privileges will be required.
Windows™ 7 / Vista
"Device driver software installed successfully" pop-
up will appear in the Windows™ toolbar and
installation will complete.
9. The green 'ACT' LED on the E1 debugger will illuminate constantly.
3. Importing Sample Code into e² studio
e studio integrates various tools such as compiler, assembler, debugger and editor into a common graphical user
2
interface.
10. Start e studio from the start menu:
2
Start > All Programs > Renesas Electronics e2 studio 3.0 > Renesas e2 studio
11. In the 'Select a workspace' folder that appears, browse a suitable location and folder name to save your new
workspace to. Click OK to continue.
12. In the 'Toolchain Registry' dialog select Renesas Toolchains and ensure that 'RXC v2.01.00' is selected.
Click 'Register'. A dialog will appear "Selected Toolchains were successfully integrated with e2 studio". Click
'OK'.
13. In the 'Code Generator Registration' dialog click 'OK'.
14. A 'Code Generator COM component register' dialog will pop-up with the text "Please restart e2 studio to use
Code Generator". Click 'OK'.
15. In the 'Restart e2 studio' dialog click 'OK'. e
Generator COM component.
16. In the e studio welcome screen, click the 'Go to workbench' arrow icon, on the far right.
2
17. Once e studio is restarted the 'Select a workspace' window appears again. Click 'OK'.
2
18. Right click in the project explorer window, and select 'Import'.
19. In the import source type, select General > Existing Projects into Workspace, and click 'Next'.
20. Click the 'Browse' button, and locate the following directory 'C:\Renesas\workspace\RSK\RSK+RX63N-256K'
21. Ensure the 'Copy projects into workspace' option is ticked, then click 'Finish'.
Windows™ 8
An icon will appear in the Windows™ toolbar and
installation will complete.
studio will be restarted due to first-time registration of the Code
2
