Life Fitness FSFLY Owner's Manual

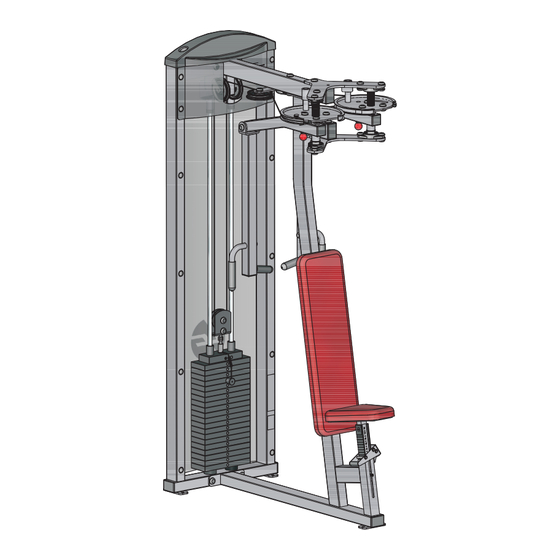

Fly / rear deltoid
Hide thumbs Also See for FSFLY:
Table of Contents

Advertisement

Quick Links

Fly / Rear Deltoid
Owners Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FSFLY and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Life Fitness FSFLY

Summary of Contents for Life Fitness FSFLY

  • Page 1 Fly / Rear Deltoid Owners Manual...

  • Page 2: Tools Required

    Fly / Rear Deltoid 1. Assembly Instructions Item Description Part Number Item Description Part Number Front Upright AAP04-0746 (WHT)(PLT) Weight Stack Pin P11-0048 Tower AP04-0745 (WHT)(PLT) Center Pulley Bracket P02-0892 3/8 x 92mm Hex Bolt DA1C03809216NU 4 1/2” Pulley P06-0035 3/8 SAE Washer DC120010510U Pulley Cover...
  • Page 4 Fly / Rear Deltoid 1. Assembly Instructions LOOSELY assemble FRONT UPRIGHT (1) to the TOWER (2) using two 3/8 X 92mm BOLTS (3), four 3/8" SAE WASHERS (4), four 3/8" RH WASHERS (5), two 3/8" LOW HT LOCK NUTS (6) and four RH CAPS (7) as shown. LOOSELY assemble the TOP BOOM (8) to the TOWER (2) using two 3/8 X 68mm BOLTS (9), four 3/8"...
  • Page 5 Insert one PIVOT ARM (12) over the LOWER PIVOT SHAFT (A) of the RIGHT CAM (13) as shown. Slide an ACCORIDIAN SLEEVE (14) over the UPPER PIVOT SHAFT on the RIGHT CAM as shown. Slide two PILLOW BLOCKS (15) over the UPPER and LOWER PIVOT SHAFTS on the RIGHT CAM.

  • Page 6: Weight Stack Assembly

    Fly / Rear Deltoid 1. Assembly Instructions WEIGHT STACK ASSEMBLY: Insert the two GUIDE RODS (20) into the base of the TOWER (2) as shown. Slide two WEIGHT STACK CUSHIONS (21) down over the GUIDE RODS. Lubricate the GUIDE RODS with a slicon or teflon spray that is available at most hardware stores.

  • Page 7: Cable Routing

    11. PULLEY ASSEMBLY: LOOSELY assemble two 4-1/2" PULLEYS (29) and two PULLEY COVERS (30) to the TOP BOOM (8) using two 3/8 X 44mm BOLTS (31), four 3/8" SAE WASHERS (4), four 3/8" RH WASHERS (5), two 3/8" LOW HT LOCK NUTS (6) and four RH CAPS (7) as shown.

  • Page 8: Shroud Assembly

    Fly / Rear Deltoid 1. Assembly Instructions 15. SECURELY assemble the BACK PAD (37) to the FRONT UPRIGHT (1) using two 3/8 X 102mm BOLTS (10), two 3/8" SAE WASHERS (4) two 3/8" RH WASHERS (5) and two RH CAPS (7) as shown. 16.
  • Page 9 Fly / Rear Deltoid 2. Safety & Warranty It is the sole responsibility of the purchaser of LIFE FITNESS products to instruct all individuals, whether they are the end user or supervising personnel on proper usage of the equipment. It is recommended that all users of LIFE FITNESS exercise equipment be informed of the following information prior to its use.
  • Page 10 WHO PAYS TRANSPORTATION & INSURANCE FOR SERVICE If the Product or any covered part must be returned to a service facility for repairs, We, Life Fitness, will pay all transportation and insurance charges for the first year. You are responsible for transportation and insurance charges during the second and third years (if applicable).

  • Page 11: Exclusive Warranty

    EXCLUSIVE WARRANTY THIS LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF ANY KIND EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND ALL OTHER OBLIGATIONS OR LIABILITIES ON OUR PART.

  • Page 12: General Specifications

    Visual placard provides illustration for proper use. 5. Equipment Anchoring All machines have holes in the feet, which allow for easy anchoring to the floor. Life Fitness recommends that all machines be anchored to the floor to minimize the possibility that they will be tipped.
  • Page 13 Fly / Rear Deltoid 4. Exercise Start Finish Rear Deltoid Start Finish...

  • Page 14: Maintenance

    Fly / Rear Deltoid 5. Maintenance CLEAN Upholstery with a mild soap and water. Hand grips with mild soap and water. INSPECT Hardware should be checked for looseness. Tighten as required using metric tools. Frames should be inspected for wear or damage. All paint chips should be filled immediately with touch-up paint. Handgrips should be checked for wear or damage.
  • Page 15 2005 Life Fitness, a division of Brunswick Corporation. All rights reserved. © Life Fitnessis a registered trademark of Brunswick Corporation. FSFLY 9.14.05 7887801 RevB...
