Page 1: Parts List

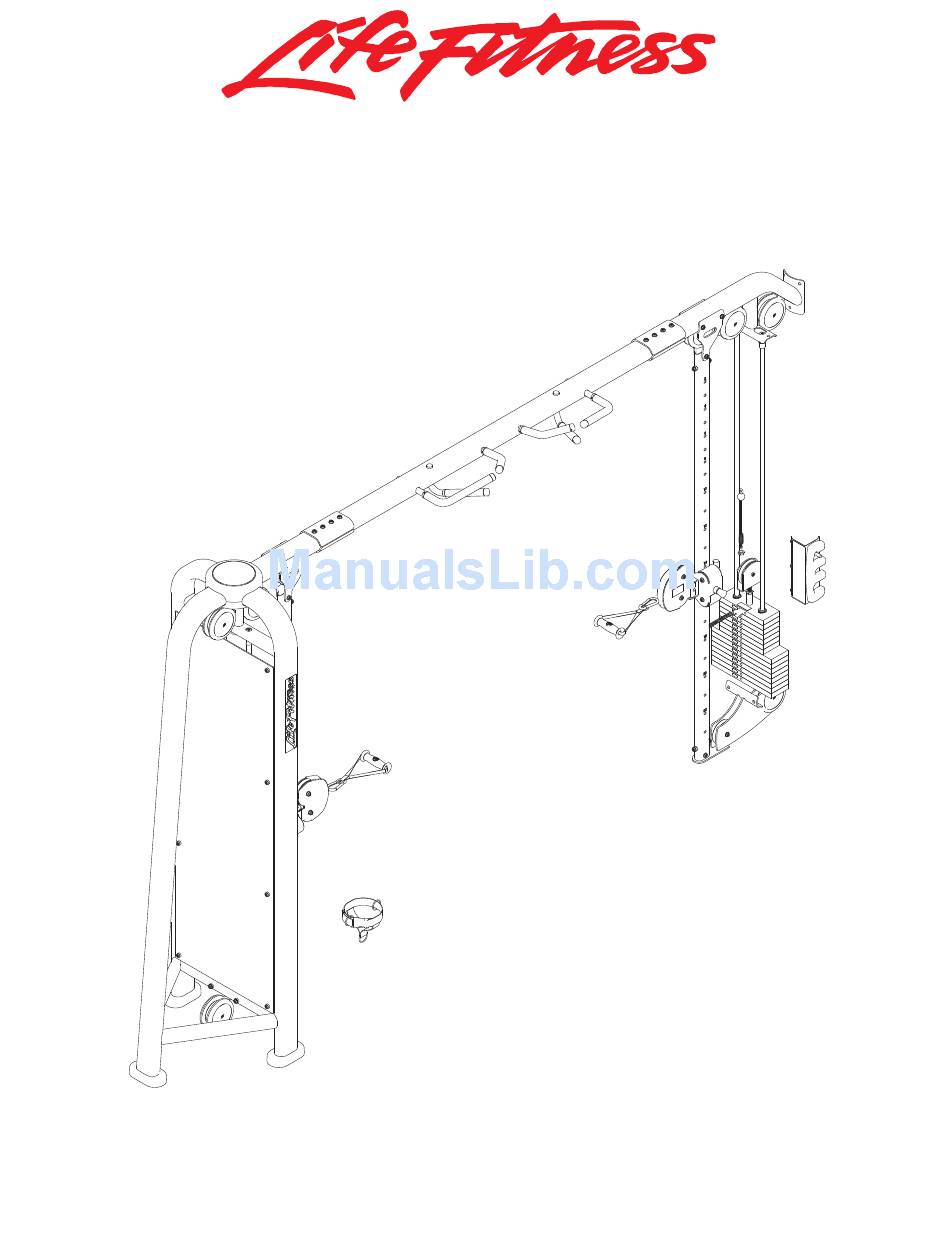

CABLE MOTION SERIES MJACO MULTI JUNGLE ADJUSTABLE CROSSOVER Customer Support Services PARTS LIST Page 1... -
Page 2: Table Of Contents
MJACO MULTI JUNGLE ADJUSTABLE CROSSOVER Contents ________________________________________ MJCORE ASSEMBLY COMPONENTS ASSEMBLY COMPONENTS ASSEMBLY LEGEND MJ X BEAM ASSEMBLY CM/MJACO TOWER ASSEMBLY CM/MJACO TOWER ASSEMBLY LEGEND MJACO/AXO BOOM ASSEMBLY MJAP BASE SUPPORT ASSEMBLY CM/MJ ADJ PULLEY CARRIAGE ASSEMBLY CM/MJ ADJ PULLEY COLUMN ASSEMBLY 190lb. -
Page 3: Mjcore Assembly
MJACO MULTI JUNGLE ADJUSTABLE CROSSOVER MJCORE ASSEMBLY ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7628601 WLDMT, MJCORE 7334001 FOOT, 2.50 X 4.49 FLOV 7340201 COVER, FOOT - STRAIGHT 7640401 COVER, BOTTOM CAP 3236601 WASHER, 3/8 SAE SS 3251200 SCREW, M10 X1.5 X 25MM UNS HEX CS ST ZN 3236801 NUT, M10 HEX NYLOCK SS ITEM NO. - Page 4 MJACO MULTI JUNGLE ADJUSTABLE CROSSOVER COMPONENET ASSEMBLY ________________________________________ SEE PAGE 5 FOR LEGEND Page 4...
-
Page 5: Components Assembly
MJACO MULTI JUNGLE ADJUSTABLE CROSSOVER COMPONENT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION MJCORE-ASSY ASSY, COMPONENTS MJCORE 7647501 ASSY, 190LB WEIGHT STACK 7352101 CUSHION, WEIGHT STACK 7328618 GRUIDE ROD, .75 OD SOLID 71.63 3232421 RING, BRE .940, 5100-100 ST PP B... -
Page 6: Mj X Beam Assembly
MJACO MULTI JUNGLE ADJUSTABLE CROSSOVER MJ X BEAM ASSEMBLY- 7640601 ________________________________________ ITEM NO. QTY. LENGTH 7" PART NO. DESCRIPTION 7632701 WLDMT, MJ X-BEAM 7662801 RING, GRIP 1.25 OD 7662901 CAP, GRIP 1.25 OD 3235801 GRIP, SHADOW GREY OPEN END 3247701 M4 X .7 HXS NO CUP ST BO... - Page 7 MJACO MULTI JUNGLE ADJUSTABLE CROSSOVER MJACO TOWER ASSEMBLY-7641501 ________________________________________ SEE PAGE 8 FOR LEGEND Page 7...
- Page 8 MJACO MULTI JUNGLE ADJUSTABLE CROSSOVER MJACO TOWER ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7639201 WLDMNT, MJACO TOWER 7645101 ASSY, MJAP, BASE SPRT 7780301 BRKT, MJAP, ADJ TUBE TOP 8264101 TUBE, CM/MJ ADJ COLUMN 7333801 CAP, SMALL FLOV- END 7645201 ASSY, CM/MJ, ADJ PULLEY CARRIAGE 3236220 SCREW, M10 X1.5 130MM...
-
Page 9: Mjaco/Axo Boom Assembly
MJACO MULTI JUNGLE ADJUSTABLE CROSSOVER MJACO/AXO BOOM ASSEMBLY- 7641801 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7638301 WLDMNT, MJACO/AXO BOOM 3237801 PULLEY, 4.5" OD 3236207 SCREW, M10 X1.5 50MM 7335401 NUT, M10 X 1.5 SOCKET HEAD 7630101 RETAINER, CM/MJ, PULLEY... -
Page 10: Mjap Base Support Assembly
MJACO MULTI JUNGLE ADJUSTABLE CROSSOVER MJAP BASE SUPPORT ASSEMBLY- 7645101 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7634801 WLDMT, MJ ADJ PULLEY BASE 3237801 PULLEY, 4.5" OD 7630101 RETAINER, CM/MJ, PULLEY 3236206 SCREW, M10 X1.5 45MM 7335401 NUT, M10 X 1.5 SOCKET HEAD 3236208 SCREW, M10 X1.5 55MM... -
Page 11: Cm/Mj Adj Pulley Carriage Assembly
MJACO MULTI JUNGLE ADJUSTABLE CROSSOVER CM/MJ ADJ PULLEY CARRIAGE ASSEMBLY- 7645201 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7637501 WLDMT, MJ ADJ PULLEY CARRIAGE 7637901 ASSY, ROLLER-CONCAVE 7633301 WLDMT, CM/MJ, SWIVEL PULLEY 7631801 BRKT, CM/MJ, CARRIAGE SHROUD 7645401 SHAFT, CM/MJ, 6203 BRNG 3239101 SCREW, M5X10 PHL PAN TT ST 3237801 PULLEY, 4.5"... -
Page 12: Cm/Mj Adj Pulley Column Assembly
MJACO MULTI JUNGLE ADJUSTABLE CROSSOVER CM/MJ ADJ PULLEY COLUMN ASSEMBLY- 7708401 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 8264101 TUBE, CM/MJ ADJ COLUMN 7645501 SPACER, CM/MJ, SM FLOV CONCAVE 7630101 RETAINER, CM/MJ, PULLEY 3236215 SCREW, M10 X1.5 90MM 7335401 NUT, M10 X 1.5 SOCKET HEAD... -
Page 13: Lb. Weight Stack Assembly
MJACO MULTI JUNGLE ADJUSTABLE CROSSOVER 190LB. WEIGHT STACK ASSEMBLY- 7647501 ________________________________________ QTY. PART NO. DESCRIPTION 8069101 LABEL, WGHT STK, 45.5 KG 8068901 LABEL, WGHT STK, 95 LBS ITEM NO. QTY. PART NO. DESCRIPTION 7353901 HEADPLATE, WT. STACK 7352600 BAYONET, 14 PLATE... -
Page 14: Mjaco Cable Routing Guide
MJACO MULTI JUNGLE ADJUSTABLE CROSSOVER MJACO CABLE ROUTING GUIDE (cross-section) ________________________________________ MJACO CORE MJ CORE Page 14...
