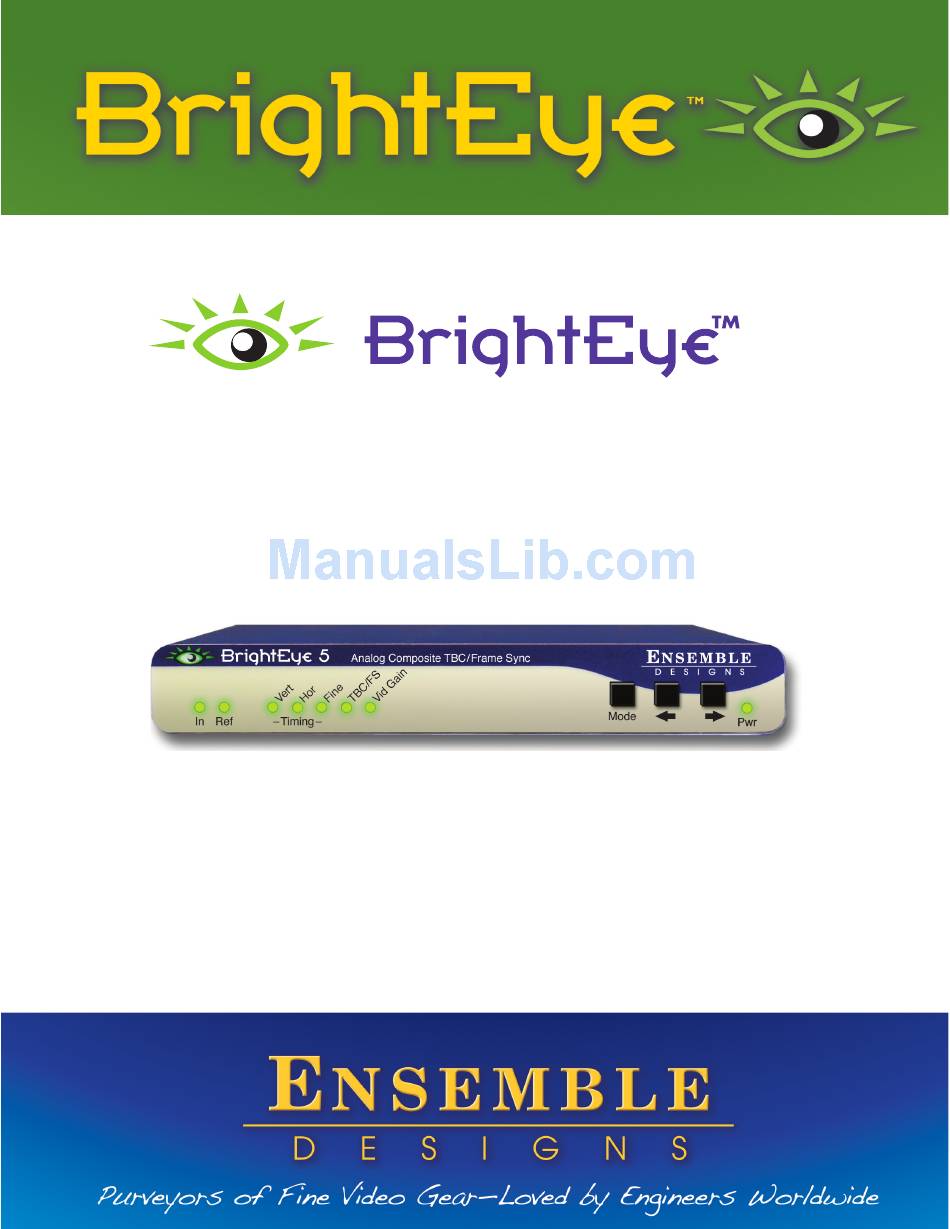

Page 1: User Guide
Analog Composite TBC and Frame Sync User Guide Revision 5.1 SW v1.2.2... - Page 2 As the company has grown, more former TV station engineers have HD up/down/cross conversion, scan conversion and joined Ensemble Designs and this wealth of practical test signal generators with 3G, HD, SD, ASI, HDMI video, experience fuels the company’s innovation. Everyone at the audio and optical choices.
-
Page 3: Table Of Contents
Analog Composite TBC and Frame Sync User Guide Contents Product Overview Capabilities Overview for BrightEye 5 Free Software Upgrades Forever Functional Description and Block Diagram Applications Time Base Correction of Noisy Microwave Signal Rear Connectors Power Connection USB Connector Input and Output BNCs... -
Page 4: Product Overview

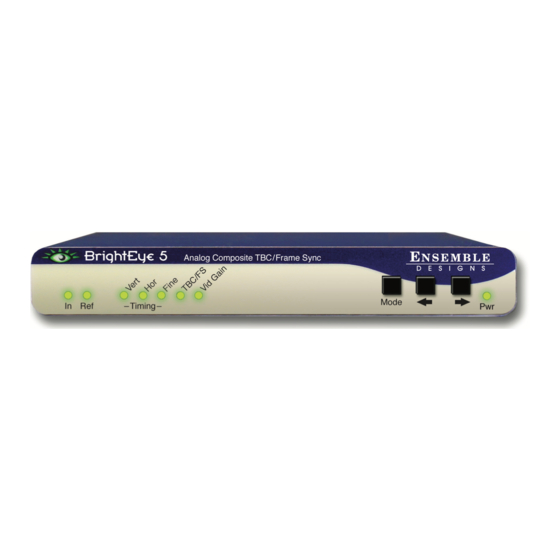

BrightEye 5 auto detects the video standard of the input (NTSC or PAL), or can be set manually to either NTSC or PAL if preferred. -
Page 5: Capabilities Overview For Brighteye
90 and 230 volts, at 50 or 60 Hertz. BrightEye 5 uses a standard IEC line cord and can be used anywhere in the world. It is normal for the converter to be quite warm to the touch when operating. -
Page 6: Applications
Time Base Correction of Noisy Microwave Signal One useful application for the BrightEye 5 is time base correction of an excessively noisy analog video signal from a microwave receiver. This application utilizes the full functionality of BrightEye 5 by time base correcting a noisy analog video microwave input signal and frame synchronizing it to a house reference which is also feeding analog video devices. -
Page 7: Rear Connectors
Analog Composite TBC and Frame Sync User Guide Rear Connectors All connections to the BrightEye 5 are made on the rear of the unit. Refer to the illustration below for a snapshot reference of the rear connectors. A more detailed explanation of the rear connectors follows. -
Page 8: Input And Output Bncs
Composite Out 1 and 2 – Two timed composite outputs are provided for feeding analog destinations. The output standard follows the input standard and must be the same standard as the reference, if one is used. www.ensembledesigns.com BrightEye 5 - Page 8... -
Page 9: Operation
Analog Composite TBC and Frame Sync User Guide Operation Control and operation of the BrightEye 5 is performed from the front panel or remotely from a networked PC with the BrightEye Mac/PC Control application software. Note: Some control settings are only available with BrightEye PC or Mac. These parameters cannot be monitored or controlled from the front panel. -
Page 10: Adjusting Parameters From The Front Panel
Fine – Adjust the timing in subpixels with reference to the Ref In. • TBC/Frame Sync – This control enables the Frame Sync genlock function and the timing controls when an external reference is present on the Ref In BNC. www.ensembledesigns.com BrightEye 5 - Page 10... - Page 11 The Vid Gain indicator will illuminate red whenever the control is adjusted either higher or lower than the nominal setting. The gain can be reset to nominal (green) by pressing both arrows simultaneously. www.ensembledesigns.com BrightEye 5 - Page 11...
-
Page 12: Using The Brighteye Control Application
Analog Setup – Use this control to turn Analog Setup On or Off. Set to On if the input signals being used with the BrightEye 5 have Setup present. The On setting will cause Setup to be removed from the input signal in order for the digital processing to have the appropriate black reference level. -
Page 13: Proc Menu
Pedestal – Adjusts the pedestal in IRE. Range is -5 to 5 IRE, default is 0 IRE. • Hue – Adjusts the hue of the signal in degrees. Range is -180° to 180°, default is 0°. BrightEye 5 Proc Menu www.ensembledesigns.com BrightEye 5 - Page 13... -
Page 14: Timing Menu
Range is -100 - 100 subpixels, default is 0 subpixels. • Frame Sync – Set the Frame Sync function On to genlock to the external reference input to the module or Off for no Frame Sync. BrightEye 5 Timing Menu www.ensembledesigns.com BrightEye 5 - Page 14... -
Page 15: Output Menu
Analog Composite TBC and Frame Sync User Guide Output Menu Use the Output menu to set the following output conditions for the BrightEye 5: • V Blanking – Set the vertical blanking to Narrow (NTSC: lines 1-9, PAL: lines 1-6) or Wide (NTSC: lines 1-20, PAL: lines 1-22). -
Page 16: Config Menu
• Panel Disable – Set the Panel Disable to On if you want to disable the front panel controls. Set to Off to enable standard control from the front panel. BrightEye 5 Config Menu www.ensembledesigns.com BrightEye 5 - Page 16... -
Page 17: Software Updating
This module is covered by a five-year limited warranty. If you require service (under warranty or not), please contact Ensemble Designs and ask for customer service before you return the unit. This will allow the service technician an opportunity to provide any other suggestions for identifying the problem and to recommend possible solutions. -
Page 18: Specifications For Brighteye 5
5.625” W x 1.7” H x 5.5” D (143 mm x 20 mm x 140 mm) including connectors Weight 14 oz Power 12 volts, 4 watts (100-230 VAC modular power supply not included) Temperature Range 0 to 40° C ambient Relative Humidity 0 to 95° non-condensing www.ensembledesigns.com BrightEye 5 - Page 18... -
Page 19: Glossary
(zero). A byte, containing 8 bits, can represent 256 different states. The binary number 11010111, for example, has the value of 215 in our base 10 numbering system. When a value is carried digitally, each www.ensembledesigns.com BrightEye 5 - Page 19... - Page 20 This trick works because the subcarrier is set at a high enough frequency to leave spectrum for the luminance information. But it is not a seamless matter to pull www.ensembledesigns.com BrightEye 5 - Page 20...
- Page 21 Embedded Audio Digital Audio can be carried along in the same bitstream as an SDI or HD-SDI signal by taking advantage of the gaps in the transmission which correspond to the horizontal and vertical intervals www.ensembledesigns.com BrightEye 5 - Page 21...
- Page 22 HDMI is a bit serial interface that carries the video content in digital component form over multiple twisted-pairs. HDMI is closely related to the DVI interface for desktop computers and their displays. www.ensembledesigns.com BrightEye 5 - Page 22...
- Page 23 The “black & white” content of the image. Human vision had more acuity in luminance, so television systems generally devote more bandwidth to the luminance content. In component systems, the luminance is referred to as Y. www.ensembledesigns.com BrightEye 5 - Page 23...
- Page 24 And secondly, and most importantly, an optical interface can carry a signal for many kilometers or miles without any degradation or loss in the recovered signal. Copper is barely useful at distances of just 1000 feet. www.ensembledesigns.com BrightEye 5 - Page 24...
- Page 25 4 frames (8 fields) which is also known as the Bruch Blanking sequence. In NTSC, the repeat is every 2 frames (4 fields). This creates enormous headaches in editing systems and the system timing of analog composite facilities. www.ensembledesigns.com BrightEye 5 - Page 25...
- Page 26 This operation is closely associated with the actual digitization of the analog signal because the varying position of the sync timing must be mimicked by the sampling function of the analog to digital converter. A second timing system, genlocked to a stable reference, www.ensembledesigns.com BrightEye 5 - Page 26...
- Page 27 Video Graphics Array. Traditional 15-pin, analog interface between a PC and monitor. www.ensembledesigns.com BrightEye 5 - Page 27...
- Page 28 Cr (R-Y) and Cb (B-Y). Y/Pr/Pb In analog component video, the image is carried in three components. The luminance is Y, the R-Y color difference signal is Pr, and the B-Y color difference signal is Pb. www.ensembledesigns.com BrightEye 5 - Page 28...
