User Guide N S E M B L E Revision 2.1 SW v1.0.7 This user guide provides detailed information for using the BrightEye 76 HD/SD Analog to Digital Video Converter and Analog Audio Embedder with Optical Output. The information is organized into the following sections: •...
SDI output on the rear of the unit. BrightEye 76 is powered by a 12 volt DC universal power supply. This power supply can accept an input voltage between 90 and 230 volts, at 50 or 60 Hertz.
Page 4
The example below shows a three-camera, live remote setup. Full bandwidth analog video from an HD camera is fed to a BrightEye 76 and converted to HD-SDI digital video. The signal is time base corrected and frame synchronized to the reference input.
BrightEye 76 REAR CONNECTORS All connections to the BrightEye 76 converter are made on the rear of the unit. Refer to the illustration below. BrightEye 76 Rear Connectors Power Connection Connect a modular power supply to the 12 volt DC power input connection on the far left.
Page 6
BrightEye 76 HD/SD Analog to Digital Converter With Optical Output Unbalanced Audio to a RCA Phono Connection – to connect the BrightEye 76 audio input to a consumer audio connector such as an RCA phono jack, connect the pins as follows: •...

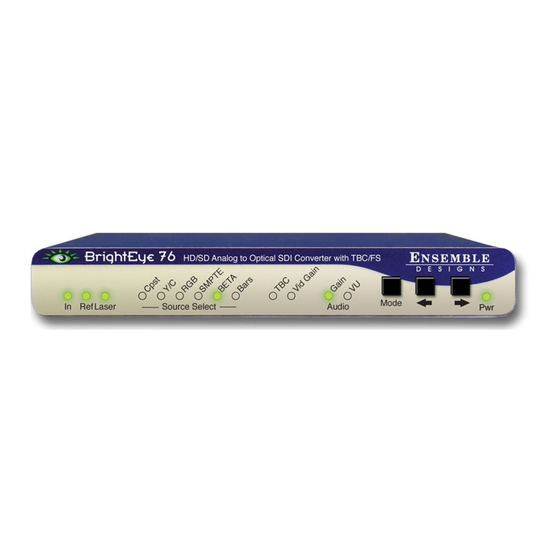

BrightEye 76 OPERATION Control and operation of the BrightEye 76 unit is performed from the front panel or remotely from a networked PC with the BrightEye PC or Mac Control application. Some control settings are only available with BrightEye PC or Mac. These parameters NOTE cannot be monitored or controlled from the front panel.
BrightEye 76 HD/SD Analog to Digital Converter With Optical Output Gain Illuminates green when gain is set to its nominal or unity setting, or red when set to other than unity. Illuminates green when gain is set to unity, red when set to other than unity, or yellow when gain exceeds 0 VU (-20dBFS).
Page 9
-20 VU, the indicator does not illuminate. Gain This indicator Illuminates green when output gain is set to its nominal or unity value. It illuminates red when gain is set to other than unity. BrightEye 76 - Page 9...
USING THE BRIGHTEYE CONTROL APPLICATION The BrightEye PC and BrightEye Mac applications included on CD-ROM are designed to allow you to configure and control the BrightEye 76 from a personal computer. Installation and instructions for using this software application are given in the PDF manual on disk.
Page 11
To set a value for any of these parameters, adjust the slider, click the right or left Arrow button, or type a value into the appropriate field. To set a parameter to its nominal setting, click the Default button. BrightEye 76 - Page 11...
Page 12
BrightEye 76 HD/SD Analog to Digital Converter With Optical Output Mixer Menu Use the Mixer Menu to adjust the parameters of the embedded audio input signal. • Output 1 – provides peak/VU status for output channel 1. The Peak/VU indicator illuminates red when the audio level exceeds the headroom level set with the Peak Indicator control in the Config menu.
Page 13
Use the following control to enable the Frame Sync function: • Frame Sync – set the Frame Sync function to On to genlock to the reference input to the module, or to Off for no Frame Sync. BrightEye 76 - Page 13...
Page 14
BrightEye 76 HD/SD Analog to Digital Converter With Optical Output Config Menu Use the Config menu to set the following output conditions for the output signal: • Signal Mute – select the condition for muting the output signal to No Muting, Mute On Noise, or Freeze on Noise.
Page 15
• When input is SMPTE, adjust CAV Y/C Trim, CAV Cr/R Trim and CAV Cb/B Trim from -100 to 100. • When input is BETA, adjust CAV Y/C Trim, CAV Cr/R Trim and CAV Cb/B Trim from -100 to 100. BrightEye 76 - Page 15...
WARRANTY AND FACTORY SERVICE Warranty Ensemble Designs, Inc. warrants this product to be free from defect in material and workmanship for a period of 5 years from the date of delivery. During this 5 year warranty period, Ensemble Designs, Inc. will repair any defective units at Ensemble’s expense if the unit should be determined to be defective after con-...
> 1% Signal to Noise > 64 dB weighted Freq Response ± 0.1 dB, 0 to 5.5 MHz in SD ± 0.1 dB, 0 to 12 MHz; ± 0.5 dB, 12 to 30 MHz in HD BrightEye 76 - Page 17...
Page 18
BrightEye 76 HD/SD Analog to Digital Converter With Optical Output Embedded Output (In Optical Output) Group Assign One of four groups Channels Bit Depth 24 Bit HD Standards Support 1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60 Hz 720p (SMPTE 296M -1,2,3) 50, 59.94 or 60 Hz 1080p (SMPTE 274M -9,10,11) 23.98, 24, 25 Hz...
BrightEye Blank Panel (single high, for empty slots in Rack Mount) BEBPD BrightEye Blank Panel (double high, for empty slots in Rack Mount) 5082-I 1 Port AES 110 Ohm Adapter BEAC Analog Audio Breakout Cable with Pigtail End PHX15 Breakout Adapter with Phoenix Terminals BrightEye 76 - Page 19...
Page 20
BrightEye 76 HD/SD Analog to Digital Converter With Optical Output GLOSSARY This is a brief glossary of commonly used terms associated with this product. AES/EBU The digital audio standard defined as a joint effort of the Audio Engineering Society and the European Broadcast Union. AES/EBU or AES3 describes a serial bitstream that carries two audio channels, thus an AES stream is a stereo pair.
Page 21
Thus, dBm refers to power relative to 1 milliwatt, and dBu refers to voltage relative to .775V RMS. The original unit of measure was the Bel (10 times bigger), named after Alexander Graham Bell. BrightEye 76 - Page 21...
Page 22
BrightEye 76 HD/SD Analog to Digital Converter With Optical Output dBFS In Digital Audio systems, the largest numerical value that can be represented is referred to as Full Scale. No values or audio levels greater than FS can be repro- duced because they would be clipped.
Page 23
The “black & white” content of the image. Human vision had more acuity in luminance, so television systems generally devote more bandwidth to the luminance content. In component systems, the luminance is referred to as Y. BrightEye 76 - Page 23...
Page 24
BrightEye 76 HD/SD Analog to Digital Converter With Optical Output Multimode Multimode fibers have a larger diameter core (either 50 or 62.5 microns), and a correspondingly larger aperture. It is much easier to couple light energy into a multimode fiber, but internal reflections will cause multiple “modes” of the signal to propagate down the fiber.
Page 25
SDI system can carry a signal for up to 20 kilometers. Singlemode fibers require particular care in their installation due to the extremely small optical aperture that they present at splice and connection points. See also Multimode. BrightEye 76 - Page 25...
Page 26
BrightEye 76 HD/SD Analog to Digital Converter With Optical Output A Time Base Corrector is a system to reduce the Time Base Error in a signal to acceptable levels. It accomplishes this by using a FIFO (First In, First Out) memory.
