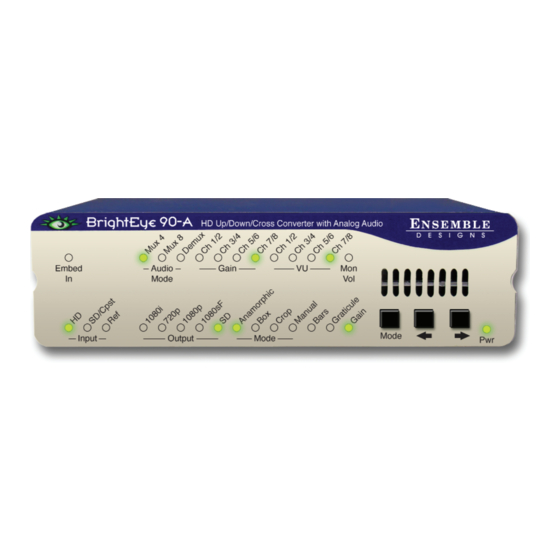

BrightEye 90-A
HD Up/Down/Cross Converter
and ARC with Analog Audio
This user guide provides detailed information for using the BrightEye 90-A
HD up/down/cross converter and aspect ratio converter (ARC) with analog audio
output.
The information is organized into the following sections:
• Product Overview
• Functional Description
• Applications
• Rear Connectors
• Operation
• Front Panel Controls and Indicators
• Using The BrightEye Control Application
• Warranty and Factory Service
• Specifications
• Glossary

User Guide

BrightEye 90-A - Page 1
TM
Revision 2.4 SW v1.2.3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BrightEye 90-A and is the answer not in the manual?

Questions and answers

Related Manuals for Ensemble Designs BrightEye 90-A

Summary of Contents for Ensemble Designs BrightEye 90-A

  • Page 1: User Guide

    ARC with Analog Audio User Guide Revision 2.4 SW v1.2.3 This user guide provides detailed information for using the BrightEye 90-A HD up/down/cross converter and aspect ratio converter (ARC) with analog audio output. The information is organized into the following sections: •...

  • Page 2: Product Overview

    As shown in the diagram that follows, when a high definition or standard definition serial digital video input is fed to the BrightEye 90-A, the signal enters the serial digital receiver and is frame synchronized to the reference input. Audio is disembedded and passed around the video processing.
  • Page 3 BNC. BrightEye 90-A is powered by a 12 volt DC universal power supply. This power supply can accept an input voltage between 100 and 230 volts, at 50 or 60 Hertz.
  • Page 4 BrightEye 90-A HD Up/Down/Cross Converter and ARC with Analog Audio BrightEye 90-A - Page 4...
  • Page 5 5) The final output signal is built from this intermediate progressive workspace, which is the most uncompromised version of the image possible. It provides the best possible starting point from which to create the final output signal. BrightEye 90-A - Page 5...
  • Page 6 The BrightEye 90-A can upconvert SD video from many different source types. As shown in the example below, the SD ingest signal from a satellite is fed to a BrightEye 90-A where it is upconverted to feed an HD Master Control Switcher. The other output can be sent to other HD destinations.
  • Page 7 Destination House Reference HD Downconversion 2 As shown in the example below, the BrightEye 90-A can be used to downconvert material originated in HD. The BrightEye 90-A can output signals to feed a server, video monitor and HDMI display simultaneously.
  • Page 8 SD input signal to a different aspect ratio. In the example below, the input from an SD camera with 16:9 lenses can feed an anamorphic signal to the BrightEye 90-A where the aspect ratio can be corrected for input to an SD switcher that requires 16:9 Letterbox.
  • Page 9 BrightEye 90-A Remote Truck/OB Van As shown below, the BrightEye 90-A accepts an SD SDI or HD SDI signal. The user sets the unit to the desired output type. The BrightEye 90-A auto-senses the input format and determines if it should up, down, or cross convert the signal, based on the user’s output format selection.

  • Page 10: Rear Connectors

    BrightEye 90-A HD Up/Down/Cross Converter and ARC with Analog Audio REAR CONNECTORS All connections to the BrightEye 90-A are made on the rear of the unit. Refer to the photo below. BrightEye 90-A Rear Connectors Power Connection Connect a modular power supply to the 12 volt DC power input connection on the far left of the unit.

  • Page 11: Operation

    Wires can be inserted into the small round holes. Depress the orange tab to release them. OPERATION Control and operation of the BrightEye 90-A is performed from the front panel or remotely from a networked PC with the BrightEye PC or BrightEye Mac Control application.
  • Page 12 BrightEye 90-A HD Up/Down/Cross Converter and ARC with Analog Audio Status Indicators The following status indicators are provided on the front panel: Embed In Illuminates green when an embedded audio stream is detected on the HD/SD SDI/Cpst In video input BNC. This applies only to SDI signals.

  • Page 13: Adjusting Parameters From The Front Panel

    The LED of an edited parameter will blink for 15 seconds, after which time its value is NOTE stored in memory. If power is interrupted before this 15 second timeout period has elapsed, the edited state will not be not saved. BrightEye 90-A - Page 13...

  • Page 14: Using The Brighteye Control Application

    USING THE BRIGHTEYE CONTROL APPLICATION The BrightEye PC and BrightEye Mac applications included on CD-ROM are designed to allow you to configure and control the BrightEye 90-A from a personal computer. Installation and instructions for using this software application are given in the PDF manual on disk.
  • Page 15 4:3 and 16:9 (Anamorphic, Letter 16:9, Letter 14:9, Letter 13:9, Pillar, Crop Sides 75%, Crop Sides 84%, Crop Top/Bot, Manual). When Manual is selected, use the Manual menu to set the aspect ratio. BrightEye 90-A - Page 15...
  • Page 16 BrightEye 90-A HD Up/Down/Cross Converter and ARC with Analog Audio Manual • Width – sets the aspect ratio width in percent (range is 30 to 145%, default is 100%). • Height – sets the aspect ratio height in percent (range is 30 to 140%, default is 100%).
  • Page 17 (output a black signal) when the module detects that the video quality is unacceptable. Off allows the video to pass through to the output regardless of video quality. BrightEye 90-A - Page 17...
  • Page 18 BrightEye 90-A HD Up/Down/Cross Converter and ARC with Analog Audio Proc • Gain – adjusts the percentage of overall gain (luminance and chrominance) (range is 0 to 150%, default is 100%). • Chroma – adjusts the percentage of chroma amplitude (range is 0 to 150%, default is 100%).
  • Page 19 HDMI Non-Compat, HDMI Native, HDMI Compatible). Status information comes from the display itself. Some displays may not work with the BrightEye 90-A, depending on the formats that the display supports. For best results, use a display that is HDMI Native.
  • Page 20 BrightEye 90-A HD Up/Down/Cross Converter and ARC with Analog Audio BrightEye 90-A - Page 20...
  • Page 21 • Anlg Ref Level – selects the analog reference level. This pulldown lets you choose between -10 dBu or +4 dBu. • Audio Delay – allows you to set the amount of audio delay from 0 to 1000 mSec. Default is 0 mSec. BrightEye 90-A - Page 21...
  • Page 22 BrightEye 90-A HD Up/Down/Cross Converter and ARC with Analog Audio Aud Input The appearance of this menu will depend on the mode selected and the type of audio used. Multiplexer Mode When the module is set for Mux 8, the Input menu provides the controls shown below: •...
  • Page 23 BrightEye 90-A BrightEye 90-A - Page 23...
  • Page 24 BrightEye 90-A HD Up/Down/Cross Converter and ARC with Analog Audio Mixer A Use the Mixer A and Mixer B menus to control the audio mixing and shuffling of the module. Each output bus assignment will be indicated by a green box.
  • Page 25 Ch 6 will tie the two controls together. Selecting the Tie button in Input Ch 7 or Input Ch 8 will tie the controls for these channels together. Click the Default button to return to the default value. Click the Invert button to invert the phase of the audio content. BrightEye 90-A - Page 25...
  • Page 26 BrightEye 90-A HD Up/Down/Cross Converter and ARC with Analog Audio Audio Out • Mon Assign – choose the audio pair that you want to send to the Audio Monitor headphone jack. Choices are: Chan 1/2, Chan 3/4, Chan 5/6, Chan 7/8, Chan 9/10, Chan 11/12, Chan 13/14, Chan 15/16.

  • Page 27: Warranty And Factory Service

    WARRANTY AND FACTORY SERVICE Warranty Ensemble Designs, Inc. warrants this product to be free from defect in material and workmanship for a period of 5 years from the date of delivery. During this 5 year warranty period, Ensemble Designs, Inc. will repair any defective units at Ensemble’s expense if the unit should be determined to be defective after con-...

  • Page 28: Specifications

    BrightEye 90-A HD Up/Down/Cross Converter and ARC with Analog Audio SPECIFICATIONS Analog Video Input Number Signal Type Analog Composite PAL or NTSC Resolution Digitized at 12 bits Impedance 75 Ω Return Loss >40 dB Input DC +/-1 volt DC Input Hum <100 mV...
  • Page 29 Two of four groups Channels Sixteen passed Bit Depth 24 Bit Monitor Output Number Connector HDMI Type Follows SDI out Audio Monitoring Output Number One (for monitoring a pair of audio channels) Connector 3.5 mm stereo mini jack BrightEye 90-A - Page 29...
  • Page 30 BrightEye 90-A HD Up/Down/Cross Converter and ARC with Analog Audio General Specifications Size 5.625” W x 1.7 “ H x 5.5” D (143 mm x 40 mm x 140 mm) including connectors Weight 1 lb 8 oz Power 12 volts, 15 watts...

  • Page 31: Brighteye Power Supply Information

    BERKMT BrightEye Rack Mount. This holds 6 single high BrightEyes or 3 double high BrightEyes, or a combination. BEBP BrightEye Blank Panel. Single high, for empty slots in Rack Mount. BEAC Analog Audio Breakout Cable. BrightEye 90-A - Page 31...
  • Page 32 BrightEye 90-A HD Up/Down/Cross Converter and ARC with Analog Audio GLOSSARY AES/EBU The digital audio standard defined as a joint effort of the Audio Engineering Society and the European Broadcast Union. AES/EBU or AES3 describes a serial bitstream that carries two audio channels, thus an AES stream is a stereo pair.
  • Page 33 The resultant artifacts of dot crawl (also referred to as chroma crawl) are only the most obvious result. Composite television is the most BrightEye 90-A - Page 33...
  • Page 34 BrightEye 90-A HD Up/Down/Cross Converter and ARC with Analog Audio commonly used format throughout the world, either as PAL or NTSC. It is also referred to as Encoded video. Color Difference Color Difference systems take advantage of the details of human vision. We have more acuity in our black and white vision than we do in color.
  • Page 35 HDMI is a bit serial interface that carries the video content in digital component form over multiple twisted-pairs. HDMI is closely related to the DVI interface for desktop computers and their displays. BrightEye 90-A - Page 35...
  • Page 36 BrightEye 90-A HD Up/Down/Cross Converter and ARC with Analog Audio The International Electrotechnical Commission provides a wide range of worldwide standards. They have provided standardization of the AC power connection to products by means of an IEC line cord. The connection point uses three flat contact blades in a triangular arrangement, set in a rectangular connector.
  • Page 37 And secondly, and most importantly, an optical interface can carry a signal for many kilometers or miles without any degradation or loss in the recovered signal. Copper is barely useful at distances of just 1000 feet. BrightEye 90-A - Page 37...
  • Page 38 BrightEye 90-A HD Up/Down/Cross Converter and ARC with Analog Audio Oversampling A technique to perform digital sampling at a multiple of the required sample rate. This has the advantage of raising the Nyquist Rate (the maximum frequency which can be reproduced by a given sample rate) much higher than the desired passband.
  • Page 39 This allowed it to be recovered in rewind and fast forward when the picture itself could not. Timecode continues to be useful today and is carried in the vertical interval as VITC, and as a digital packet as DVITC. Timecode is the true metadata. BrightEye 90-A - Page 39...
  • Page 40 BrightEye 90-A HD Up/Down/Cross Converter and ARC with Analog Audio Tri-Level Sync For many, many years, television systems used composite black as a genlock reference source. This was a natural evolution from analog systems to digital implementations. With the advent of High Definition television, with even higher data rates and tighter jitter requirements, problems with this legacy genlock signal surfaced.
  • Page 41 Cr (R-Y) and Cb (B-Y). Y/Pr/Pb In analog component video, the image is carried in three components. The luminance is Y, the R-Y color difference signal is Pr, and the B-Y color difference signal is Pb. BrightEye 90-A - Page 41...
