HD Cross Converter
This user guide provides detailed information for using the BrightEye 93
HD cross converter. The information is organized into the following sections:
• Product Overview
• Functional Description
• Applications
• Rear Connectors
• Operation
• Front Panel Controls and Indicators
• Using the BrightEye Control Application
• Warranty and Factory Service
• Specifications
• Glossary
BrightEye 93
User Guide
BrightEye 93 - Page 1
TM
Revision 2.4 SW v1.2.3
Advertisement
Table of Contents
Related Manuals for Ensemble Designs BrightEye 93
Summary of Contents for Ensemble Designs BrightEye 93
-
Page 1: User Guide
BrightEye 93 HD Cross Converter User Guide Revision 2.4 SW v1.2.3 This user guide provides detailed information for using the BrightEye 93 HD cross converter. The information is organized into the following sections: • Product Overview • Functional Description • Applications •... -
Page 2: Product Overview
As shown in the following diagrams, when a high definition serial digital video input is fed to the BrightEye 93, the signal enters the serial digital receiver and is frame synchronized to the reference input. Audio is disembedded and passed around the video processing. - Page 3 BrightEye 93 BrightEye 93 - Page 3...
- Page 4 BrightEye 93 HD Cross Converter PERFORMANCE ADVANTAGES OF THE BRIGHTEYE SERIES When images are converted between different formats, color spaces, and resolution geometries, the need for accuracy and fidelity are extremely important. Whether upconverting from standard definition to HD formats, converting between different HD formats, or downconverting to SD, extra care must be paid to every aspect of the signal and the content of the images.
- Page 5 The BrightEye 93 can perform cross conversion between two different types of HD signals. As shown here, the 1080i input from an HD network feed is sent to the BrightEye 93 where the format is converted to 720p as required for input to an HD router.
-
Page 6: Rear Connectors

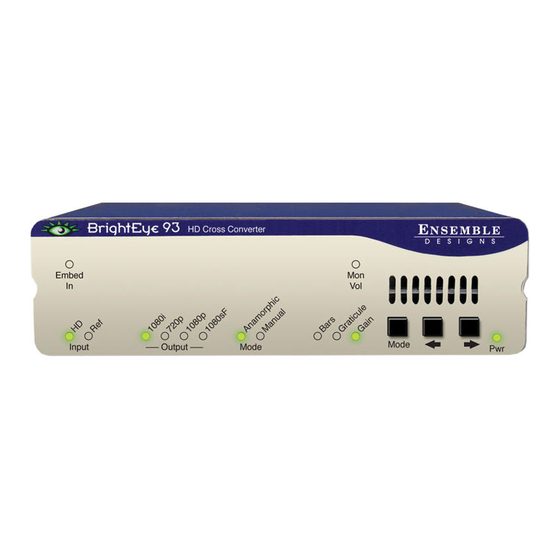

BrightEye 93 HD Cross Converter REAR CONNECTORS All connections to the BrightEye 93 are made on the rear of the unit. Refer to the photo below. BrightEye 93 Rear Connectors Power Connection Connect a modular power supply to the 12 volt DC power input connection on the far left of the unit. -
Page 7: Operation
Synchronizer. Typically the reference signal is Color Black or Color Bars fed from a master sync generator (such as the BrightEye 55). OPERATION Control and operation of the BrightEye 93 is performed from the front panel or remotely from a networked PC with the BrightEye PC or BrightEye Mac Control application. -
Page 8: Adjusting Parameters From The Front Panel
BrightEye 93 HD Cross Converter Input Illuminates green when a valid HD video signal is detected on the HD SDI In video input BNC. Ref (Reference) illuminates when a valid composite or Tri-Level Sync reference is detected on the Ref input BNC. -
Page 9: Using The Brighteye Control Application
PC/Mac Control application software is included on CD that came with your unit, or the application can be downloaded here: http://www.ensembledesigns.com/support/brighteye-support/ If the BrightEye 93 is connected to a computer running this software, the following menus are available for controlling and monitoring the unit. Video In •... - Page 10 BrightEye 93 HD Cross Converter Mode • HD Cross – indicates the mode in which the unit is running (Anamorphic, Manual). The mode is determined by the output selection made in the Format menu. • Format – use this control to set the desired output format (1080i, 720p, 1080p, 1080sF).
- Page 11 Make adjustments by clicking and dragging the slider controls, by using the up and down arrow buttons, or by entering a value directly into the field. Click the Default buttons to return settings to their default values. BrightEye 93 - Page 11...
- Page 12 BrightEye 93 HD Cross Converter Config • Noise Reduce – adjusts the amount of noise reduction on the output signal from Off, Low, Medium, or High. The typical setting for this parameter is Off or Low. • Detail – adjusts the amount of picture detail enhancement on the output from Off, Low, Medium, or High.
- Page 13 Make adjustments by clicking and dragging the slider controls, by using the up and down arrow buttons, or by entering a value directly into the field. Click the Default buttons to return settings to their default values. BrightEye 93 - Page 13...
- Page 14 HDMI Non-Compat, HDMI Native, HDMI Compatible). Status information comes from the display itself. Some displays may not work with the BrightEye 93, depending on the formats that the display supports. For best results, use a display that is HDMI Native.
- Page 15 BrightEye 93 BrightEye 93 - Page 15...
- Page 16 BrightEye 93 HD Cross Converter Audio Out • Mon Assign – choose the audio pair that you want to send to the Audio Monitor headphone jack. Choices are: Chan 1/2, Chan 3/4, Chan 5/6, Chan 7/8, Chan 9/10, Chan 11/12, Chan 13/14, Chan 15/16.
-
Page 17: Warranty And Factory Service
WARRANTY AND FACTORY SERVICE Warranty Ensemble Designs, Inc. warrants this product to be free from defect in material and workmanship for a period of 5 years from the date of delivery. During this 5 year warranty period, Ensemble Designs, Inc. will repair any defective units at Ensemble’s expense if the unit should be determined to be defective after con-... -
Page 18: Specifications
BrightEye 93 HD Cross Converter Specifications Serial Digital Input Number Signal Type HD Serial Digital 1.485 Gb/s SMPTE 274M, 292M, 296M Impedance 75 Ω Return Loss >15dB Max Cable Length 100 meters for 1.485Gb/s HD Automatic Input Cable Equalization Reference Input... -
Page 19: Brighteye Power Supply Information
BERKMT BrightEye Rack Mount. This holds 6 single high BrightEyes or 3 double high BrightEyes, or a combination. BEBP BrightEye Blank Panel. Single high, for empty slots in Rack Mount. BEAC Analog Audio Breakout Cable. BrightEye 93 - Page 19... - Page 20 BrightEye 93 HD Cross Converter GLOSSARY AES/EBU The digital audio standard defined as a joint effort of the Audio Engineering Society and the European Broadcast Union. AES/EBU or AES3 describes a serial bitstream that carries two audio channels, thus an AES stream is a stereo pair.
- Page 21 The resultant artifacts of dot crawl (also referred to as chroma crawl) are only the most obvious result. Composite television is the most BrightEye 93 - Page 21...
- Page 22 BrightEye 93 HD Cross Converter commonly used format throughout the world, either as PAL or NTSC. It is also referred to as Encoded video. Color Difference Color Difference systems take advantage of the details of human vision. We have more acuity in our black and white vision than we do in color. This means that we need only the luminance information to be carried at full bandwidth, we can scrimp on the color channels.
- Page 23 HDMI is a bit serial interface that carries the video content in digital component form over multiple twisted-pairs. HDMI is closely related to the DVI interface for desktop computers and their displays. BrightEye 93 - Page 23...
- Page 24 BrightEye 93 HD Cross Converter The International Electrotechnical Commission provides a wide range of worldwide standards. They have provided standardization of the AC power connection to products by means of an IEC line cord. The connection point uses three flat contact blades in a triangular arrangement, set in a rectangular connector.
- Page 25 And secondly, and most importantly, an optical interface can carry a signal for many kilometers or miles without any degradation or loss in the recovered signal. Copper is barely useful at distances of just 1000 feet. BrightEye 93 - Page 25...
- Page 26 BrightEye 93 HD Cross Converter Oversampling A technique to perform digital sampling at a multiple of the required sample rate. This has the advantage of raising the Nyquist Rate (the maximum frequency which can be reproduced by a given sample rate) much higher than the desired passband.
- Page 27 This allowed it to be recovered in rewind and fast forward when the picture itself could not. Timecode continues to be useful today and is carried in the vertical interval as VITC, and as a digital packet as DVITC. Timecode is the true metadata. BrightEye 93 - Page 27...
- Page 28 BrightEye 93 HD Cross Converter Tri-Level Sync For many, many years, television systems used composite black as a genlock reference source. This was a natural evolution from analog systems to digital implementations. With the advent of High Definition television, with even higher data rates and tighter jitter requirements, problems with this legacy genlock signal surfaced.
- Page 29 Cr (R-Y) and Cb (B-Y). Y/Pr/Pb In analog component video, the image is carried in three components. The luminance is Y, the R-Y color difference signal is Pr, and the B-Y color difference signal is Pb. BrightEye 93 - Page 29...
