Datavideo TLM-700K Instruction Manual

7” 4k lcd monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

7" 4K
LCD Monitor

Advertisement

Table of Contents
loading

Related Manuals for Datavideo TLM-700K

Summary of Contents for Datavideo TLM-700K

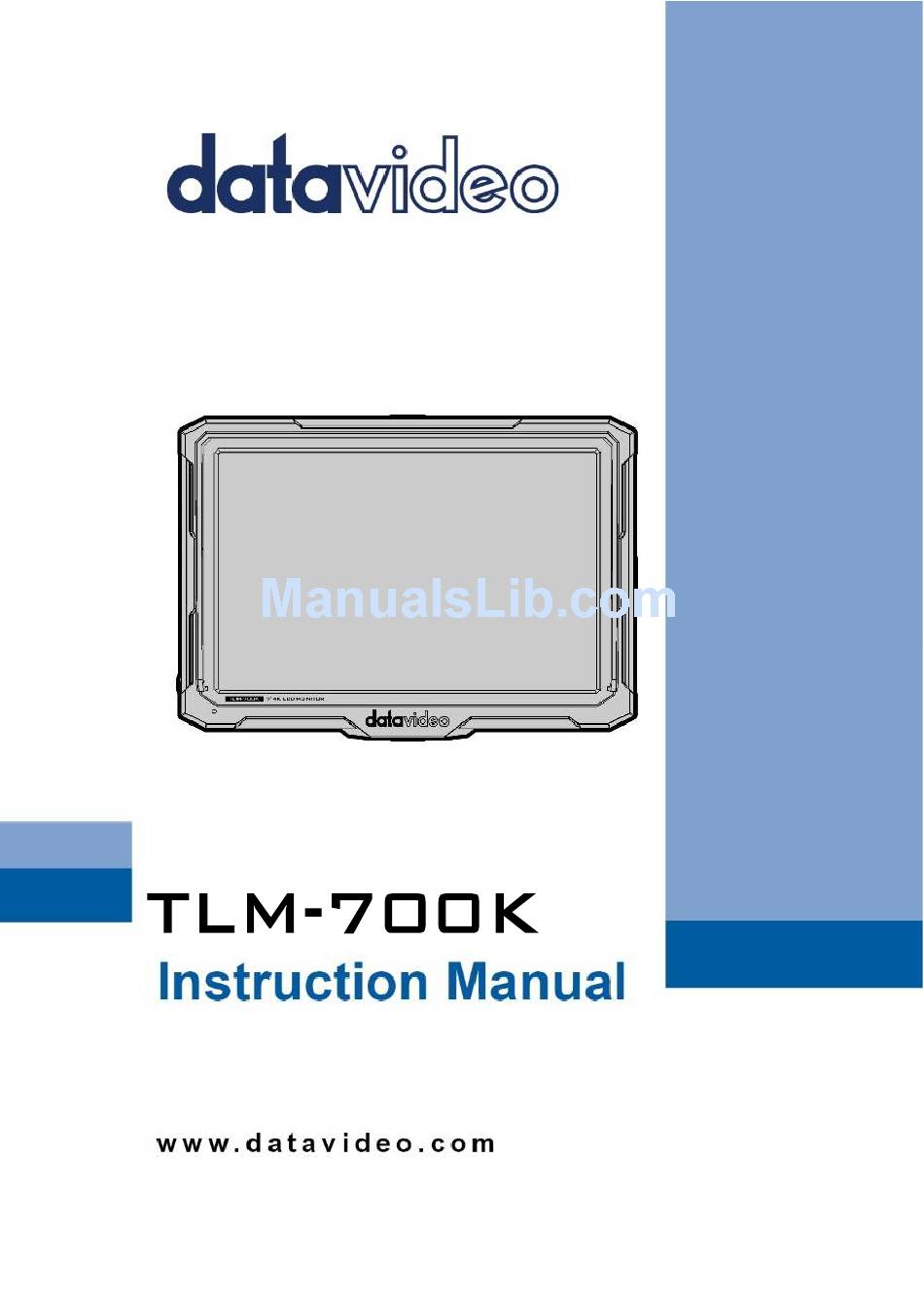

  • Page 1 7” 4K LCD Monitor...

  • Page 2: Table Of Contents

    WARRANTY ..............4 ........... 4 TANDARD ARRANTY ..........5 HREE ARRANTY DISPOSAL ..............6 INTRODUCTION ............. 7 TLM-700K M ..........8 ODEL ......9 OMPATIBLE ESOLUTIONS AND ORMATS CONNECTIONS AND CONTROLS ......11 OSD MENU ............15 DIMENSIONS ............22 FIRMWARE UPGRADE PROCEDURE ......
  • Page 3 Datavideo Technologies is not responsible for any omissions or errors, or for any subsequent loss or damage caused by using the information contained within this manual.

  • Page 4: Fcc Compliance Statement

    This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company.

  • Page 5: Warranty

    When the product exhibits a distinct change in performance, indicating a need for service. Warranty Standard Warranty Datavideo equipment is guaranteed against any manufacturing defects for  one year from the date of purchase. The original purchase invoice or other documentary evidence should be ...

  • Page 6: Three Year Warranty

    Non-PCIe Card and third party provided PC components are covered for 1 year. The three-year warranty must be registered on Datavideo's official website  or with your local Datavideo office or one of its authorized distributors within 30 days of purchase.

  • Page 7: Disposal

    Waste Electrical and Electronic Equipment. For more detailed information about the recycling of this product, please contact your local Datavideo office or your local recycling centre.

  • Page 8: Introduction

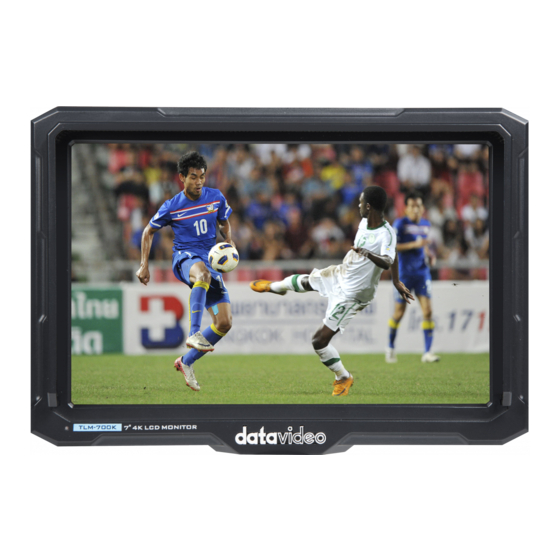

    1. Introduction The Datavideo TLM-700K 7” 4K LCD Monitor features 4K inputs at the 7” screen size. It’s UHD 4K resolution is compatible with 16:9 Aspect Ratio LCD field monitor which presents its images on a Full HD 1920x1200 LCD panel.

  • Page 9: Tlm-700K Model Type

    TLM-700K Model Type Model TLM-700K Image System Optimized for use with the professional DSLRs & Camcorders...

  • Page 10: Compatible Resolutions And Formats

    Compatible Resolutions and Formats TLM-700K Interface Format HDMI 4096×2160p @24 Support 3840×2160p @23 Support 3840×2160p @24 Support 3840×2160p @25 Support 3840×2160p @29 Support 3840×2160p @30 Support 2048×1080p @50 Support 2048×1080p @59.94 Support 2048×1080p @60 Support 1920×1080p @59.94 Support 1920×1080p @60 Support 1920×1080p @50...
  • Page 11 1920×1080p @23.98 Support 1920×1080p @24 Support 1920×1080i @59.94 Support 1920×1080i @60 Support 1920×1080i @50 Support 1280×720p @59.94 Support 1280×720p @60 Support 1280×720p @50 Support 1280×720p @23.98 Support 1280×720p @24 Support 1280×720p @25 Support 1280×720p @29.97 Support 1280×720p @30 Support 720×480i @59.94 Support 720×480i @60 Support...

  • Page 12: Connections And Controls

    Connections and Controls Item Buttons Description Menu Function: press this button to activate the OSD menu which is displayed on the screen. MENU Button Shortcut Functions: Press the left/right button, the volume adjusting bar will appear at the bottom of the screen. At this time, press the menu button to select brightness,...
  • Page 13 contrast, saturation, tint, sharpness and Exit. Confirm Function: 1. Press the menu button once to show the OSD menu. 2. After the OSD menu is shown, press the menu button once to highlight the menu option and it is ready to navigate the OSD menu by using the left/right button.
  • Page 14 Press this button to go back to previous step EXIT Button or to exit the OSD menu. Long press any F1 key for 3-5 seconds to pop-up a shortcut menu directly. After the pop-up shortcut menu is shown, press the F1 button to set the value or mode of that shortcut option, then press EXIT to exit.
  • Page 15 Note: If an HDMI source with the HDCP Through protection mechanism is the source to input into the TLM-700K, this input source can be seen only on TLM-700K monitor and can not be looped out to any external monitor. HDMI Video and Audio input from an HDMI device.

  • Page 16: Osd Menu

    Press the MENU button to select an option or confirm a value. The six main categories of the TLM-700K OSD menu is shown as follows. 1. Picture 2. Marker...
  • Page 17 3. Function 4. Waveform...
  • Page 18 5. Audio 6. System...
  • Page 19 The sub menus and details of the setting values are shown as follows. Menu Sub-menu Value Brightness 0~100 Contrast 0~100 Picture Saturation 0~100 Tint 0~100 Sharpness 0~100...
  • Page 20 Color Temp. 6500K/7500K/9300K/User Red Gain 0~255 Green Gain 0~255 Blue Gain 0~255 Red Offset 0~511 Green Offset 0~511 Blue Offset 0~511 Center Marker Off/On Aspect Marker Off/16:9/1.85:1/2.35:1/4:3/3:2 Off/95%/93%/90%/88%/85%/80 Safety Marker Marker Marker Color Red/Green/Blue/White/Black Grid Off/On Marker Mat. 0ff/1/2/3/4/5/6/7 Thickness 2/4/6/8 Function Scan...
  • Page 21 Aspect Full/16:9/1.85:1/2.35:1/4:3/3:2 Underscan Off/On Check Field Off/Mono/Red/Green/Blue Zoom ×1.5/×2/×3/×4 Freeze Off/On DSLR 0ff/5D2/5D3 Peaking Off/On Peaking Color Red/Green/Blue/White/Black Peaking Level 0~100 Waveform False Color Off/On Exposure Off/On Exposure Level 0~100 Histogram Off/On Volume 0~100 Audio Level Meter Off/On System Language English/中文...
  • Page 22 OSD Timer 10S/20s/30s Image Flip Off/H/V/ H/V Back Light 0~100 F1 Configuration All Functions Format Information Off/On Reset Off/On CPU Version V1.0 FPGA Version V1.0 *The parameters such as Red Gain, Blue Gain, Green Gain, Red Offset, Green Offset and Blue Offset can be activated and shown only when the Color Temp.

  • Page 23: Dimensions

    4. Dimensions...
  • Page 24 All measurements in millimetres (mm)

  • Page 25: Firmware Upgrade Procedure

    5. Firmware Upgrade Procedure The TLM-700K provides a mini USB firmware upgrade interface for users to upgrade the latest CPU and FPGA firmware. Requirement USB female to mini USB transfer cable A USB thumb drive Please follow following steps for upgrading the CPU and FPGA firmware.
  • Page 26 It will cost about 20 seconds to finish the firmware update procedure. Step 5. After the firmware update is finished, the TLM-700K will be turned off automatically. After that, you can check that whether the version number that is shown in the Version option on the main OSD...
  • Page 27 USB thumb drive. Step 3. Please long-press the EXIT button to enter the engineering mode when the TLM-700K is booting. Step 4. Please select the option “FPGA Update” and then set this option to “On” and then the CPU firmware upgrade procedure will start automatically.

  • Page 28: Specifications

    6. Specifications Size 7 inch Resolution 1920 × 1200 Contrast Ratio 1000:1 View Angle(Typ.) 170°/ 170°(H/V) Aspect Ratio 16:10 Brightness 450cd/m² Video Input HDMI × 1 Video Output HDMI × 1 4096x2160 (24p) 3840x2160 (23p/24p/25p/29p/30p) 2048x1080 (50p/59.94p/60p) 19201080(23.98p/24p/25p/29.97p/30p/50p/59.94 HDMI Signal /60p/50i/59.94i/60i) Format 1280×720...
  • Page 29 Audio Input Embedded Audio Analog stereo (Phone Jack) Audio Output Speaker x 1 (2W, Mono) Power DC 7V ~24V Power Consumption ≤12W Operation Temperature -20°C ~ 60°C Storage Temperature -30°C ~ 70°C Dimension (mm) 182.1×124×20.5 Weight 0.3Kg...

  • Page 30: Accessories

    Accessories Accessory Quantity Folding sun shade cover 1 Piece HDMI A/C cable 1 Piece Battery plate(F970) 1 Piece Hot shoe mount 1 Piece 12V adapter 1 Piece...
  • Page 31 Note...

  • Page 32: Service And Support

    Jun.-20.2018 Ver:E2...
